DACs — FiiO QX13

Description, images, technical data and specifications

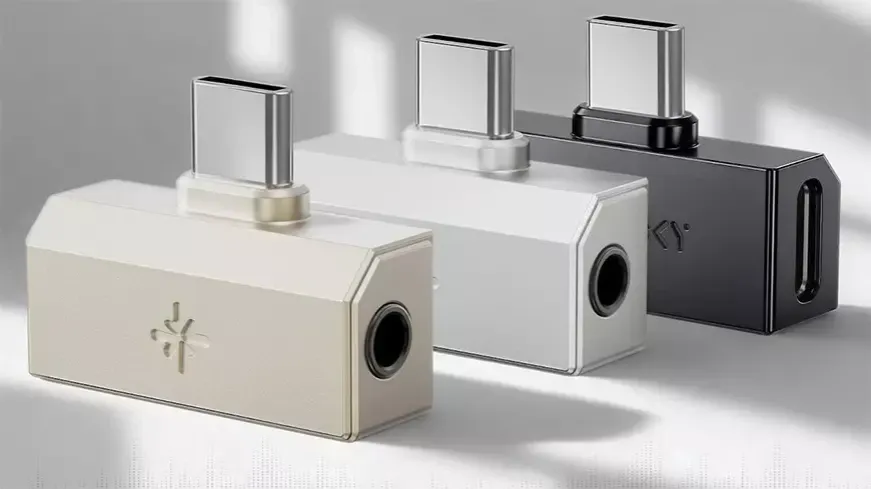

FiiO QX13
Image source — © FiiO

The QX13 uses low-noise ES9312 stabilizers and four integrated INA1620 chips to minimize interference between channels. Two OPA1692 amplifiers are responsible for stable dynamics even under heavy load. Supports PCM up to 32 bit/768 kHz, DSD512 and full MQA decoding.

Specifications

  • Model name

    QX13

  • Conversion type

    N/A

  • Engine

    ESS Sabre Pro ES9027PRO

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD512

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    124

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.0004

  • Dimensions (mm)

    64.2 x 30.7 x 13

  • Weight (kg)

    0.033

  • Official link

    https://fiio.com/QX13

FiiO K15

More components

  • K15

    DACs

    FiiO K15

    Digital-to-analog conversion is implemented on two AK4497S chips from the Velvet Sound series by the Japanese company Asahi Kasei. The dual mono configuration provides a fully symmetrical and differential analog path. The analog and digital parts of the circuit, as well as power supplies, are located on separate boards.

  • K17

    DACs

    FiiO K17

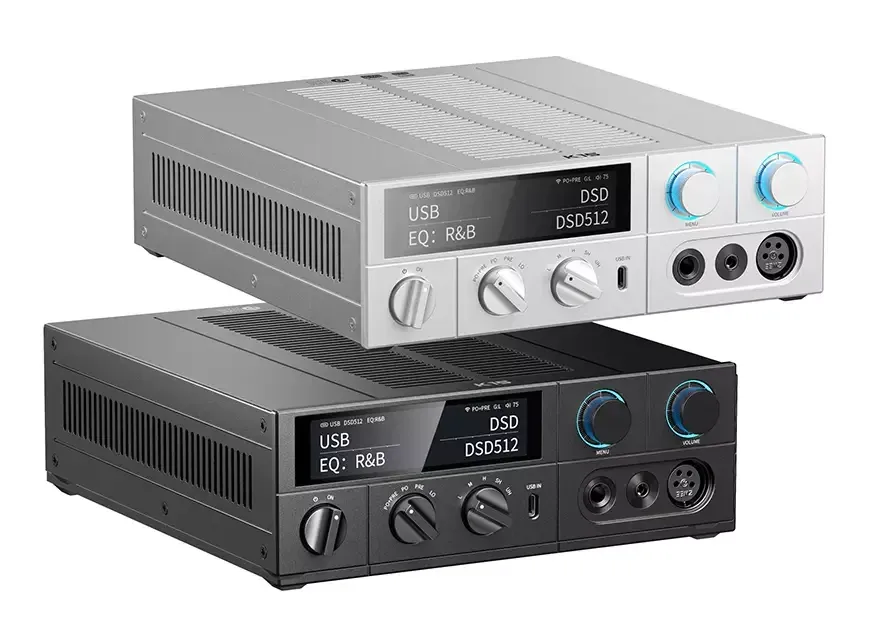

    Desktop DAC and Headphone Amplifier FiiO K17 offers Flagship AKM AK4191 + AK4499EX x 2 DAC, 31-band high-precision lossless PEQ, discrete class AB transistor current amplification headphone amplifier and streaming functionality.
