DACs — PS Audio DirectStream DAC MK2

Description, images, technical data and specifications

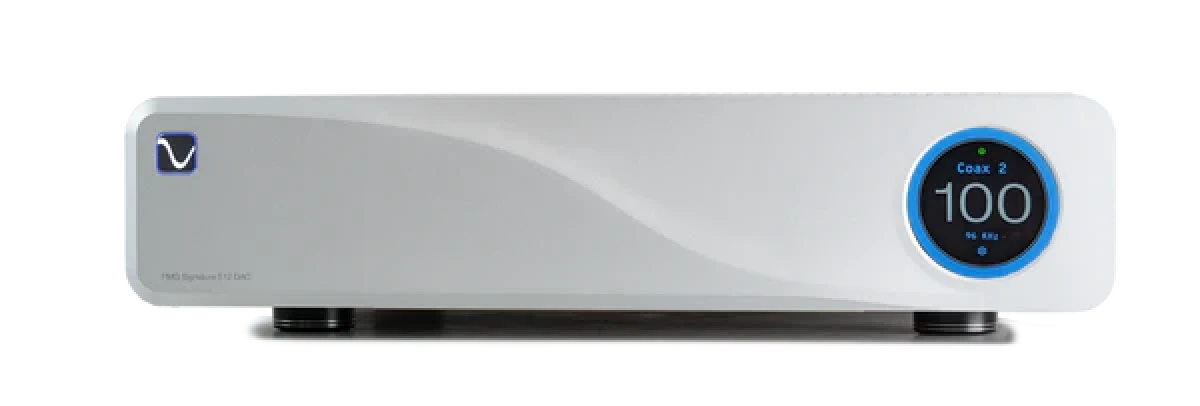

PS Audio DirectStream DAC MK2
Image source — © PS Audio

The Direct Stream DAC MK2 model uses an FPGA (Programmable Gate array) with original software developed by PS Audio, rather than standard chips. The FPGA-based solution allows you to customize the software to ensure high-quality sound. In addition, the software can be updated by the user, which opens up the possibility of a software upgrade of the component in the future.

Specifications

  • Model name

    DirectStream DAC MK2

  • Conversion type

    N/A

  • Engine

    N/A

  • DSD compatability

    Yes

  • Parameters

    up to 24 bit / 352.8 kHz and DSD256

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    200

  • Output Impedance (single-ended) (Ω)

    100

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    <0.1

  • Dimensions (mm)

    360 x 430 x 100

  • Weight (kg)

    13.6

  • Official link

    https://www.psaudio.com/products/directstream-dac-mk2
