DACs — Audio Note DAC 5

Name: DAC 5
Brand: Audio Note
Rating: 100 (1 reviews)

Description, images, technical data and specifications

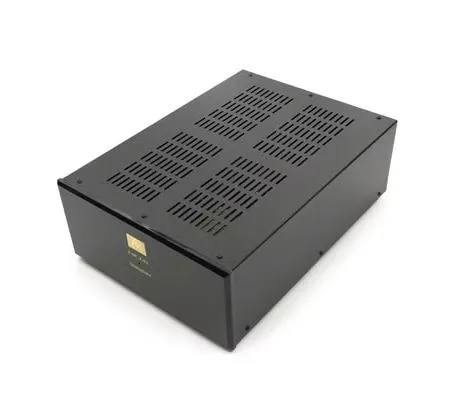

Audio Note DAC 5
Image source — © Audio Note

The Audio Note DAC 5 Signature is the most unique digital product available today. It uses the most unusual and innovative digital circuit on the market, combined with some of the best components, materials, and power supplies. The Audio Note DAC 5 Signature features an updated version of the M6 Line preamp output stage with a pair of 5814a (ECC82/12AU7a/6189) dual triodes and a Telefunken 6463.

Specifications

Model name
DAC 5
Conversion type
N/A
Engine
Ananloue Devices AD1865N
DSD compatability
N/A
Parameters
up to 18 bit / 96 kHz
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Gain (dBu)
N/A
Output Level (balanced) (V)
3.2
Output Level (single-ended) (V)
3.2
Input Impedance (balanced) (Ω)
110
Input Impedance (single-ended) (Ω)
75
Output Impedance (balanced) (Ω)
600
Output Impedance (single-ended) (Ω)
600
Analog outputs
N/A
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (% at 22 kHz)
N/A
Dimensions (mm)
145 x 450 x 425
Weight (kg)
22
Official link
https://www.audionote.co.uk/dac5

Audio Note DAC 4.1x

Audio Note Fifth Element/Force

More components

DACs

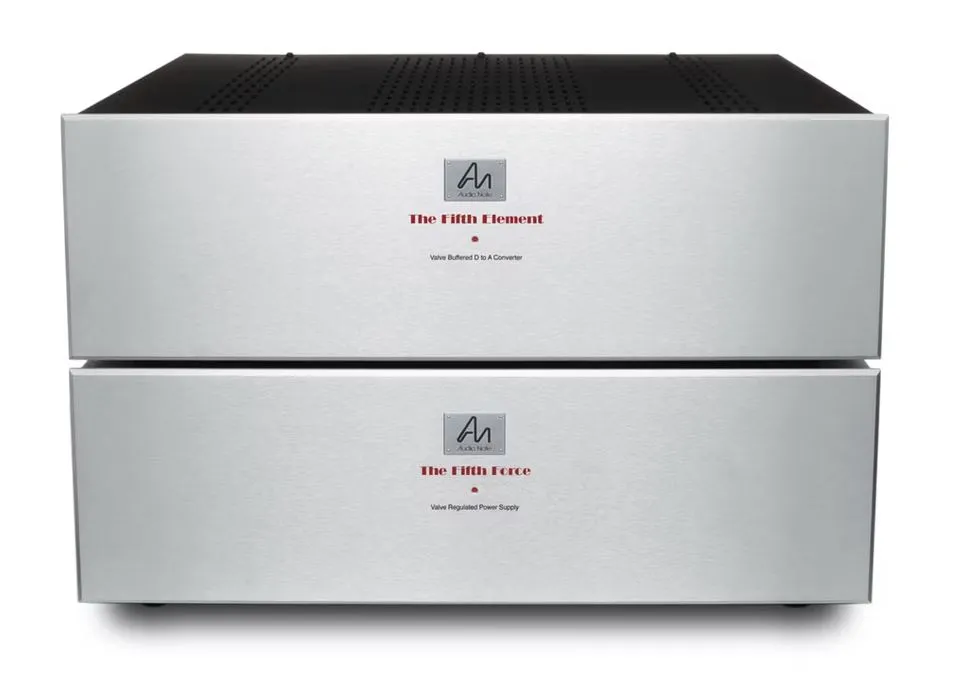

Audio Note Fifth Element/Force
The Audio Note Fifth Element digital-to-analog converter is without a doubt the best DAC we have ever produced. As expected, we did not use third-party developments in the design of the circuit or the components used, and this is a full-fledged Audio Note Level 5 product.
DACs

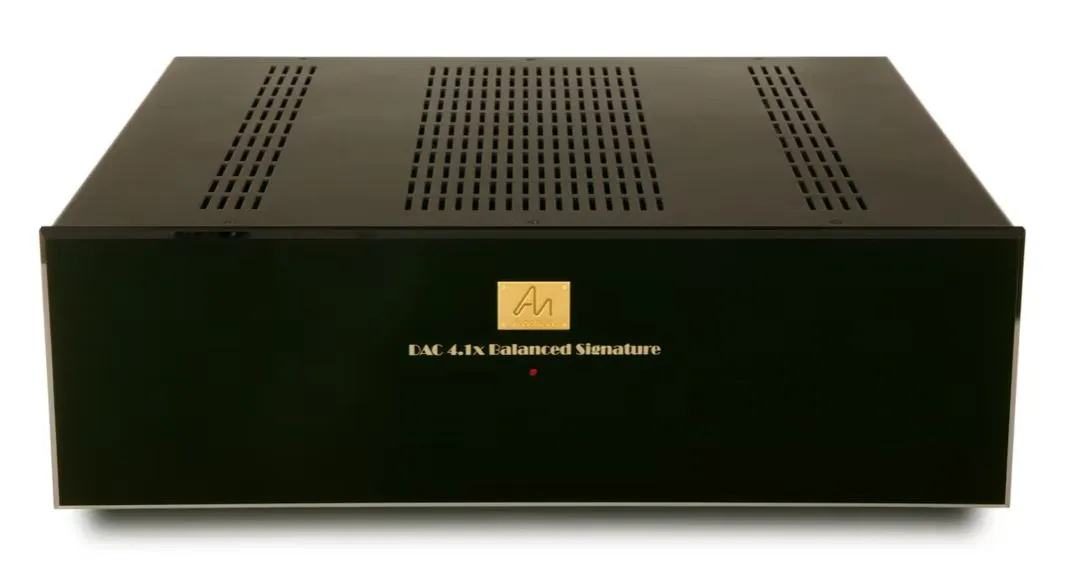

Audio Note DAC 4.1x
CD-4.1x is a completely new CD player that has no analogues in the audio industry. It uses a Two/II CD transport with an upgraded DAC from the CD-2.1x Mk.II, on the digital printed circuit board there are Audio Note tantalum resistors and Black Gate capacitors, on the output stage there are Audio Note capacitors made of copper foil.
DACs

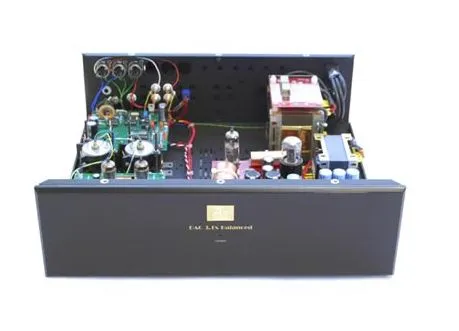

Audio Note DAC 3.1x/II Balanced
