Vincent DAC-1MK
Image source — © Vincent

The main innovation is the replacement of the DAC chip with the BurrBrown PCM1796, which was used in the DAC-1, with the ESS Sabre ES9038. This made it possible to process digital PCM streams with a resolution up to 32 bits/384 kHz and DSD up to DSD256.

Specifications

  • Model name

    DAC-1MK

  • Conversion type

    N/A

  • Engine

    ESS Sabre ES9038

  • DSD compatability

    Yes

  • Parameters

    up to 32 Bit / 384 kHz and DSD256

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    2.5

  • Output Level (single-ended) (V)

    2.5

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    >95

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    <0.0004

  • Dimensions (mm)

    430 x 79 x 343

  • Weight (kg)

    5.5

  • Official link

    https://www.vincent-tac.de/en/product-lines/powerline/dac-1mk.html

Vincent DAC-700

More components

  • DAC-700

    DACs

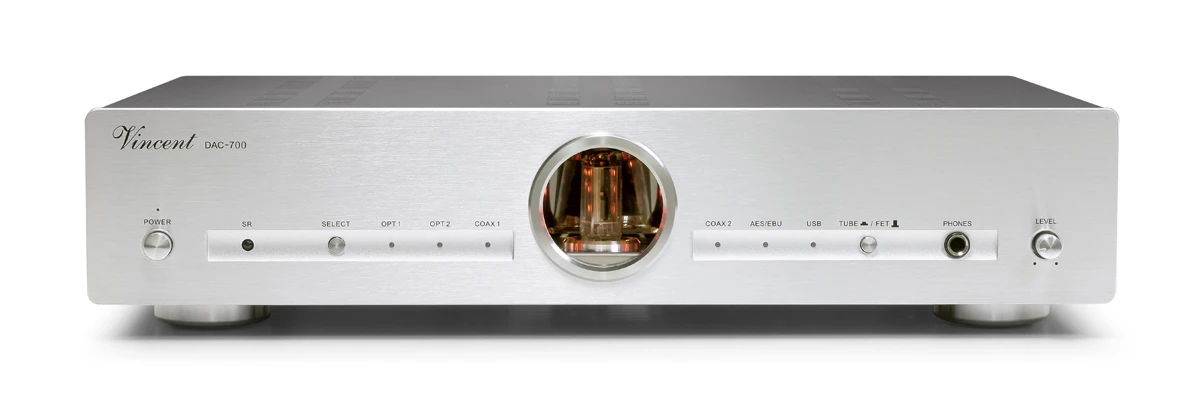

    Vincent DAC-700
