Floorstanding loudspeakers — Avalon Accoustics Tesseract

Description, images, technical data and specifications

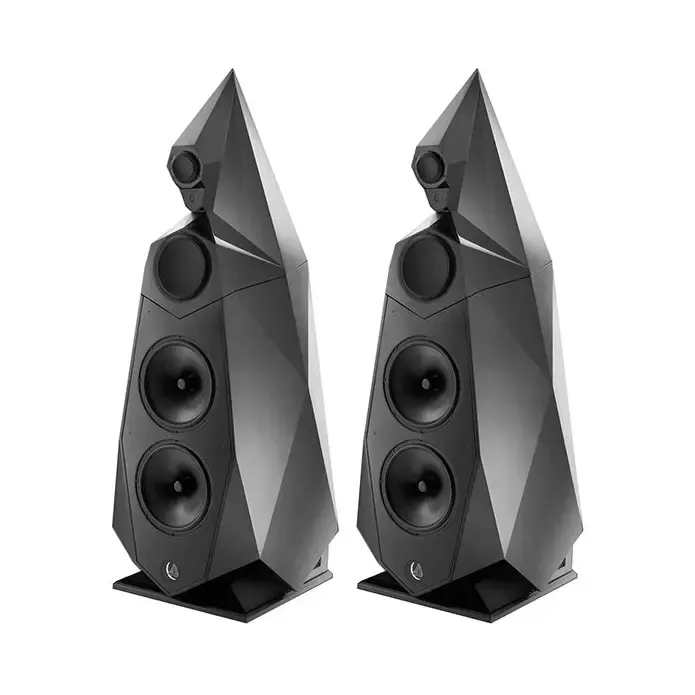

Avalon Accoustics Tesseract
Image source — © Avalon Accoustics

Flagship 3-way, floorstanding loudspeaker with a unique 0.78" diamond high-frequency speaker (Diamond Underhung Voice-Coil), 4.5" ceramic midrange speaker (Ceramic Underhung Voice-Coil), 11" Ceramic/Honeycomb Underhung Voice-Coil midbass speaker and 4 long-range, low-frequency 15" speakers (Low Q High Force Factor Sub-Woofers).

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Tesseract

  • Frequency Response low +/- 3dB (Hz)

    16

  • Frequency Response high +/- 3dB (Hz)

    100 000

  • Sensitivity (dB at 1 W/1m)

    93.5

  • Impedance (Ohms)

    6

  • Power amplifier requirements (W)

    15 - 500

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    221 × 74 × 82

  • Weight (kg)

    375

  • Official link

    https://www.avalonacoustics.com/models/signature/tesseract/

Avalon Accoustics SAGA Signature

Avalon Accoustics Tesseract Signature

More components

  • Tesseract Signature

    Floorstanding loudspeakers

    Avalon Accoustics Tesseract Signature

    The word "tesseract" was coined by the English mathematician Charles Howard Hinton. As he believed, the three-dimensional world in which we live divides the four-dimensional world, inaccessible to our perception, into two parts: Ana (the upper world) and Kata (the lower). So a concrete slab divides a house into two floors. So Neil Patel (chief developer of Avalon Acoustics) divided his flagship model into two sections - upper and lower. The system is supplied in four boxes with a total weight of 908 kg (the weight of each speaker assembled without packaging is 375 kg). The total height of the acoustic systems is 2.21 m. The purpose of the division is to minimize the influence of the powerful LF section on the MF and HF, to obtain a more rigid and stable design, and, finally, to make the product more transportable.

  • SAGA Signature

    Floorstanding loudspeakers

    Avalon Accoustics SAGA Signature

    The speakers feature a 1-inch high–frequency driver (Carbon/Glass Neodymium), a 7-inch midrange driver (Ceramic – Concave radial magnetic Ceramic), and two 13-inch low-frequency drivers (Nomex-Kevlar Generation II Composite).

  • Iris Signature

    Floorstanding loudspeakers

    Avalon Accoustics Iris Signature

    Three-way, floorstanding loudspeaker, treble - 1" (Diamond - Diamond Diaphragm, concave dome), midrange - 7" (Ceramic - Concave Ceramic Dome), woofer - 2x13" (NomexKevlar Composite), each driver is individually tested and selected to ensure optimal performance, proprietary drivers are used in all drivers patented neodymium magnetic technology.

  • PM4

    Floorstanding loudspeakers

    Avalon Accoustics PM4

    The internal structure of the RM4 housing is a unique combination of sealed chambers and several labyrinths. Using our more than 30 years of experience in the field of resonance elimination and control, we have created a special development for the RM4 that includes a multilayer platform with limited damping for the main baffle, as well as carefully tuned cavity resonances to enhance and control its own modes.

  • PM3.2

    Floorstanding loudspeakers

    Avalon Accoustics PM3.2

    The model is equipped with an inch tweeter with a convex beryllium dome, three 1/2-inch midrange neodymium drivers and a pair of 9-inch woofers.
