Floorstanding loudspeakers — PS Audio Aspen FR20

Description, images, technical data and specifications

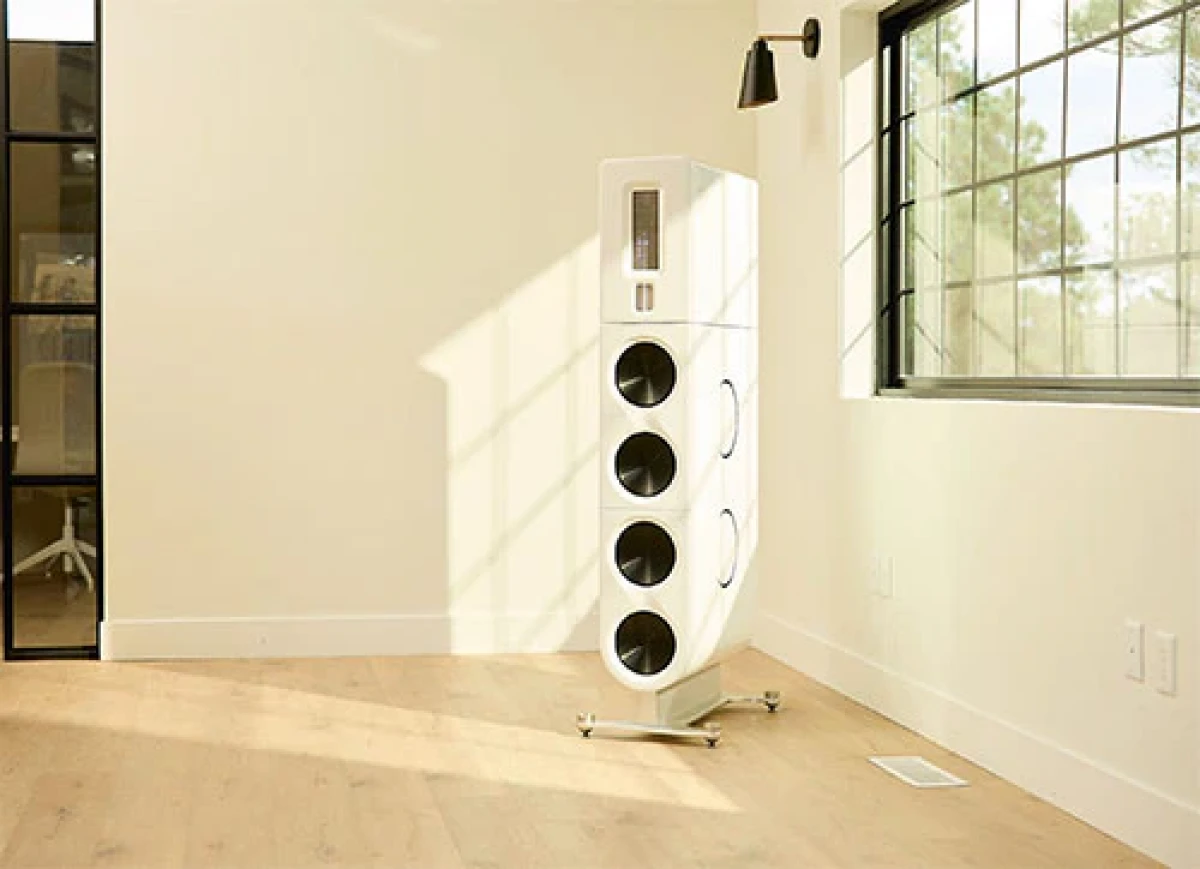

PS Audio Aspen FR20
Image source — © PS Audio

The acoustics have a three-way design, two passive drivers with a diameter of 10 inches on the side panels are used as acoustic decoration. The high frequencies are assigned to a 2.5-inch planar driver with a diaphragm made of Tenax material, and in the middle there is another planar driver with a diaphragm made of the same material, but already 10 inches in size.

Specifications

  • Model name

    Aspen FR20

  • Frequency Response low +/- 3dB (Hz)

    23

  • Frequency Response high +/- 3dB (Hz)

    20 000

  • Sensitivity (dB at 1 W/1m)

    87

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    50 - 300

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    128.27 × 40.6 × 47.6

  • Weight (kg)

    60.3

  • Official link

    https://www.psaudio.com/products/aspen-fr20-loudspeaker/
