Bookshelf Speakers — Sonoro ORCHESTRA SLIM

Description, images, technical data and specifications

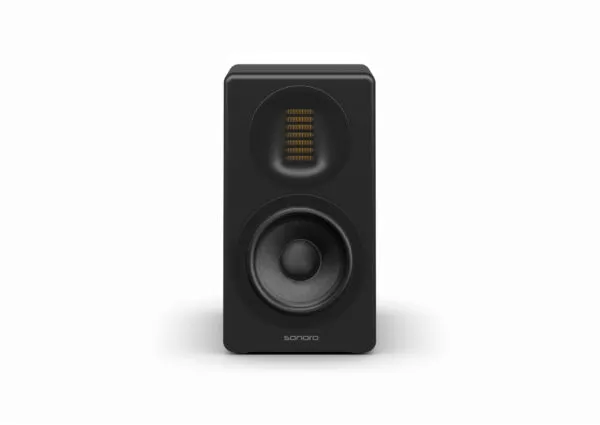

Sonoro ORCHESTRA SLIM
Image source — © Sonoro

The sonoro ORCHESTRA SLIM is a compact two—way shelf speaker system with a bass reflex, developed in Germany. They are equipped with a 5.25" midrange/woofer with a paper diffuser and an Air Motion Transformer (AMT) tweeter in the waveguide, which provides very detailed and transparent sound, especially in the upper range.

Specifications

  • Model name

    ORCHESTRA SLIM

  • Frequency Response low +/- 3dB (Hz)

    45

  • Frequency Response high +/- 3dB (Hz)

    32 000

  • Sensitivity (dB at 1 W/1m)

    87

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    50 - 140

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    18.0 x 25.0 x 32.7

  • Weight (kg)

    7.2

  • Official link

    https://sonoro.com/en/product/orchestra-slim/

Sonoro ORCHESTRA Slim (Gen.2)

Sonoro ORCHESTRA

More components

  • ORCHESTRA (Gen.2)

    Bookshelf Speakers

    Sonoro ORCHESTRA (Gen.2)

    Like the first-generation Orchestra, the new models feature an AMT ribbon tweeter. In the second generation of Orchestra,/The woofer range is assigned to a speaker with a conical diffuser with a diameter of 15 cm, made of paper, and a cast aluminum basket. The compact version of the Orchestra Slim uses a speaker with a 13 cm diameter diffuser made of the same material.

  • ORCHESTRA

    Bookshelf Speakers

    Sonoro ORCHESTRA

    Sonoro ORCHESTRA is a German two—way shelf speaker with a bass reflex, designed for clear, detailed and rich sound even in a relatively compact package. An Air Motion Transformer ribbon tweeter in a waveguide is used as a tweeter, and a 6-inch paper midrange/woofer with a double magnet and a molded basket is responsible for the bass and middle.

  • ORCHESTRA Slim (Gen.2)

    Bookshelf Speakers

    Sonoro ORCHESTRA Slim (Gen.2)

    The RF band is serviced by an AMT (Air Motion Transformer) ribbon radiator. The frequency of the crossover section is 2.8 kHz, the nominal resistance is 4 ohms. The woofer works in a bass reflex acoustic design with a round port on the back panel, so it is advisable to place the speakers at a distance from the wall.
