Bookshelf Speakers — Diapason ÀSTERA

Description, images, technical data and specifications

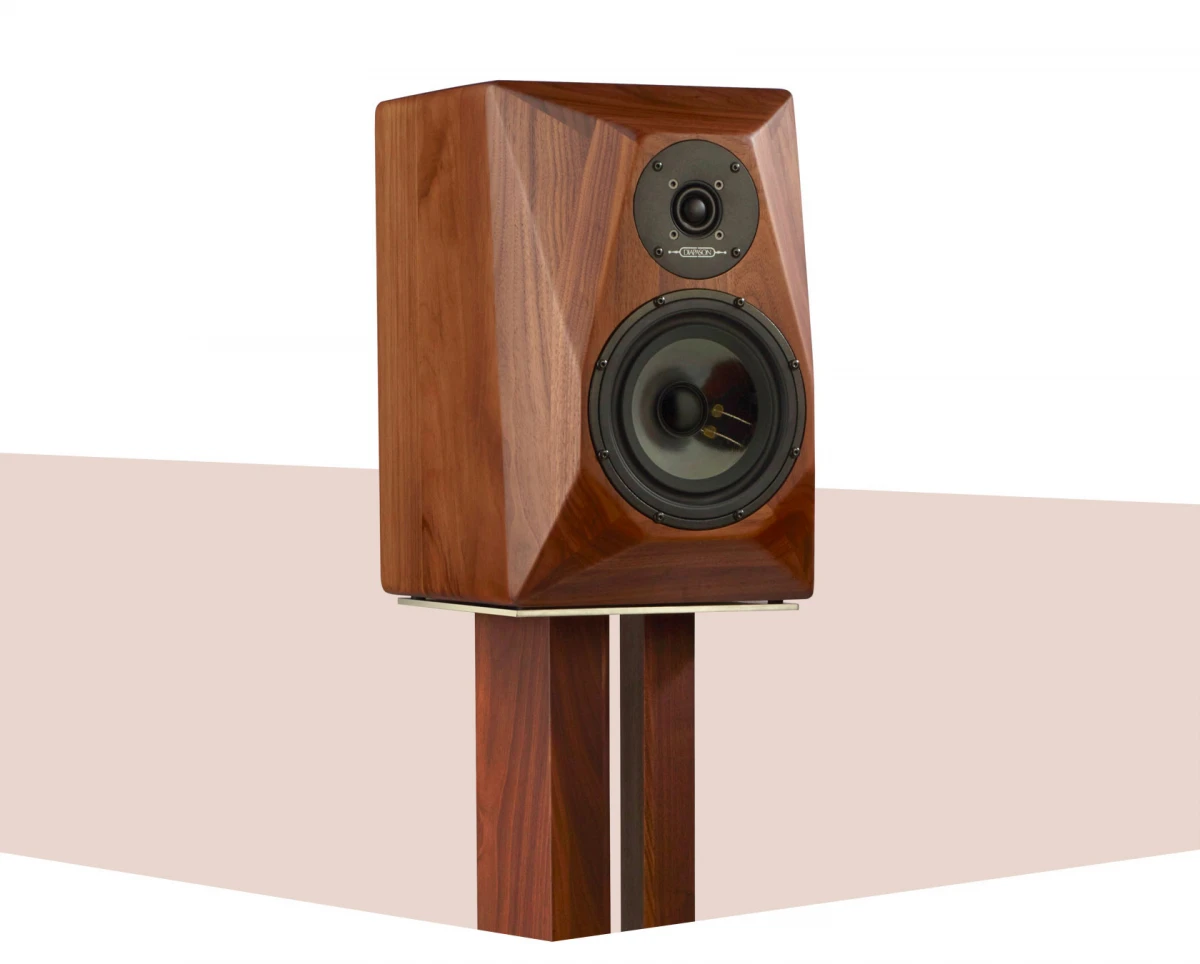

Diapason ÀSTERA
Image source — © Diapason

The RF driver this model has a soft dome with a diameter of 29 mm, an effective Hexadym magnetic system, double damping and ventilation holes in the housing to eliminate the danger of overheating of the sound coil. The woofer is equipped with a 180 mm diffuser made of paper with a special Nextel impregnation, and is mounted in a cast metal basket. The bass is acoustically loaded onto a bass reflex with an outlet on the back panel.

Specifications

  • Model name

    ÀSTERA

  • Frequency Response low +/- 3dB (Hz)

    38

  • Frequency Response high +/- 3dB (Hz)

    20 000

  • Sensitivity (dB at 1 W/1m)

    N/A

  • Impedance (Ohms)

    8

  • Power amplifier requirements (W)

    N/A

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    26.0 x 44.2 x 38.0

  • Weight (kg)

    13

  • Official link
