Burson Audio Soloist Stellar
Image source — © Burson Audio
The Burson Soloist Stellar model is a headphone amplifier with a pre-amp function and is built exclusively on analog signal circuits. The manufacturer has equipped it with one RCA input and one XLR input. The Class A amplification stages are built on four MJE15032 transistors from ON Semiconductor per channel.
Specifications
Model name
Soloist Stellar
Maximum Power, 32 Ohms (mW RMS per channel)
500
Maximum Power, 50 Ohms (mW RMS per channel)
N/A
Maximum Power, 300 Ohms (mW RMS per channel)
50
Maximum Power, 600 Ohms (mW RMS per channel)
N/A
Frequency response low +/- 3dB (Hz)
0
Frequency response high +/- 3dB (Hz)
55 000
Gain (dBu)
N/A
THD (% at 1V RMS, 300 ohms)
0.0005
Signal to Noise Ratio (dB)
105
IMD (%, CCIR, 300 Ohms)
N/A
Crosstalk (dB, 20Hz-20KHz, 300 Ohms)
N/A
Output Impedance (Ohms)
0.5
Dimensions (mm)
210 x 200 x 75
Weight (kg)
5
Official link
More components
Headphones amplifiers

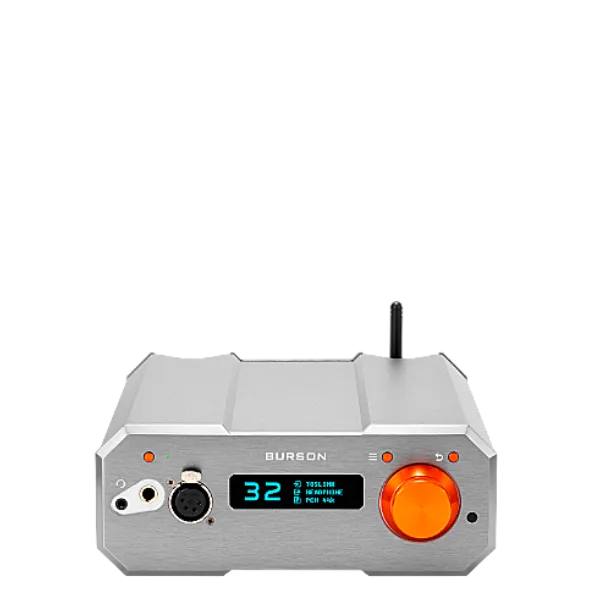

Burson Audio Conductor Stellar
