Preamplifiers — Vitus Audio SL-103
Description, images, technical data and specifications
Vitus Audio SL-103
Image source — © Vitus Audio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
SL-103
Analog inputs (balanced)
3
Analog inputs (single-ended)
2
Analog outputs (balanced)
2
Analog outputs (single-ended)
2
Gain (dBu)
90
Input sensitivity (mV)
8000
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
10 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
80
Output impedance (single-ended) (Ω)
80
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
800 000
Signal to Noise Ratio (SNR, unweighted) (dB)
>110
Total Harmonic Distortion + Noise (THD+N) (%)
<0.01
Dimensions (mm)
135 × 435 × 428
Weight (kg)
25
Official link
More components
Preamplifiers

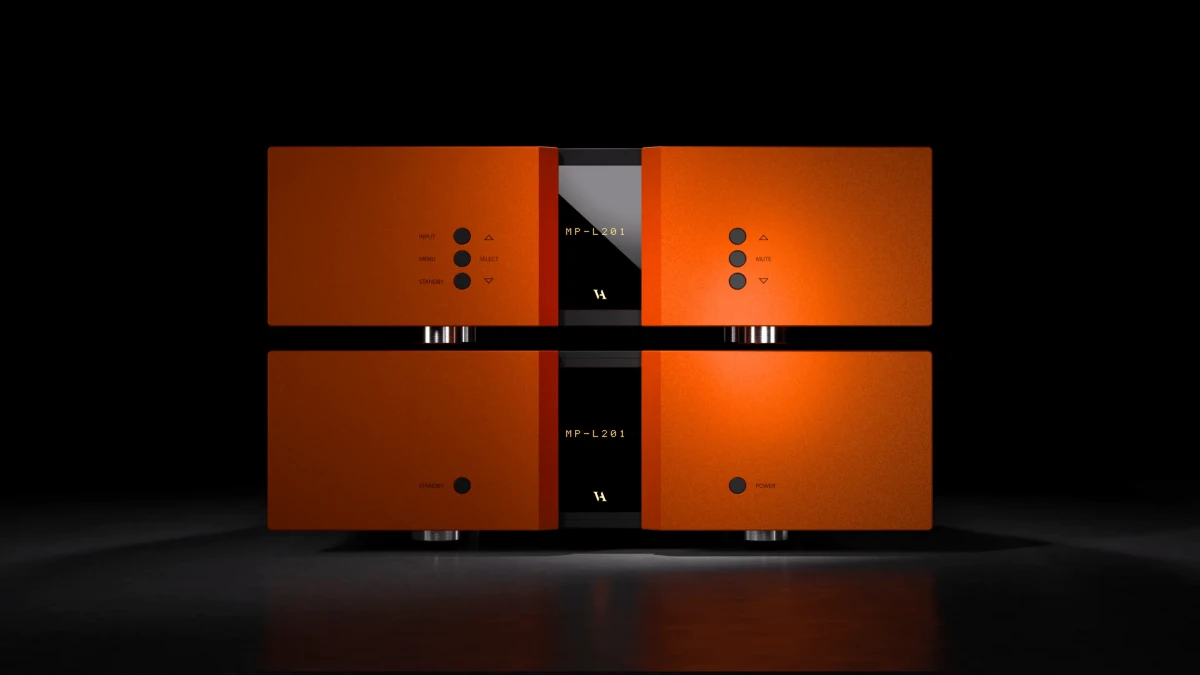

Vitus Audio MP-L201 MK.II
All truly balanced discrete gain stages in the MP-L201 MkII are based on shielded modules, and each module is cast from a special damping material that provides both mechanical resonances and temperature stability. This ensures optimal operating conditions for the circuit. The MP-L201 MkII Line stage gives you incredible control over your sources.
Preamplifiers

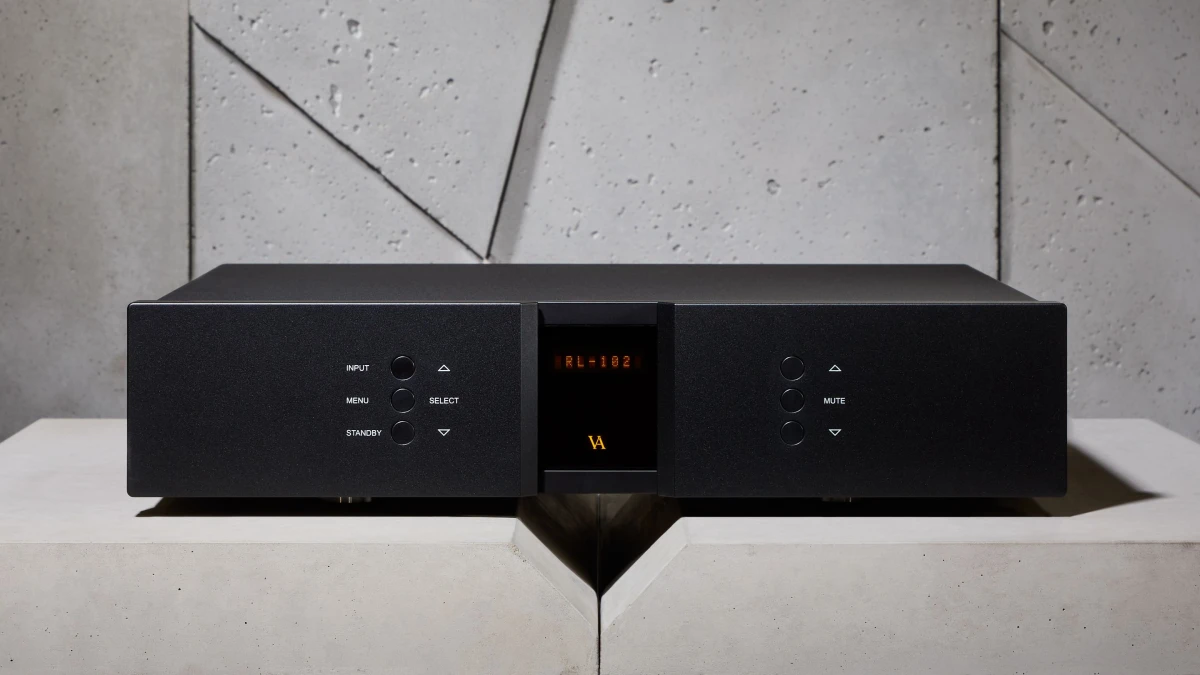

Vitus Audio RL-102
