Preamplifiers — Audionet PRE I G3

Description, images, technical data and specifications

Audionet PRE I G3
Image source — © Audionet

With six inputs and two outputs that can be renamed by the user, bypass mode for integration into a home theater system, two subwoofer outputs, level offset for inputs, headphone output, monitor switching, automatic mains phase recognition and trigger output, two Audionet lines and an additional ground connector. Optionally, the PRE I G3 can be expanded using our high-quality phono preamp board.

Specifications

  • Model name

    PRE I G3

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    5

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    15 000

  • Input impedance (single-ended) (Ω)

    82 000

  • Output impedance (balanced) (Ω)

    47

  • Output impedance (single-ended) (Ω)

    22

  • Maximum output level (balanced) (dBu)

    16

  • Maximum output level (single-ended) (dBu)

    8

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0

  • Frequency response high +/- 3dB (Hz)

    3 000 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    120

  • Total Harmonic Distortion + Noise (THD+N) (%)

    N/A

  • Dimensions (mm)

    430 × 700 × 310

  • Weight (kg)

    6

  • Official link

    https://en.audionet.de/machines/pre-i-g3/

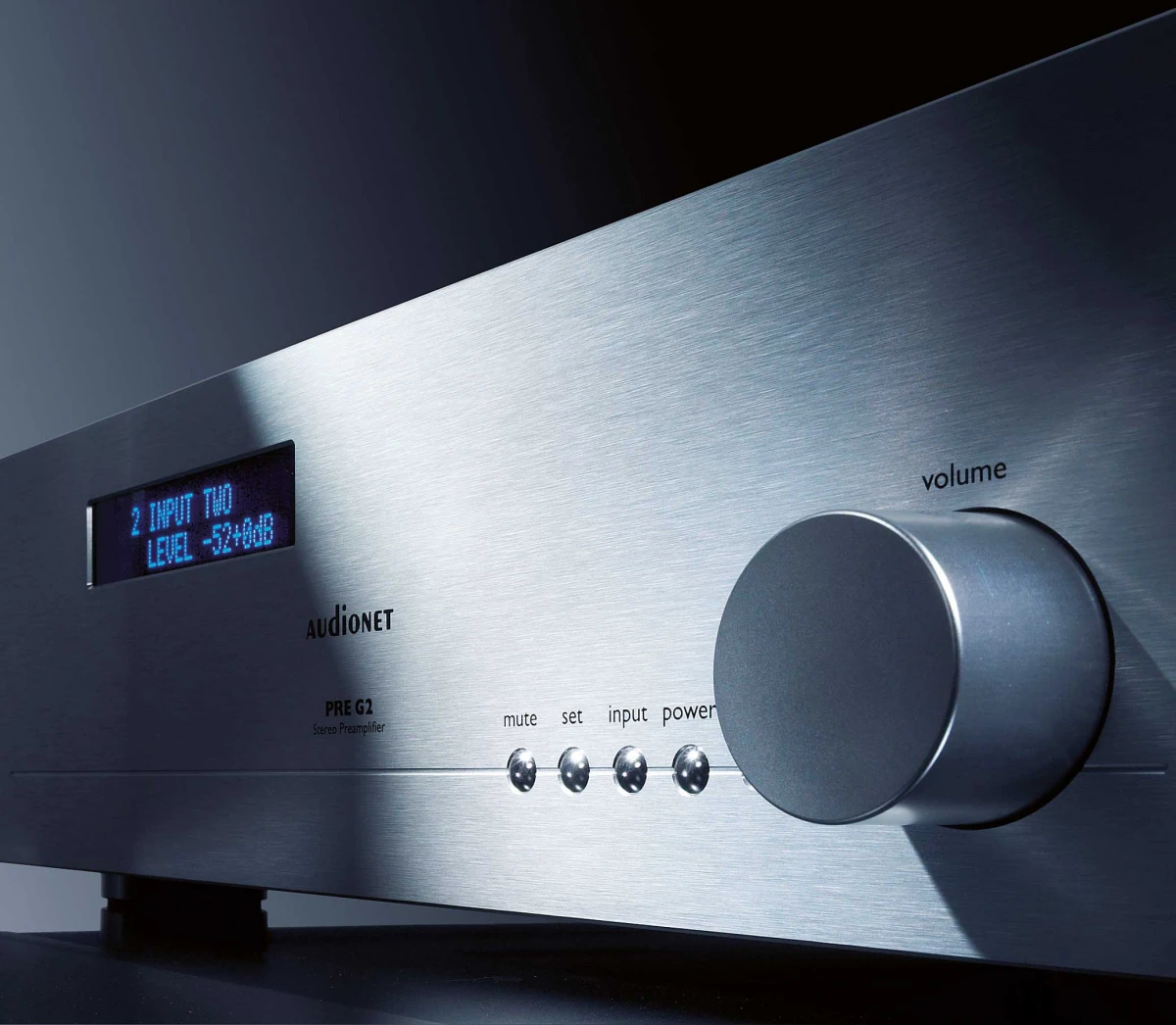

Audionet PRE G2
