Preamplifiers — Gryphon Audio PANDORA

Description, images, technical data and specifications

Gryphon Audio PANDORA
Image source — © Gryphon Audio

With a battery of capacitors with a capacity of 90,000 UF per channel, Gryphon Pandora has enough energy reserve to power most integrated amplifiers or power amplifiers. The excess power supply ensures reliable control, wide dynamic range and signal purity without any restrictions. Additionally, the Gryphon Pandora power supply provides energy to an external unit or an embedded Gryphon Legato Legacy phono corrector board.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    PANDORA

  • Analog inputs (balanced)

    3

  • Analog inputs (single-ended)

    2

  • Analog outputs (balanced)

    2

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    18

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    50 000

  • Input impedance (single-ended) (Ω)

    25 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    N/A

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0,005

  • Dimensions (mm)

    480 x 135 x 400

  • Weight (kg)

    7.5

  • Official link

    https://gryphon-audio.dk/the-collection/preamplifiers/pandora/

Gryphon Audio ESSENCE PREAMPLIFIER

Gryphon Audio ZENA

More components

  • ZENA

    Preamplifiers

    Gryphon Audio ZENA

    So, what can Gryphon Zena flaunt? First of all, the traditional "double mono" balanced design for the Danish company and work in pure class A with zero feedback. The rotating regulator of the Athena model has been replaced with a discrete one with 43 steps of 2 dB each. The element base, as usual, is ultra–high class - SMD metal-foil resistors, Pickering relays.

  • ESSENCE PREAMPLIFIER

    Preamplifiers

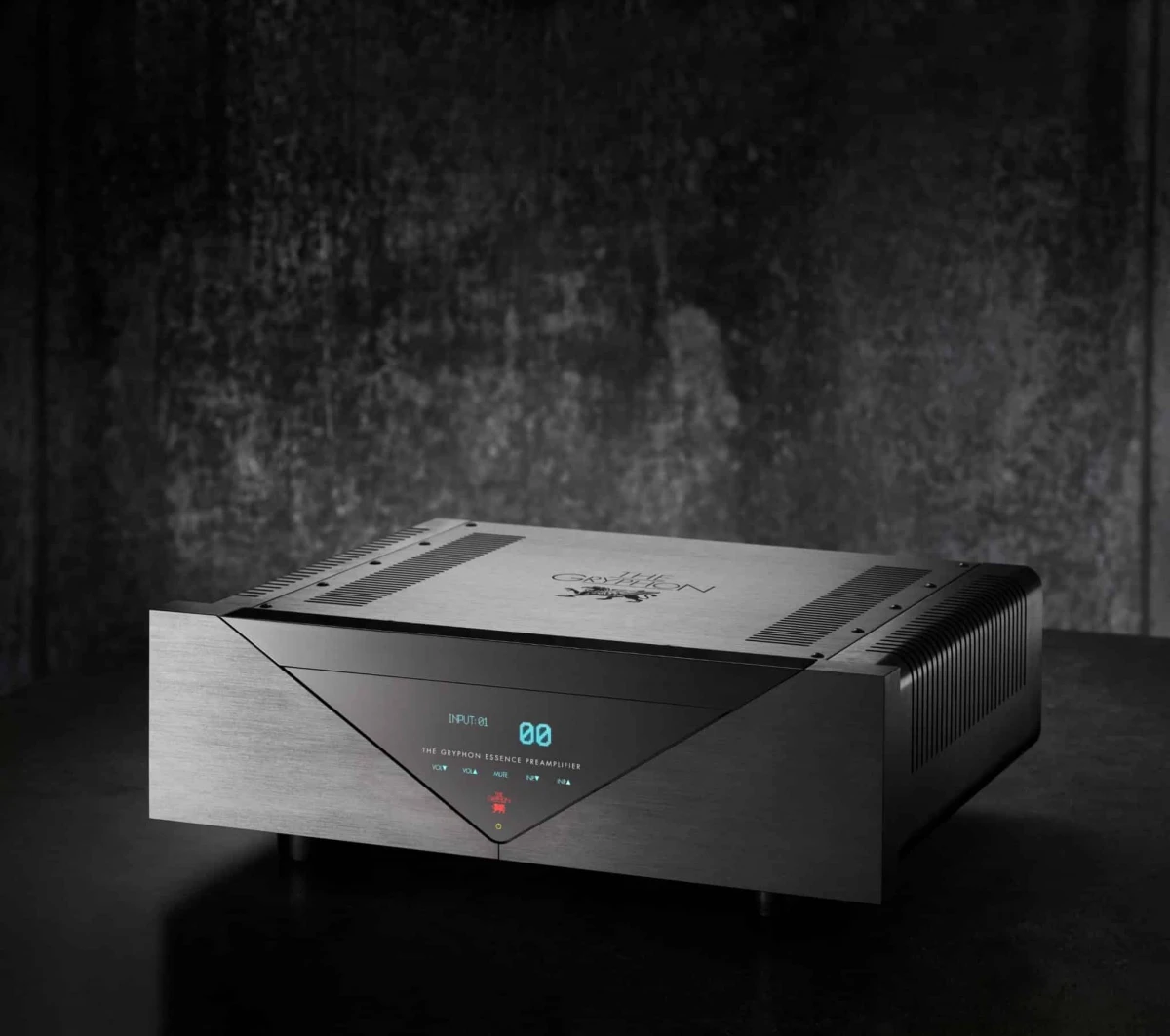

    Gryphon Audio ESSENCE PREAMPLIFIER

    The Gryphon Audio Essence Preamplifier is equipped with a pair of XLR connectors and three RCA inputs. The internal wiring is completely missing - all the circuitry is mounted on printed circuit boards. Microprocessor control allows you to fully customize the Gryphon Audio Essence Preamplifier "for yourself" by selecting the maximum signal level, starting values and calibrating any input within 8 dB.

  • COMMANDER

    Preamplifiers

    Gryphon Audio COMMANDER

    The base for the Commander was the "dual mono" circuit, which was previously used for Pandora preamps. The novelty also received a single-stage A-class buffer built on two transistors and one resistor. The Commander's important features include zero feedback and a reduced noise level several times when compared with previous Gryphon Audio products.
