Preamplifiers — T+A P 3100 HV
Description, images, technical data and specifications
T+A P 3100 HV
Image source — © T+A
The T+A P 3100 HV preamp received an improved toroidal transformer and an improved PSU for the digital part. The German company T+A is trying to update and replenish its main series of high-end High Voltage (HV) components regularly: for example, the SD/SDV 3100 HV streamer DACs and the PDT 3100 HV SACD transport have appeared in the HV-series. This time, the HV series preamp received an upgrade.
Specifications
Model name
P 3100 HV
Analog inputs (balanced)
4
Analog inputs (single-ended)
7
Analog outputs (balanced)
1
Analog outputs (single-ended)
2
Gain (dBu)
N/A
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
5
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
50
Output impedance (single-ended) (Ω)
50
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
300 000
Signal to Noise Ratio (SNR, unweighted) (dB)
108 / 112
Total Harmonic Distortion + Noise (THD+N) (%)
< 0,001
Dimensions (mm)
170 x 460 x 460
Weight (kg)
28
Official link
More components
Preamplifiers

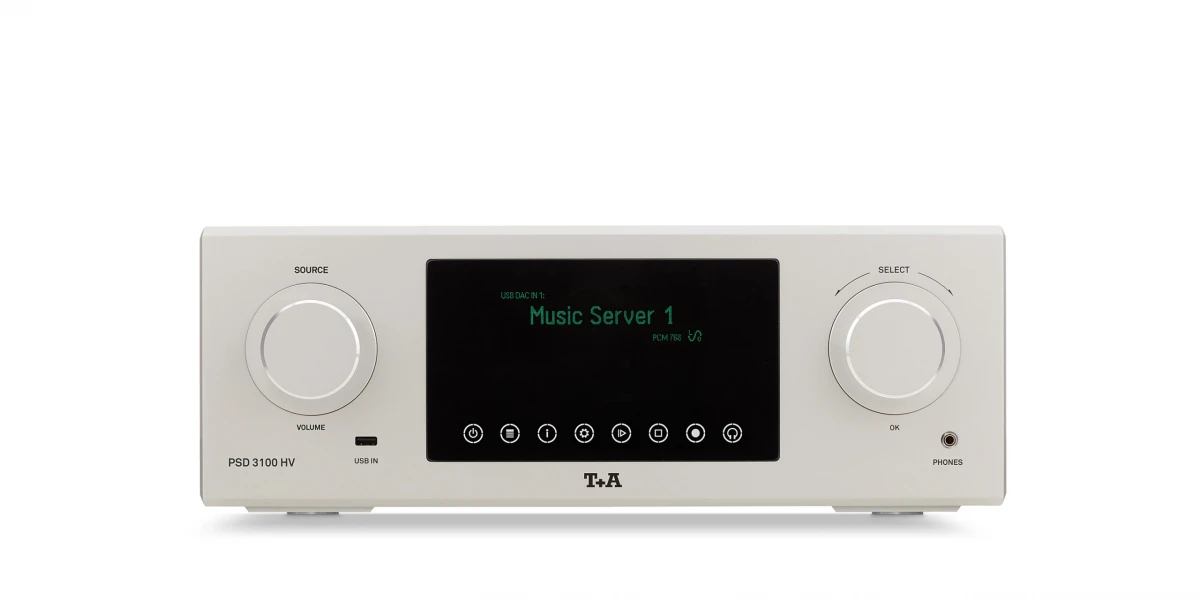

T+A PSD 3100 HV
