Preamplifiers — Musical Fidelity M6S PRE

Description, images, technical data and specifications

Musical Fidelity M6S PRE
Image source — © Musical Fidelity

The set of available inputs to the M6s PRE includes interfaces suitable for both classical and modern sources. It has a built-in MM/MC phono corrector, two balanced and three line inputs, as well as a fully functional input/output for magnetic tape recording and a digital USB input. Balanced and line inputs have a bypass function for combining stereo and cinema systems.

Specifications

  • Model name

    M6S PRE

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    4 + 1 (Phono)

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    2200 RCA, 4400 XLR

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    150 000

  • Input impedance (single-ended) (Ω)

    75 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >96

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.005 RCA, 0.0004 XLR

  • Dimensions (mm)

    440 x 126 x 400

  • Weight (kg)

    11.4

  • Official link

    https://www.musicalfidelity.com/products/m6series/m6spre

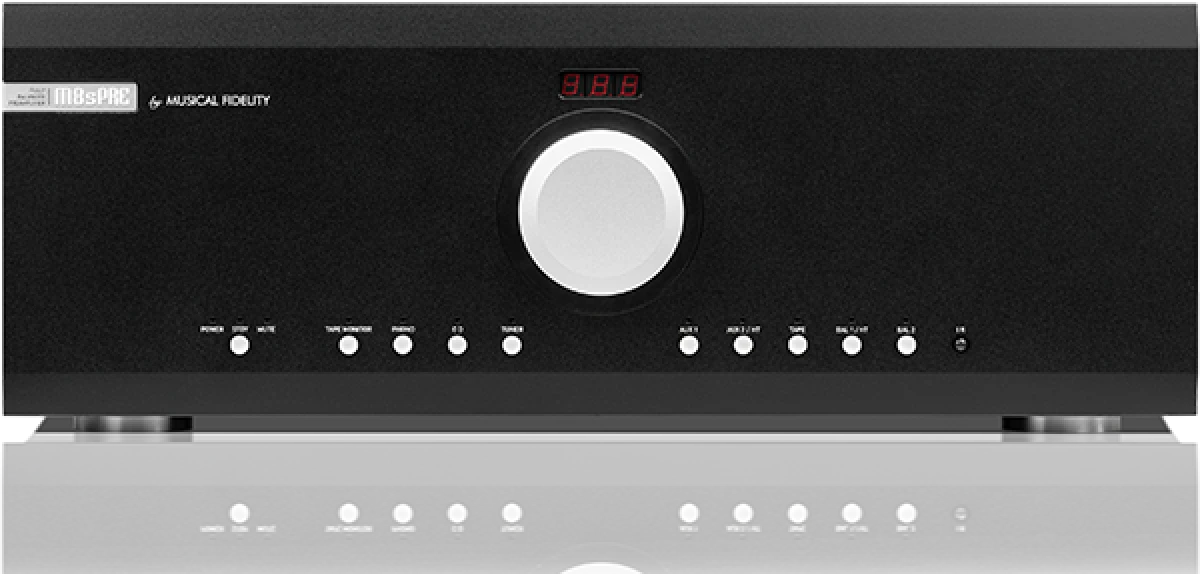

Musical Fidelity M8SPRE
