Preamplifiers — CH Precision L10

Description, images, technical data and specifications

CH Precision L10
Image source — © CH Precision

The L10 retains a fully discrete, balanced and complementary design, ultra-short signal transmission paths, highly adjustable and filtered multi-stage power supplies, wide bandwidth, high rise rate, and the L1 DC topology. It includes the same sophisticated R-2R volume control, sophisticated DC detection and suppression circuitry, and software controls.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    L10

  • Analog inputs (balanced)

    4

  • Analog inputs (single-ended)

    2

  • Analog outputs (balanced)

    2

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    94 000 or 600

  • Input impedance (single-ended) (Ω)

    47 000 or 300

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    22

  • Frequency response high +/- 3dB (Hz)

    22 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    141

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0.0008

  • Dimensions (mm)

    N/A

  • Weight (kg)

    20 + 23 (power supply)

  • Official link

    https://www.ch-precision.com/product/l10-dual-monaural-twin-chassis-line-preamplifier/

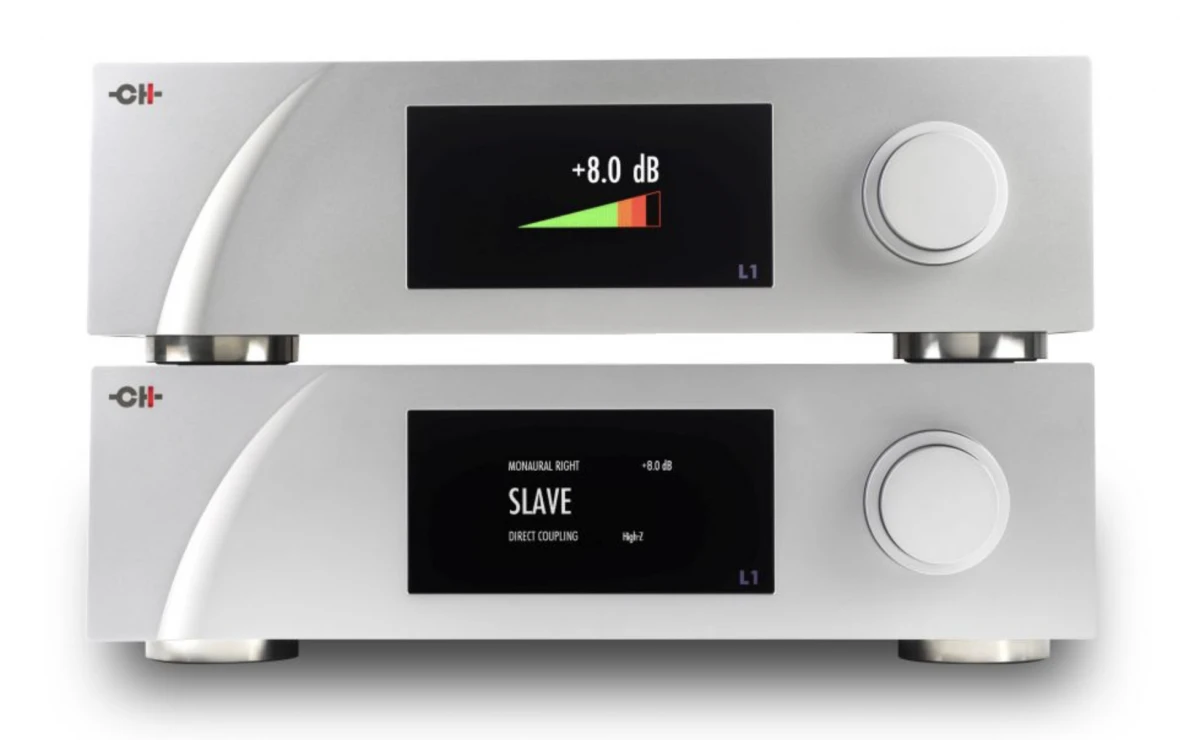

CH Precision L1
