Preamplifiers — Emm Labs EMM Labs PRE Stereo
Description, images, technical data and specifications

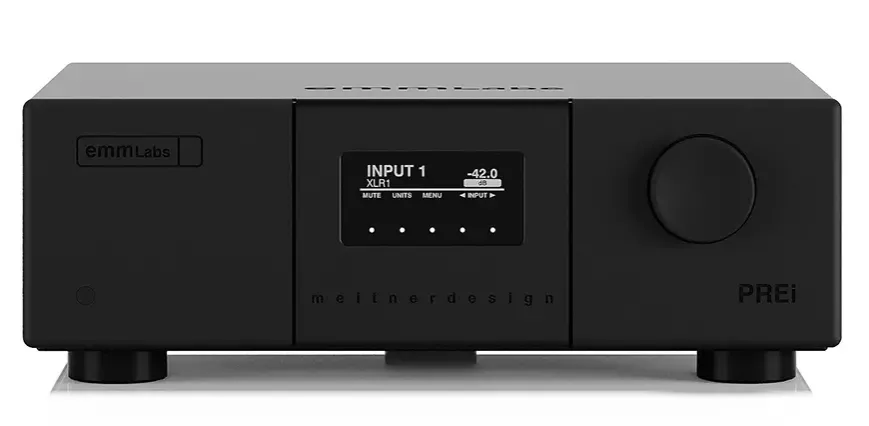

Emm Labs EMM Labs PRE Stereo
Image source — © Emm Labs
A reference preamp with fully discrete dual balanced paths, contact switching, and programmable analog volume control. Equipped with 6 analog inputs (3 XLR, 3 RCA) and 3 outputs (2 XLR, 1 RCA), supports bi- and tri-amping, has three volume presets for each input, proprietary composite boards to minimize noise and vibration, large display, IR remote control, USB and RS232 for control and updates. Provides maximum transparency and musicality for top-end audio systems
Specifications
Model name
EMM Labs PRE Stereo
Analog inputs (balanced)
3
Analog inputs (single-ended)
3
Analog outputs (balanced)
2
Analog outputs (single-ended)
1
Gain (dBu)
74
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
40 000
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
150
Output impedance (single-ended) (Ω)
75
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (SNR, unweighted) (dB)
100
Total Harmonic Distortion + Noise (THD+N) (%)
0,004
Dimensions (mm)
438 x 400 x 161
Weight (kg)
16
