Power amplifiers stereo — Vtl (Vacuum Tube Logic) S-200 Signature

Description, images, technical data and specifications

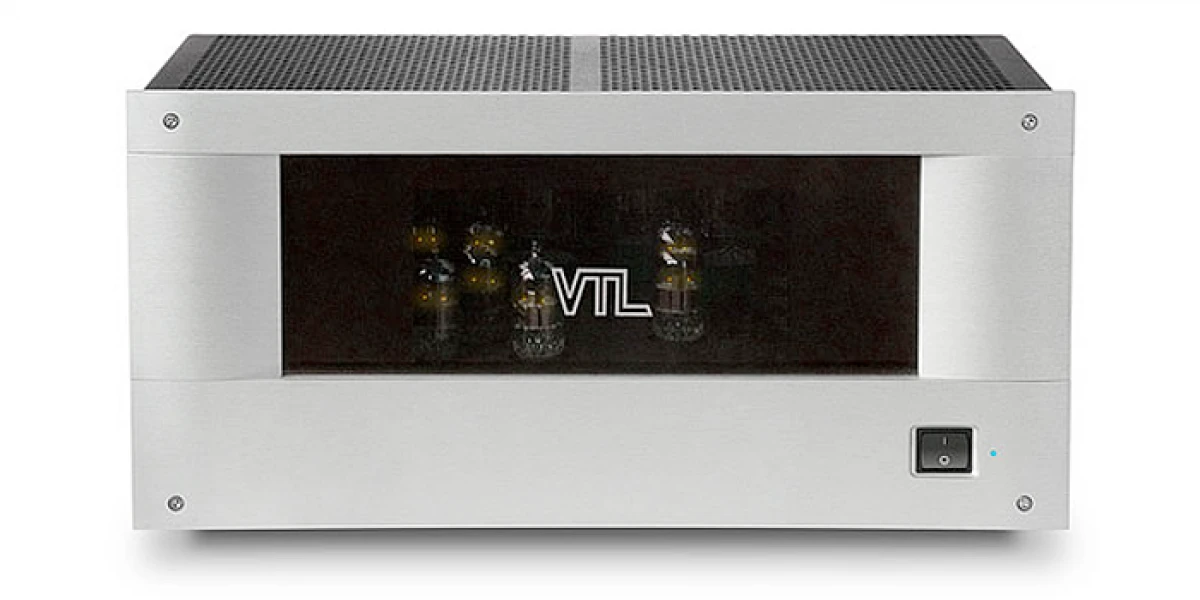

Vtl (Vacuum Tube Logic) S-200 Signature
Image source — © Vtl (Vacuum Tube Logic)

The VTL S-200 stereo power amplifier is well known to connoisseurs of high-end audio playback due to its excellent performance and reasonable price. The new version of the amplifier uses a fully balanced differential input stage, from which the signal passes to a differential phase distributor and a push-pull low-resistance output stage with an improved, fully balanced, dual transformer.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    S-200 Signature

  • Input sensitivity (mV)

    700

  • Input impedance (balanced) (Ω)

    45 000

  • Input impedance (single-ended) (Ω)

    45 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    Tetrode: 200, Triode: 100

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    1000

  • Damping factor

    N/A

  • Dimensions (mm)

    470 x 457 x 230

  • Weight (kg)

    54

  • Official link

    https://www.vtl.com/products/power-amplifiers/stereo-amplifiers/s-200-signature-stereo-amplifier/
