Power amplifiers stereo — Audio Note P3 Tonmeister
Description, images, technical data and specifications
Audio Note P3 Tonmeister
Image source — © Audio Note
Specifications
Model name
P3 Tonmeister
Input sensitivity (mV)
450
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
8
Output power (4Ω) (W)
8
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
220 x 460 x 530
Weight (kg)
27.5
Official link
More components
Power amplifiers stereo
Audio Note Ongaku Kensei
The Audio Note Ongaku runs on a pair of 211 lamps (6072 x 2, 5687 x 2, GZ34 x 4 tubes are also used), develops a power of 2 x 27 watts with 5% distortion in the frequency response from 8 to 21,000 Hz. The device weighs 34 kg.
Power amplifiers stereo

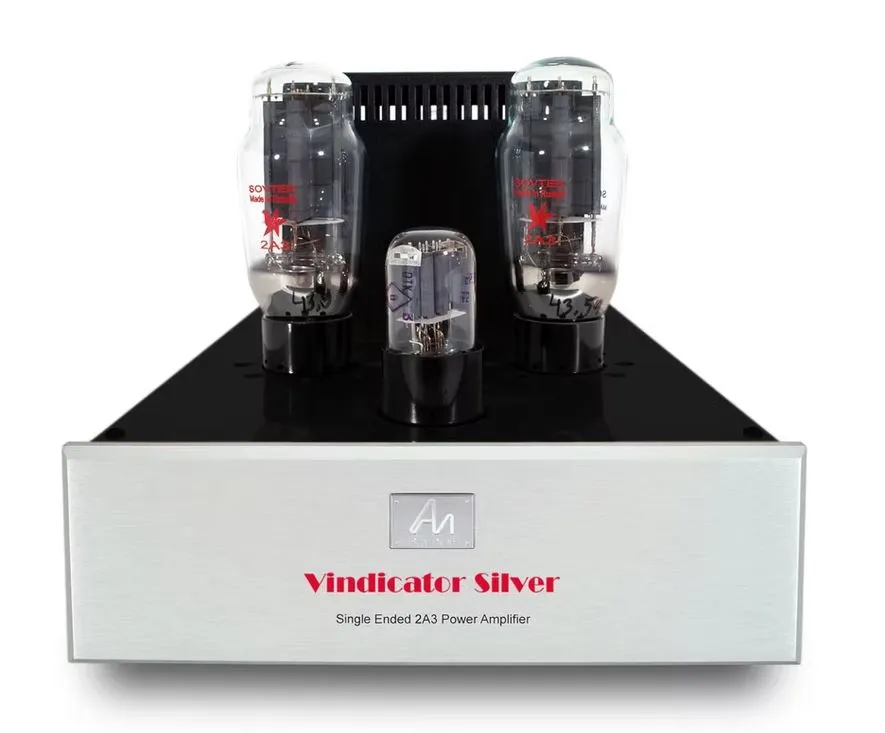

Audio Note Vindicator
