Power amplifiers stereo — AVM Ovation SA 8.3

Description, images, technical data and specifications

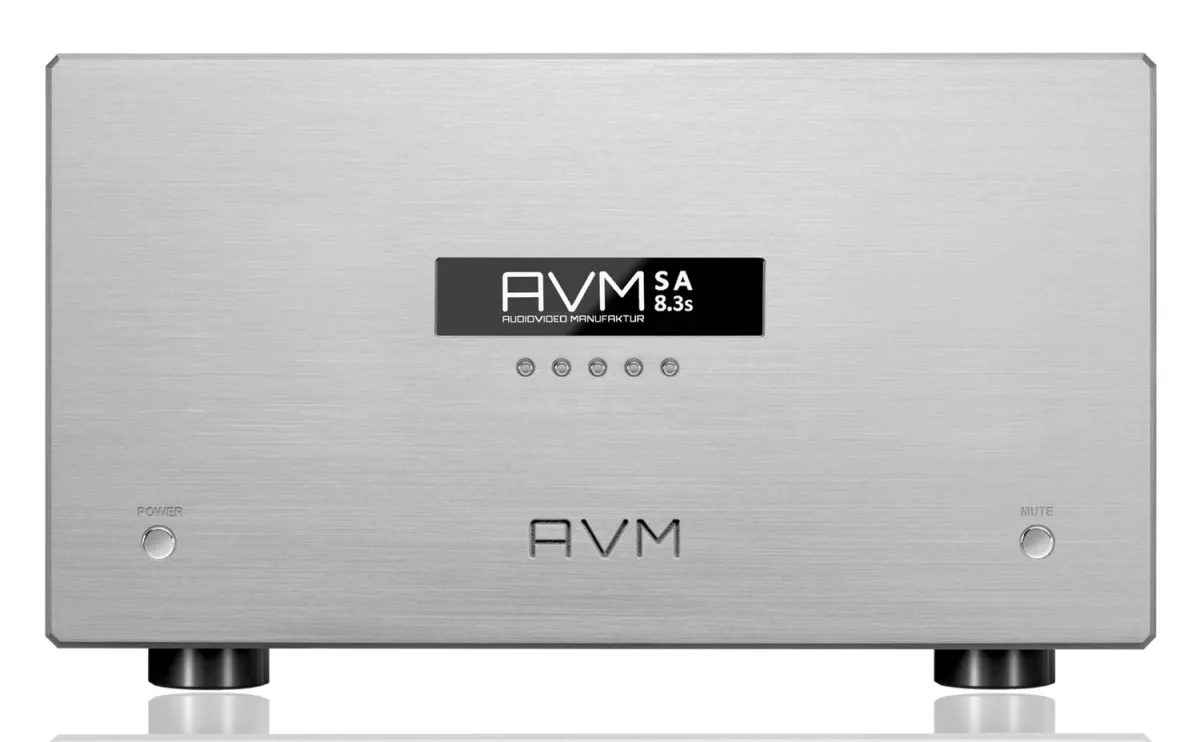

AVM Ovation SA 8.3
Image source — © AVM

The AVM SA 8.3 easily delivers 350 watts/channel (4 ohms) of power, which is stably supported by massive dual power supplies with a separate toroidal transformer for each channel. The tube output stage preserves the finest musical details and atmosphere, while the ultra-short signal paths and capacitors mounted on the high-current MOSFET output stages combine to create superior power performance and unlimited dynamic range. AIR Trigger inputs and a USB port for software updates guarantee system compatibility and long-term performance.

Specifications

  • Model name

    Ovation SA 8.3

  • Input sensitivity (mV)

    1250

  • Input impedance (balanced) (Ω)

    40 000

  • Input impedance (single-ended) (Ω)

    20 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    230

  • Output power (4Ω) (W)

    420

  • Gain (dBu)

    29.5

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    35 000

  • Signal to Noise Ratio (dB)

    >94

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    < 0.02

  • Max power consumption (W)

    N/A

  • Damping factor

    >400

  • Dimensions (mm)

    420 x 432 x 253

  • Weight (kg)

    42

  • Official link

    https://avm.audio/masterpieces/ovation-line-sa-8-3-lite-endverstaerker/

AVM Ovation SA 8.3 Lite

More components

  • Ovation SA 8.3 Lite

    Power amplifiers stereo

    AVM Ovation SA 8.3 Lite

    The AVM Ovation SA 8.3 Lite is a Class A/B stereo power amplifier with a fully transistor circuit, delivering 225 watts per channel at 8 ohms, 350 watts at 4 ohms, and 500 watts at 2 ohms, built on 24 MOSFET transistors per channel, with balanced (XLR) and unbalanced (RCA) inputs. massive 1000 VA toroidal transformer and dual mono architecture to minimize interference between channels.

  • Ovation SA 6.3

    Power amplifiers stereo

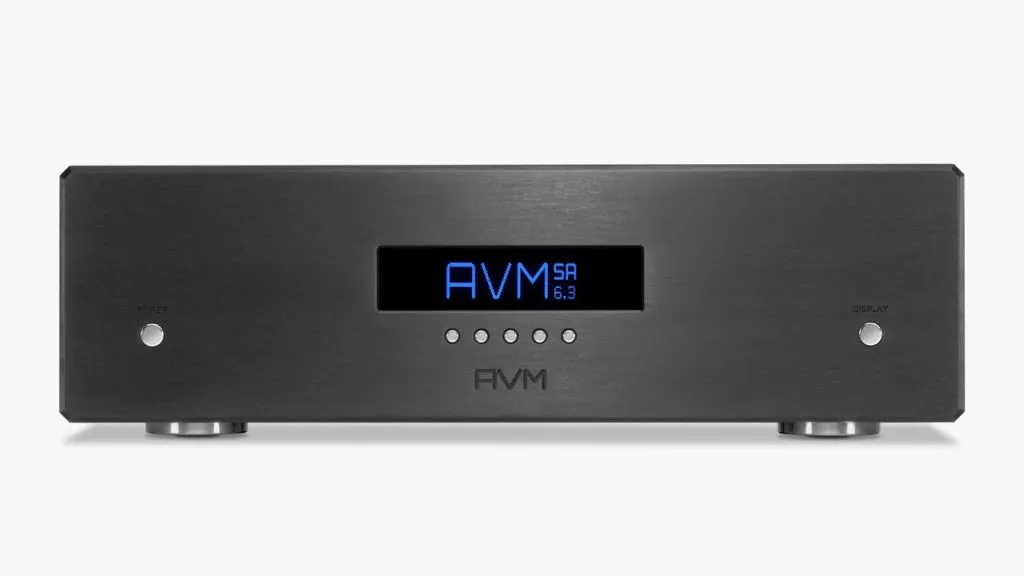

    AVM Ovation SA 6.3
