Power amplifiers stereo — Audia Flight FLS4
Description, images, technical data and specifications

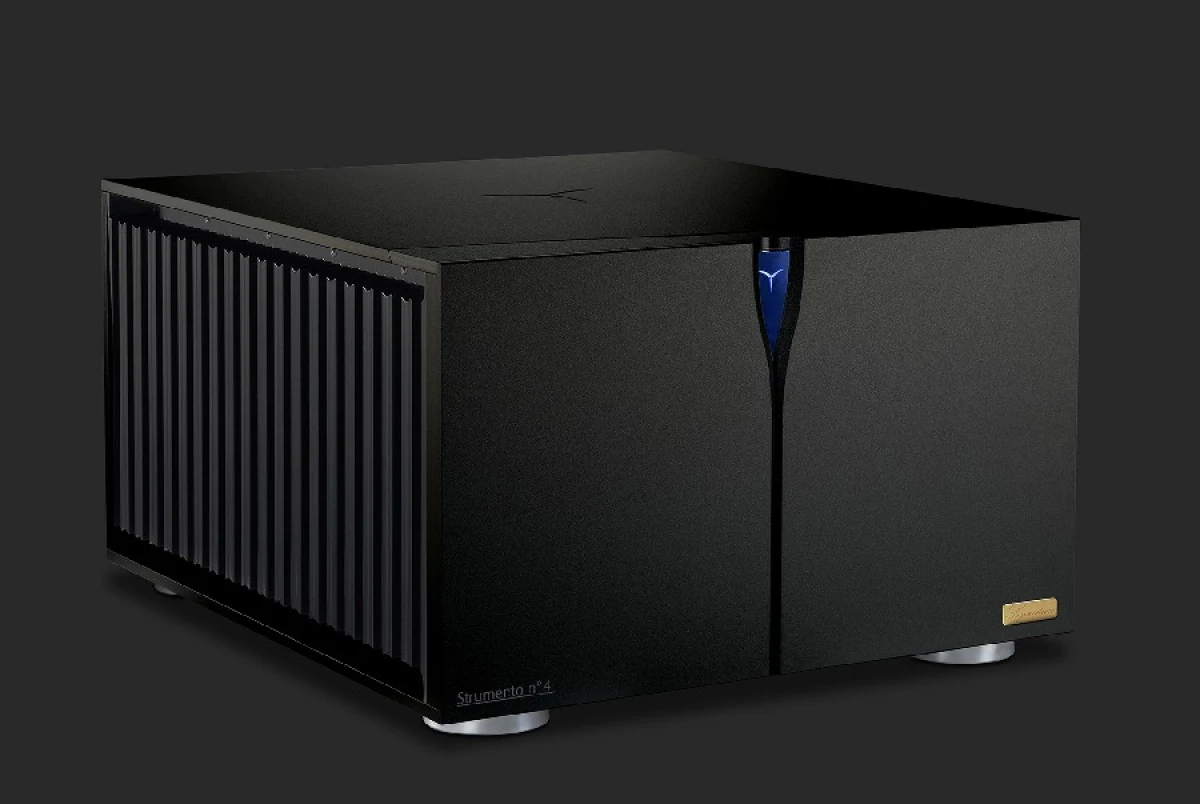

Audia Flight FLS4
Image source — © Audia Flight
Audia Flight FLS 4 is cast, made of aluminum alloy. The circuit design is fully balanced; 16 selected transistors and a power supply unit with capacitors with a total capacity of 288,000 UF are used.
Specifications
Model name
FLS4
Input sensitivity (mV)
1410
Input impedance (balanced) (Ω)
7500
Input impedance (single-ended) (Ω)
7500
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
380
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
0.3
Frequency response high +/- 3dB (Hz)
700 000
Signal to Noise Ratio (dB)
110
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0,05
Max power consumption (W)
840
Damping factor
>650
Dimensions (mm)
450x180x440
Weight (kg)
43
Official link
