Power amplifiers stereo — Emotiva BasX A11
Description, images, technical data and specifications
Emotiva BasX A11
Image source — © Emotiva
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
BasX A11
Input sensitivity (mV)
1200
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
27 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
105
Output power (4Ω) (W)
140
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
80 000
Signal to Noise Ratio (dB)
>115
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0.02
Max power consumption (W)
N/A
Damping factor
>500
Dimensions (mm)
432 × 197 × 394
Weight (kg)
23,1
Official link
More components
Power amplifiers stereo
Emotiva BasX A2L+
Emotiva BasX A2L+ is a dual-channel Class A/B power amplifier delivering 50 watts per channel at 8 ohms and 90 watts per channel at 4 ohms, with very low distortion (<0.1%) and high signal-to-noise ratio (112 dB).
Power amplifiers stereo
Emotiva XPA-6 Gen3
The XPA-6 GEN3 is a six—channel version of the latest generation of high-end modular amplifiers. The XPA-6 GEN3 offers excellent technical performance, and exceptionally accurate and dynamic playback of all types of music, making it an ideal choice for connecting a 5.1 home theater or surround sound music system. The XPA-6 GEN3 provides 225 x 6 Watts RMS at 8 ohms on five channels (and 300 watts RMS at 8 ohms or 490 watts RMS at 4 ohms on two channels).
Power amplifiers stereo
Emotiva XPA-4 Gen3
The XPA-4 GEN3 provides 260 x 4 Watts RMS at 8 ohms on four channels (and 300 Watts RMS at 8 ohms or 490 Watts RMS at 4 ohms on two channels) and the modular design allows you to add 3 additional modules whenever you need it.
Power amplifiers stereo
Emotiva XPA-9 Gen3
The XPA-9 GEN3 is an ideal amplifier for a surround sound system that uses five large speakers, or three large front speakers (left, right and center) and six small surround speakers or ceiling speakers – and this amplifier is ideal for implementing DolbyAtmos 5.1.4 or 7.1.2. XPA-9 GEN3 It will also be an excellent choice for home theater 7.1 or 7.2 systems, and for second-zone speaker dubbing.
Power amplifiers stereo

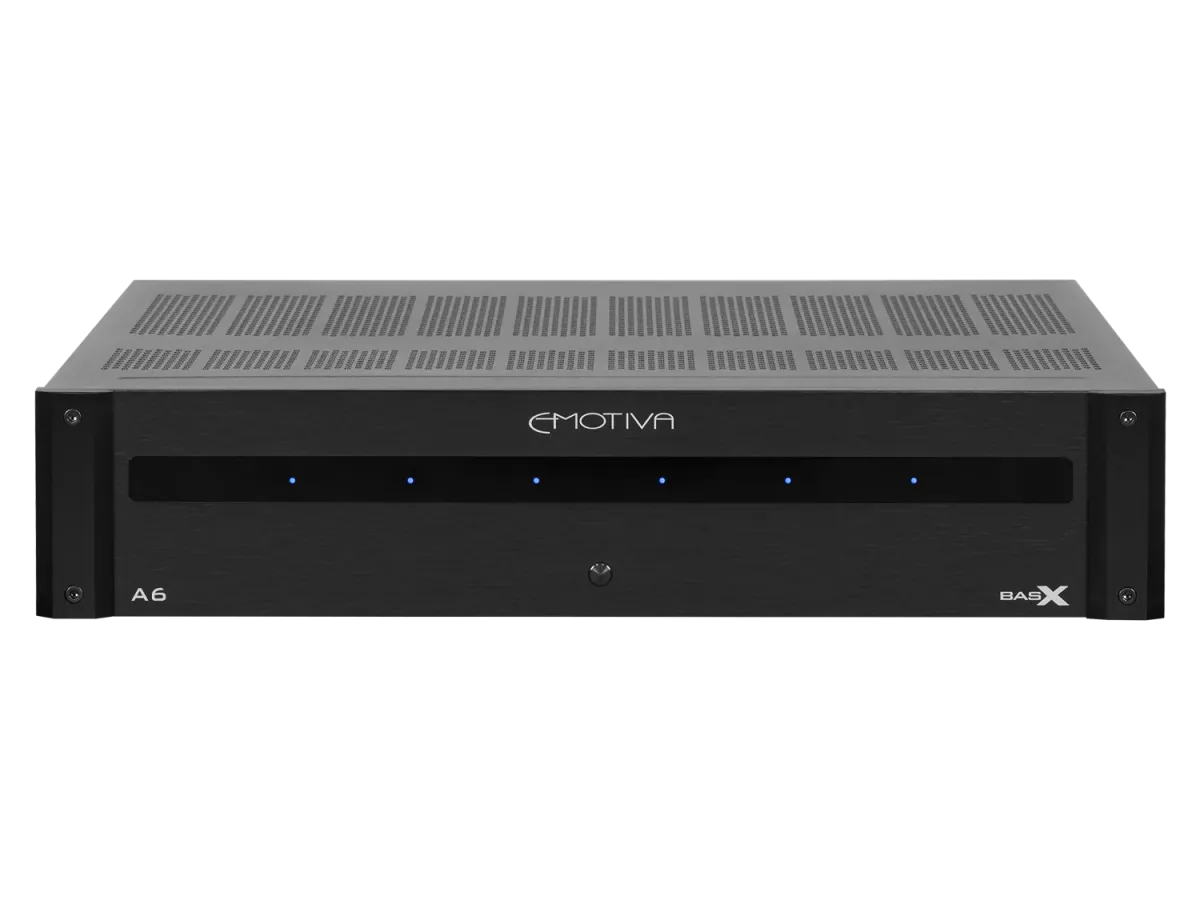

Emotiva BasX A6
