Power amplifiers mono — Krell Solo 375 XD

Name: Solo 375 XD
Brand: Krell
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Krell Solo 375 XD
Image source — © Krell

New powerful high-voltage high-frequency transistors are used at the output of the Krell Solo 375 monoblocks. Multi-storey current mirrors are used to increase linearity in cascades with direct connection. Speaking about the features of the Solo 375, it is impossible not to mention the cooling using low-noise fans that maintain a constant temperature of critical parts of the amplifier, as well as the ability to control operation and monitor important parameters over the network.

Specifications

Model name
Solo 375 XD
Input sensitivity (mV)
2450
Input impedance (balanced) (Ω)
200 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
0.018
Output impedance (single-ended) (Ω)
0.018
Max current (A)
17
Output power (8Ω) (W)
375
Output power (4Ω) (W)
600
Gain (dBu)
27
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
>103
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
1150
Damping factor
>440
Dimensions (mm)
434 x 194 x 536
Weight (kg)
27.3
Official link
https://www.krell.industries/solo-xd

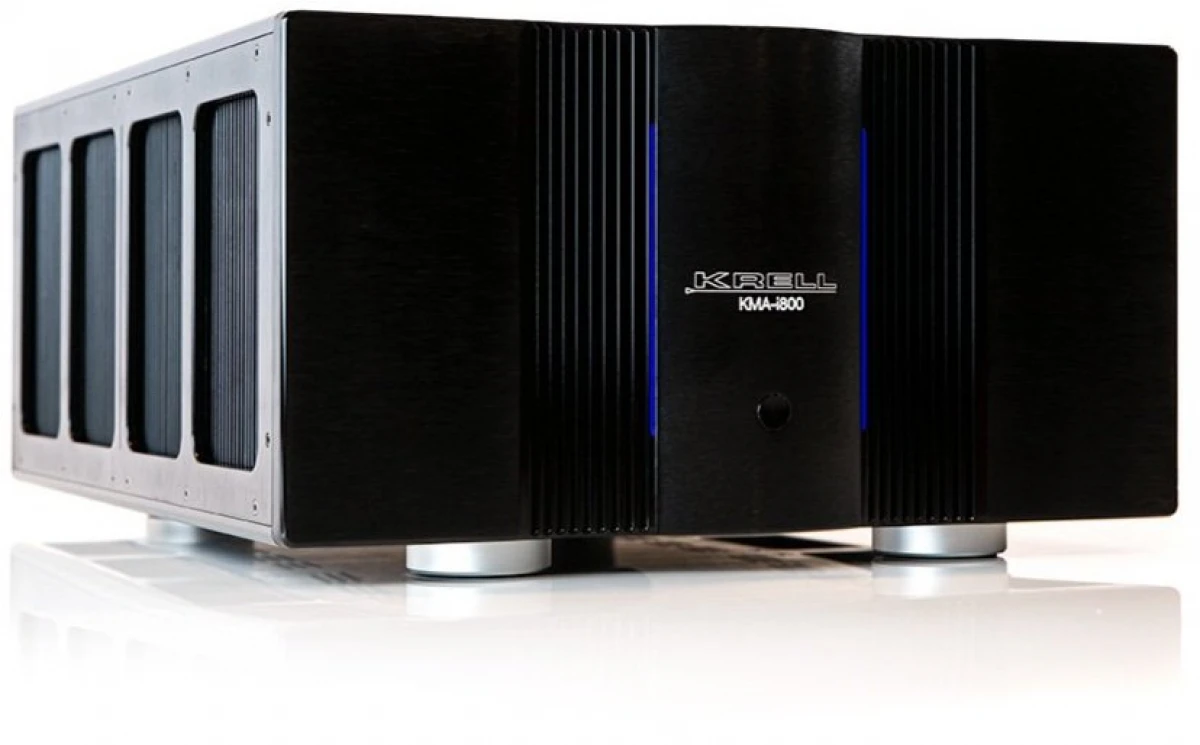

Krell KMA I800
