Power amplifiers mono — Audio Research Reference 160M MkII

Description, images, technical data and specifications

Audio Research Reference 160M MkII
Image source — © Audio Research

The amplifier uses a pair of 6H30 lamps at the input and four KT150 lamps at the output. In addition to the KT 150, the amplifier can work with other lamp options, including the 6550, KT88, and KT120. A fan is built into the protective cover to cool them. The power supply unit uses a high-power power transformer with high-capacity capacitors, providing "extremely high current for transient peaks and intense dynamics, as well as amazing depth and bass power."

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Reference 160M MkII

  • Input sensitivity (mV)

    2400

  • Input impedance (balanced) (Ω)

    200 000

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    140

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0.5

  • Frequency response high +/- 3dB (Hz)

    110 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    438 × 254 × 470

  • Weight (kg)

    25.5

  • Official link

    https://audioresearch.com/new_website/audio-research-reference-160m-mkii-mono-power-amplifier/

Audio Research Reference 330M

Audio Research VT80 SE

More components

  • Reference 750SEL

    Power amplifiers mono

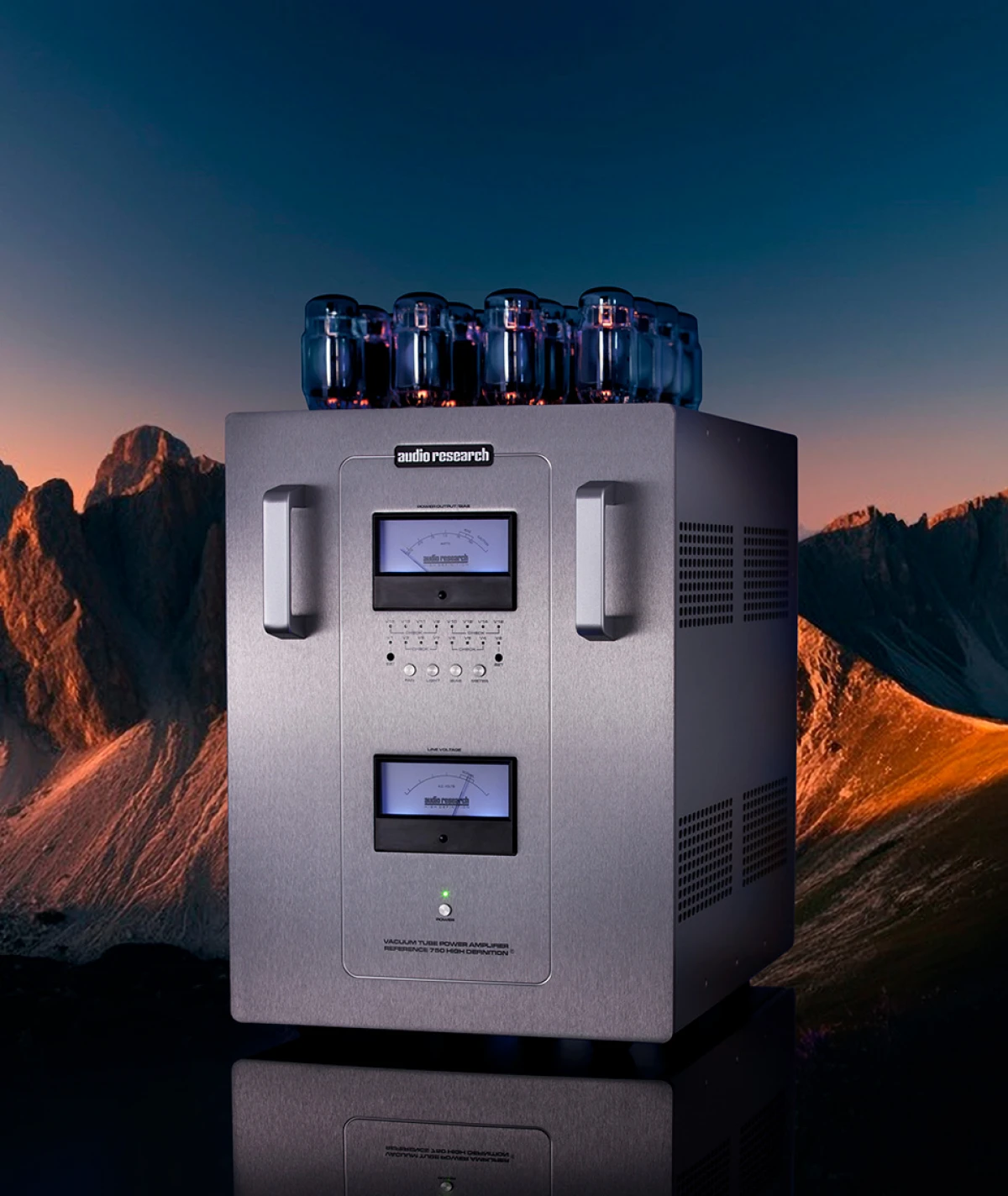

    Audio Research Reference 750SEL
