Power amplifiers mono — Audio Note P4 Balanced Tonmeister

Description, images, technical data and specifications

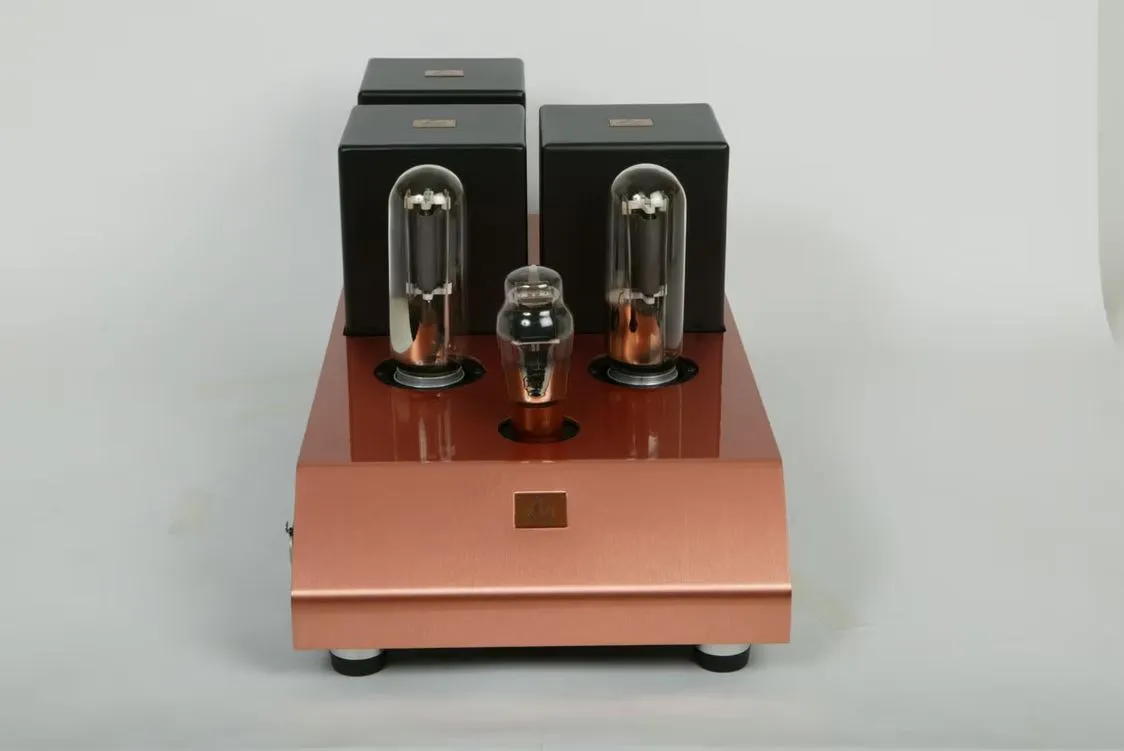

Audio Note P4 Balanced Tonmeister
Image source — © Audio Note

The Audio Note P4 Balanced version is equipped with XLR connectors instead of RCA connectors. These connectors are connected to an extremely high-quality, Audio Note (UK)™ input transformer, providing the best possible connection for properly balanced equipment. The balancing transformers of the XLR inputs are manually wound in Audio Note (UK) with copper wire. The core material is of the highest quality, offering the best signal path from your preamplifier.

Specifications

  • Model name

    P4 Balanced Tonmeister

  • Input sensitivity (mV)

    1600

  • Input impedance (balanced) (Ω)

    2400

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    18

  • Output power (4Ω) (W)

    18

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    200

  • Damping factor

    N/A

  • Dimensions (mm)

    220 x 460 x 530

  • Weight (kg)

    25

  • Official link

    https://www.audionote.co.uk/p4balancedtonmeister
