Power amplifiers mono — Cary Audio CAD-805RS
Description, images, technical data and specifications

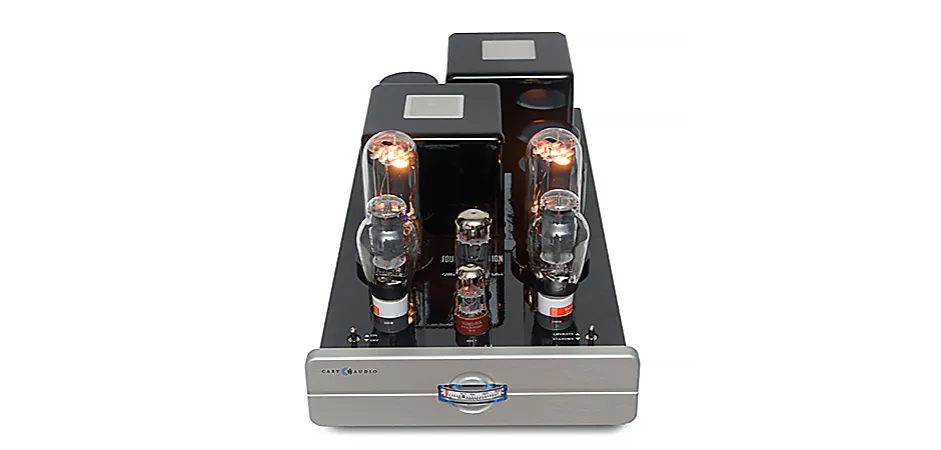

Cary Audio CAD-805RS
Image source — © Cary Audio
The input stage is made on a pair of 6SN7 dual triodes: first, the signal passes through the input stage on a dual triode with resistor connections operating in parallel mode, and then enters the anode circuit built on the second lamp.
Specifications
Model name
CAD-805RS
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
150 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
50
Output power (4Ω) (W)
50
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
254 × 311 × 610
Weight (kg)
2,27
Official link
More components
Power amplifiers mono

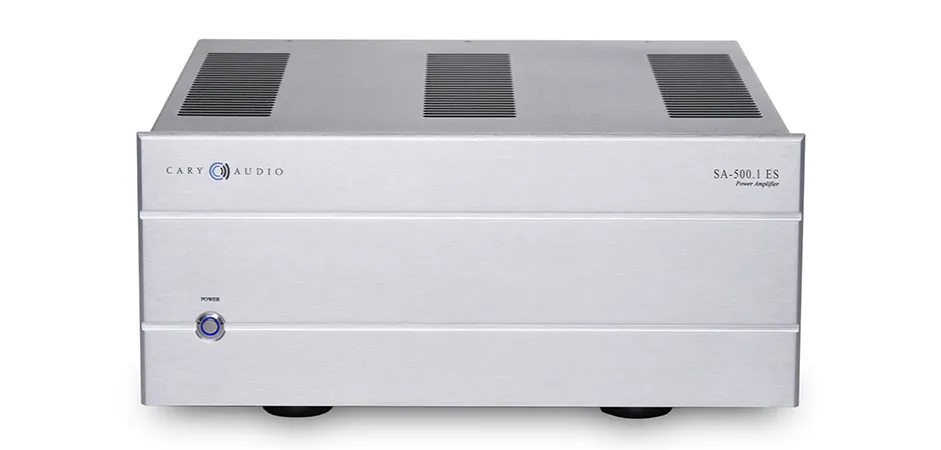

Cary Audio SA-500.1 ES
