Power amplifiers mono — Air Tight ATM-2211
Description, images, technical data and specifications

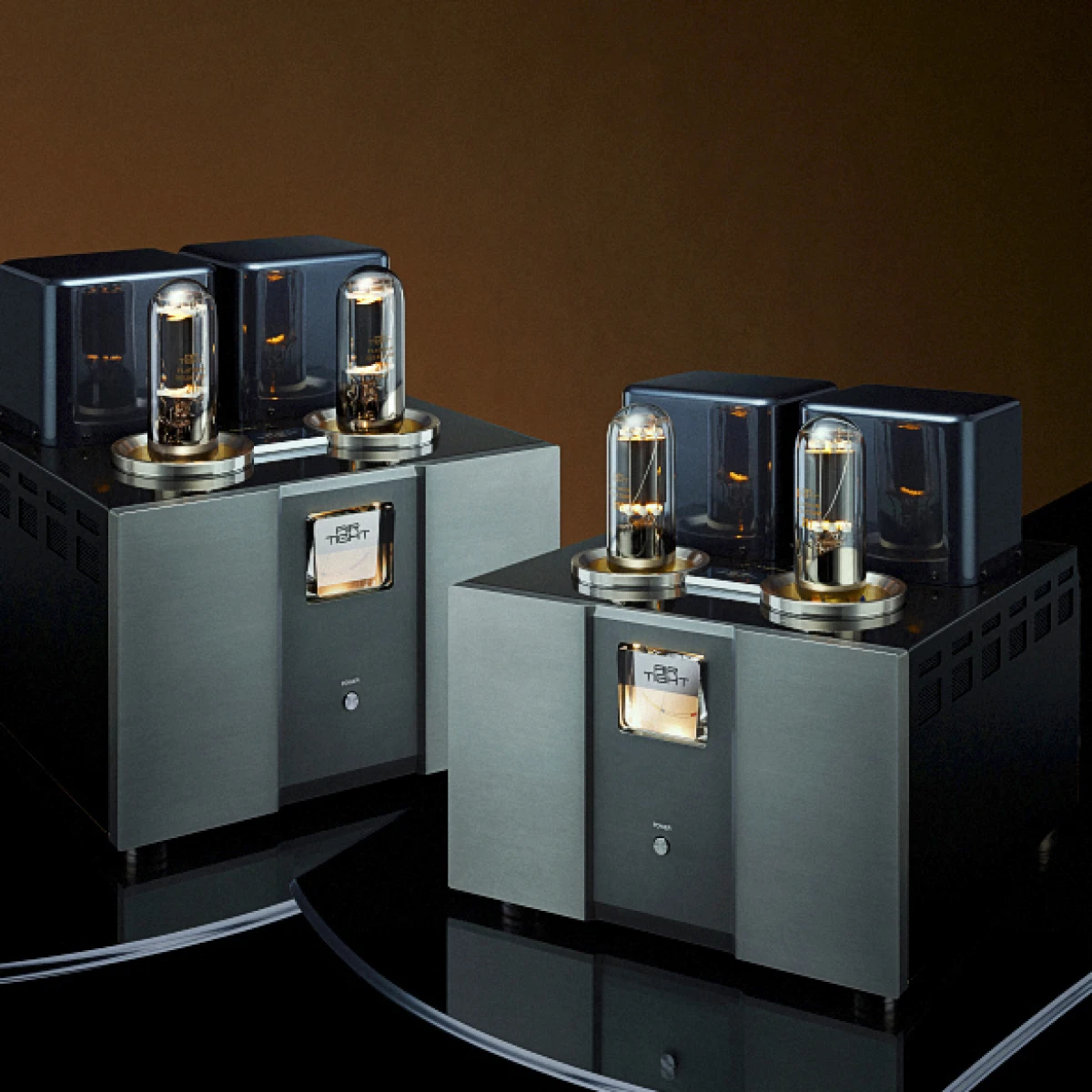

Air Tight ATM-2211
Image source — © Air Tight
The main feature of the Airtight ATM-2211 is the use of two independent power sources in each device. As a result, the system began to produce much less noise, and its power increased from 18 watts per channel to 32 watts per channel.
Specifications
Model name
ATM-2211
Input sensitivity (mV)
500
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
32
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
400 x 350 x 225
Weight (kg)
25.5
