Power amplifiers mono — Gryphon Audio Apex Mono

Description, images, technical data and specifications

Gryphon Audio Apex Mono
Image source — © Gryphon Audio

Apex Mono is a device with 128 high—current bipolar transistors, a battery of capacitors with a capacity of 2,080,000 UF, four toroidal transformers with a capacity of 2,000 VA, which are custom-made. The amplifier weighs 900 pounds and provides 1,800 watts per ohm load.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Apex Mono

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    10 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    0,010

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    225

  • Output power (4Ω) (W)

    450

  • Gain (dBu)

    31

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.02

  • Max power consumption (W)

    3700

  • Damping factor

    N/A

  • Dimensions (mm)

    593 × 371 × 886

  • Weight (kg)

    202

  • Official link

    https://gryphon-audio.dk/the-collection/power-amplifiers/apex/

Gryphon Audio Antileon EVO Mono

More components

  • ESSENCE MONO

    Power amplifiers mono

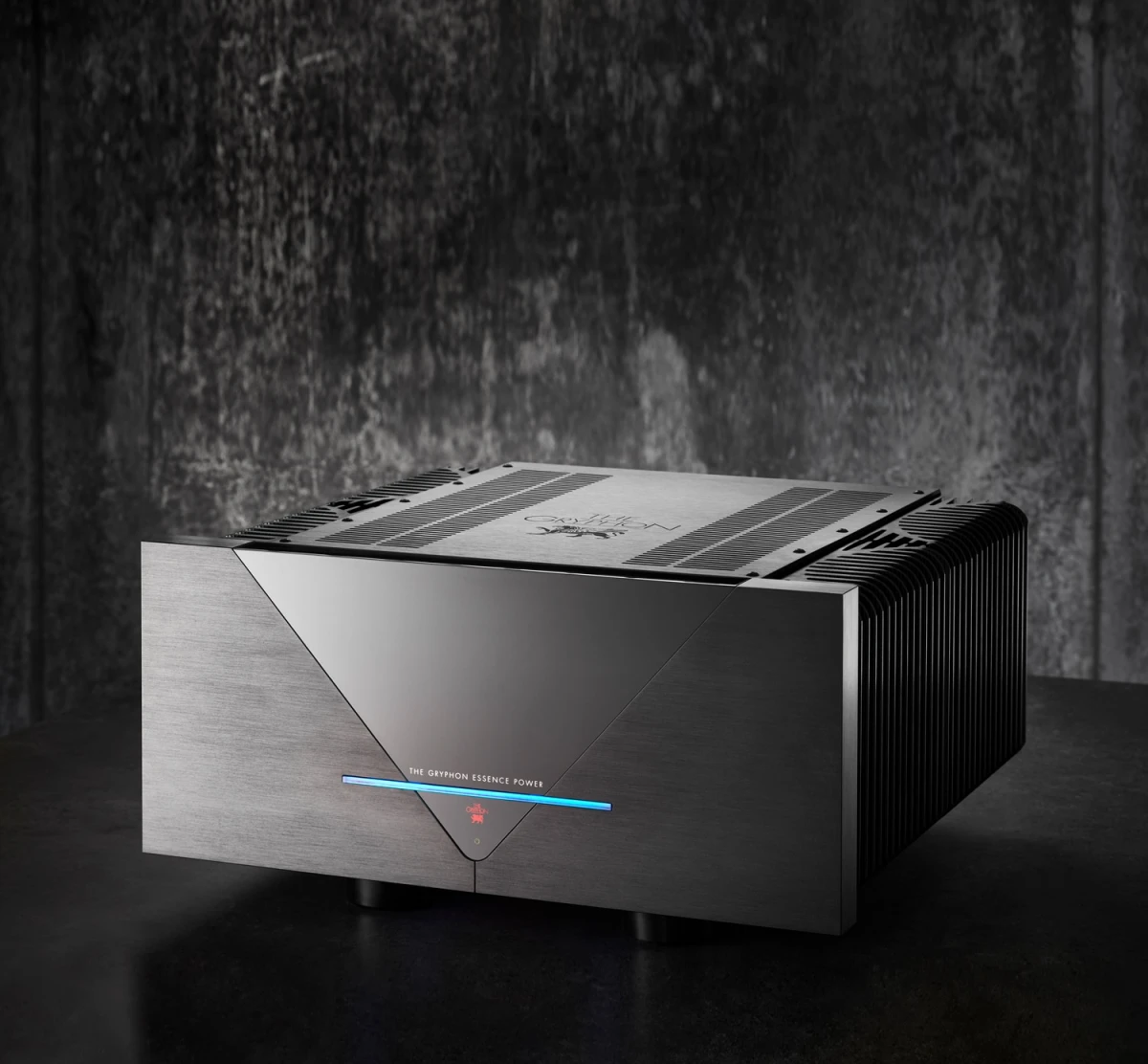

    Gryphon Audio ESSENCE MONO
