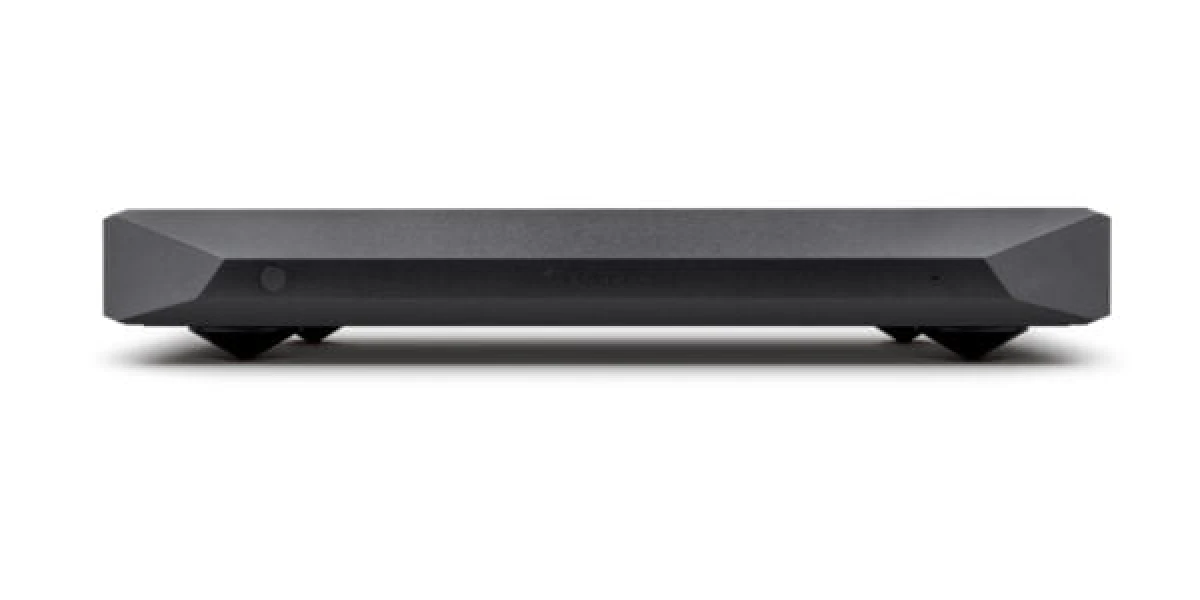

Nuprime Audio AMG One
Image source — © Nuprime Audio
The NuPrime AMG One is a smaller version of the Evolution Two amplifier. The model uses Only Distortion Cancellation (ODC) technology, which significantly reduces distortion.
Specifications
Model name
AMG One
Input sensitivity (mV)
1700
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
0.004
Max current (A)
N/A
Output power (8Ω) (W)
210
Output power (4Ω) (W)
260
Gain (dBu)
x21
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
95
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.003
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
55 x 235 x 285
Weight (kg)
4.5
