Hifiverse

Integrated amplifiers — Cary Audio DMS-300A

Description, images, technical data and specifications

Cary Audio DMS-300A
Image source — © Cary Audio

The Cary Audio DMS-300A is a Class AB integrated amplifier that delivers 75W of power to each of its two channels when driven into a load with a nominal impedance of 8 Ohms.

Specifications

  • Model name

    DMS-300A

  • Type

    Streaming integrated amplifier

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    10000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    2 x 75

  • Output power (4Ω) (W)

    2 x 125

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    2

  • Frequency response high +/- 3dB (Hz)

    22000

  • Signal to Noise Ratio (dB)

    100

  • Total Harmonic Distortion + Noise (%)

    0.5

  • Damping factor

    N/A

  • Dimensions (mm)

    N/A

  • Weight (kg)

    11.8

  • Official link

    https://caryaudio.com/products/dms-300a/

Cary Audio CAD-300SEI

More components

  • CAD-300SEI

    Integrated amplifiers

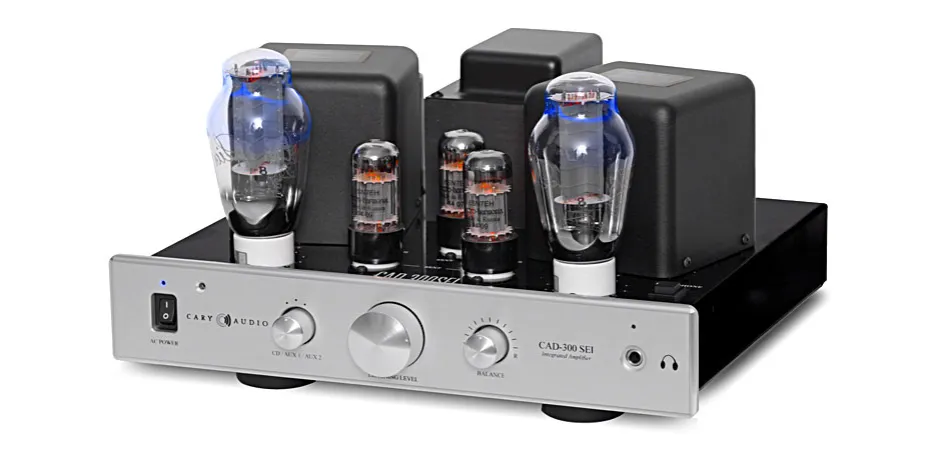

    Cary Audio CAD-300SEI

    The Cary Audio Design CAD 300 SEI integrated stereo amplifier is made according to a classic single-stroke circuit without feedback. The amplifier's output is powered by 300B lamps, highly respected by audiophiles around the world for their rich and dynamic sound over a wide frequency range.

  • SLI-100

    Integrated amplifiers

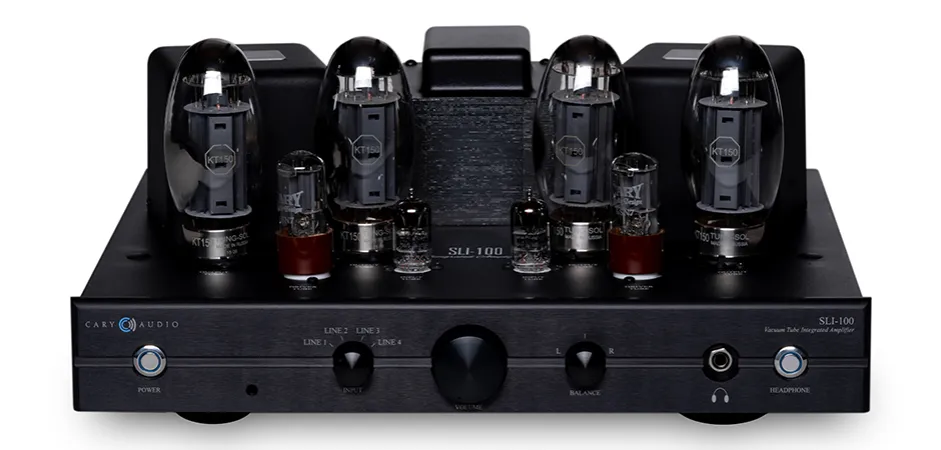

    Cary Audio SLI-100

    The Cary Audio SLI-100 has a headphone output with a specially optimized circuit - the signal to the headsets comes directly from the output transformers.

  • SI-300.2D

    Integrated amplifiers

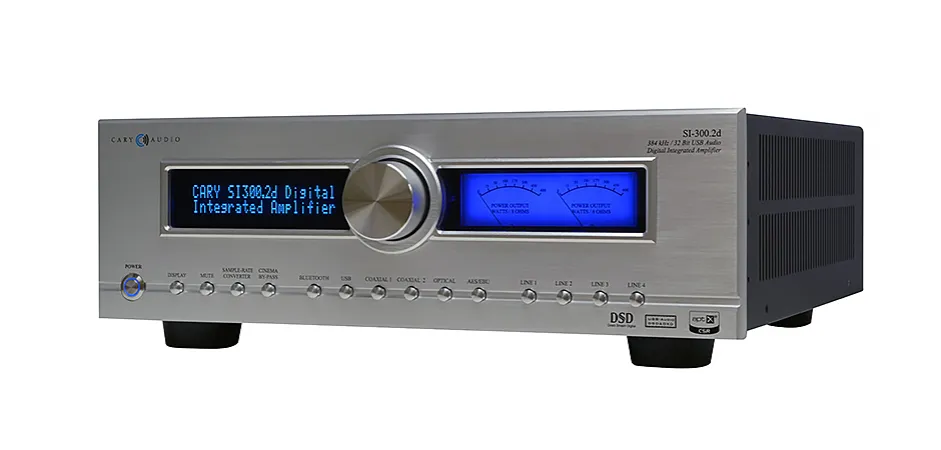

    Cary Audio SI-300.2D
