Integrated amplifiers — Tone Winner AD-2PRO+

Description, images, technical data and specifications

Tone Winner AD-2PRO+
Image source — © Tone Winner

The left and right channels are powered by independent power sources, which completely eliminates the interaction between the channels, ensuring their perfect isolation and separation. The amplifier with an output power of 240 watts per channel (8 ohms) is equipped with high-quality 860-watt toroidal transformers, special audio filter capacitors with a capacity of 120,000 UF and premium transistors that provide high parallel output power and high overcurrent capacity.

Specifications

  • Model name

    AD-2PRO+

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    240

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    40

  • Frequency response low +/- 3dB (Hz)

    15

  • Frequency response high +/- 3dB (Hz)

    95 000

  • Signal to Noise Ratio (dB)

    >100

  • Total Harmonic Distortion + Noise (%)

    ≤0.05

  • Damping factor

    N/A

  • Dimensions (mm)

    444 x 254 x 460

  • Weight (kg)

    35.9

  • Official link

    https://en.tonewinner.com/tonewinner-dsd-decoding-hi-fi-class-a-integrated-amplifier_p111.html

Tone Winner AD-89D

Tone Winner AD-66DPRO

More components

  • AD-60

    Integrated amplifiers

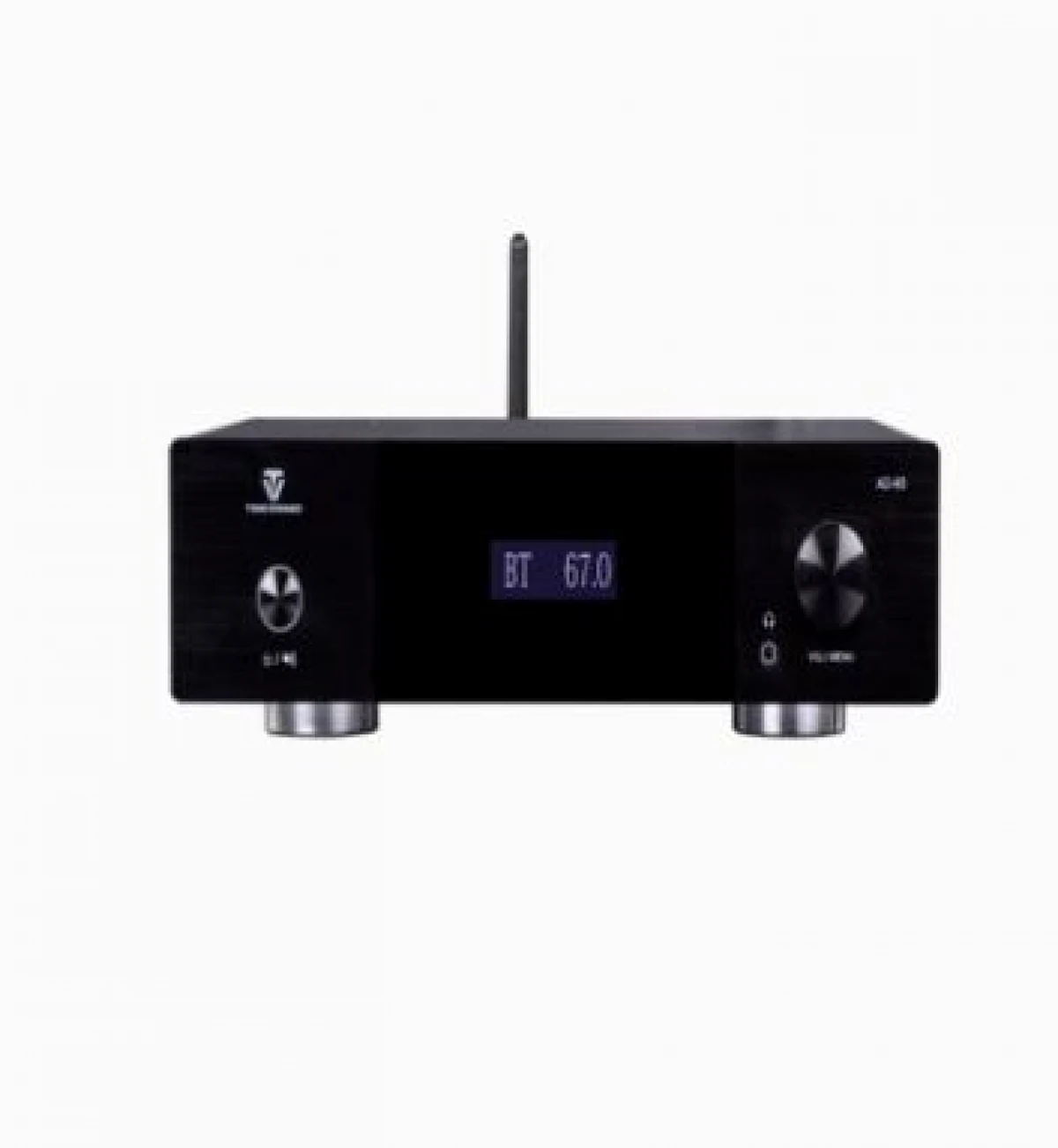

    Tone Winner AD-60

    The Tone Winner AD-60 is an integrated power amplifier that delivers 2x80 watts of power at 4Ω while maintaining very low distortion and response time due to its Class AB design.In addition, a wide range of connectors allows it to be used in a wide variety of configurations, from a home theater with an HDMI/ARC connector to remote use using a simple Bluetooth 5.0 connection.

  • AD-66DPRO

    Integrated amplifiers

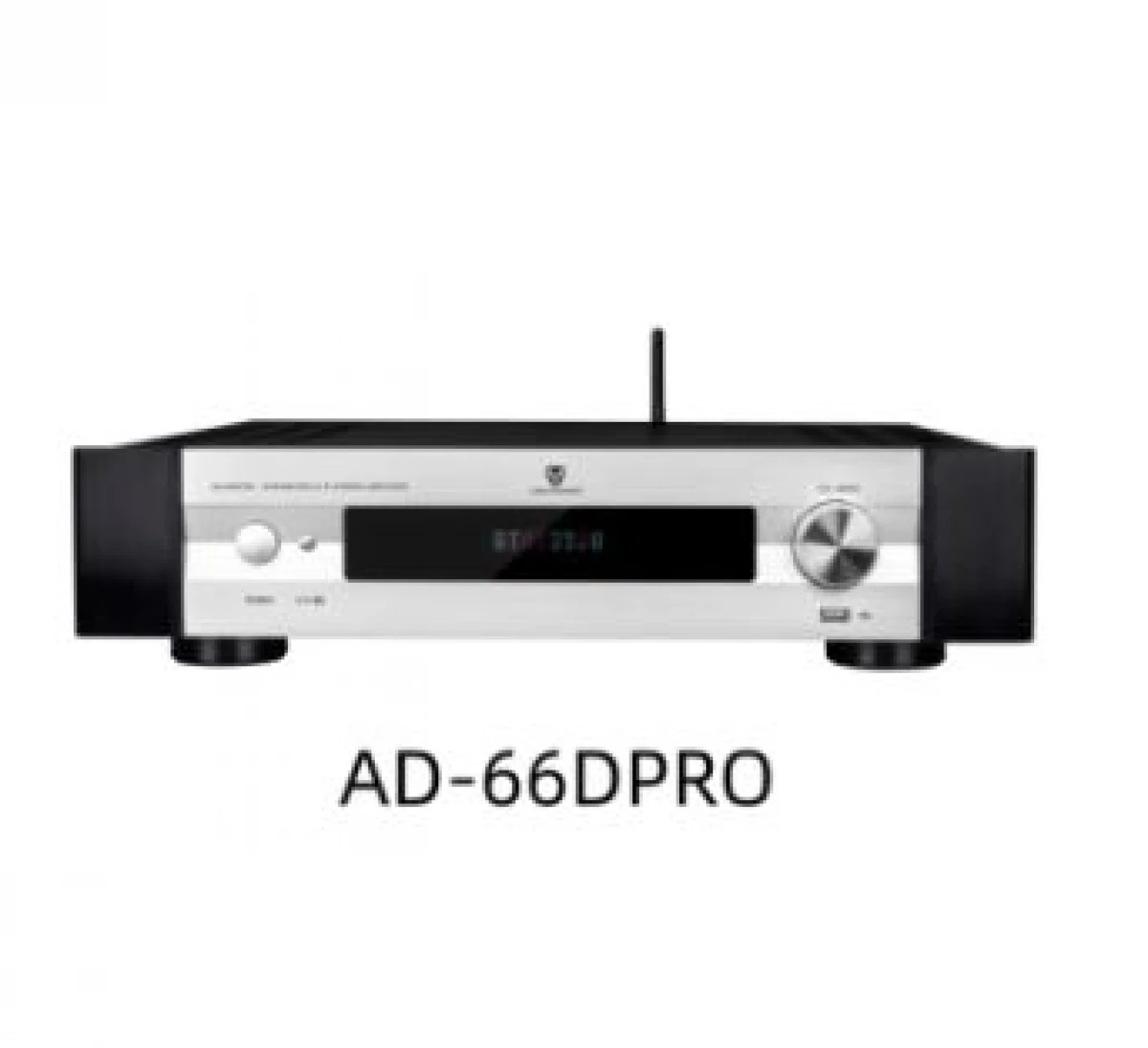

    Tone Winner AD-66DPRO

    The ToneWinner AD-66DPRO amplifier is based on the professional version with the addition of a high-quality audio decoder and Bluetooth audio module. The top-end audiophile chip from the American company Analog Devices AD1955 is used as a DAC, which has higher quality ratings than the AD-1853 and a sampling rate of 192 kHz with a 24-bit bit rate.

  • AD-89D

    Integrated amplifiers

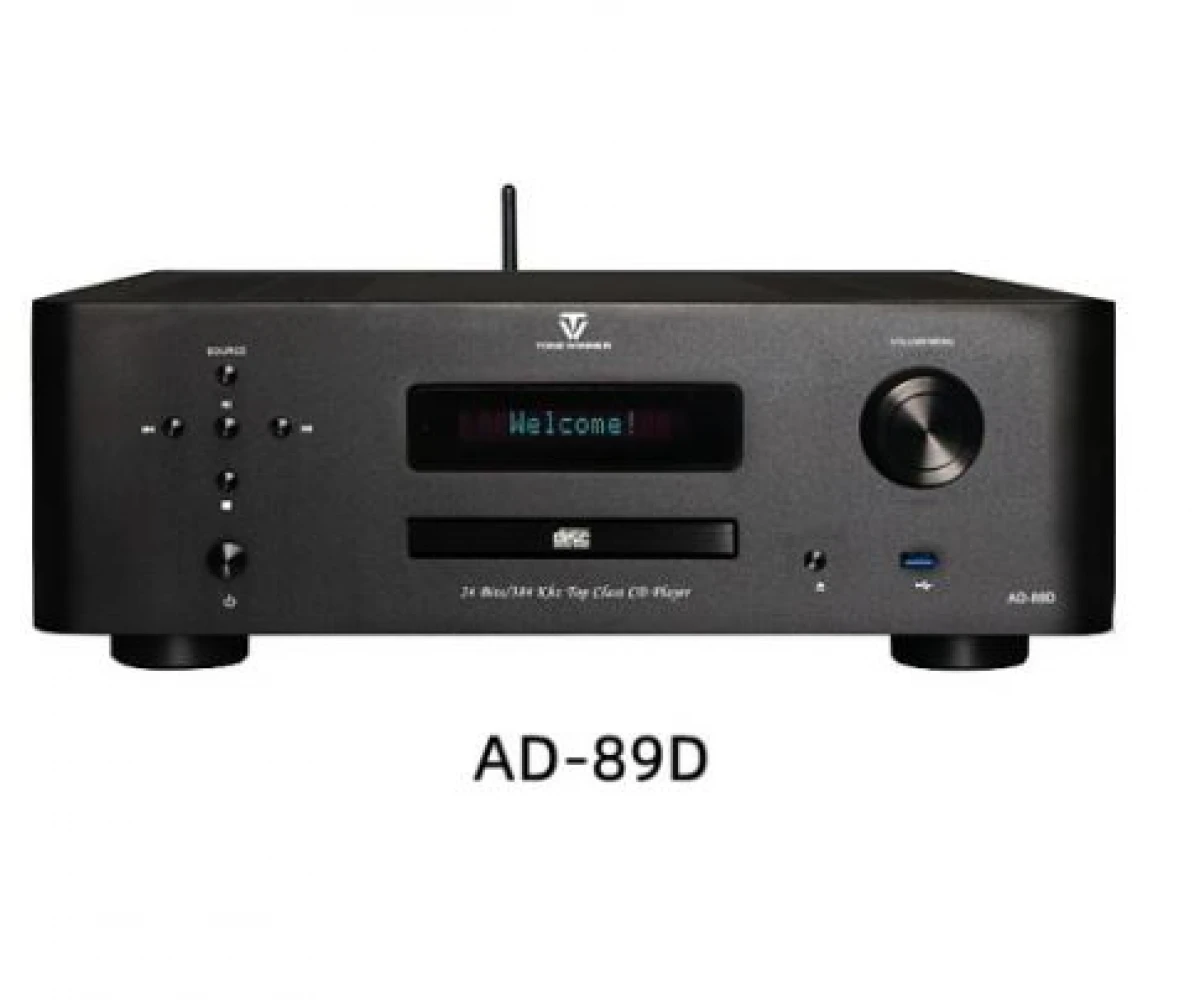

    Tone Winner AD-89D

    The AD-89D is an integrated amplifier that combines the functions of a CD player, streaming media player, DAC, and power amplifier. Supports USB flash drives (up to 128 GB), local memory cards, supports basic lossless music audio formats, including WAV, FLAG, APE, etc.

  • AD-86D

    Integrated amplifiers

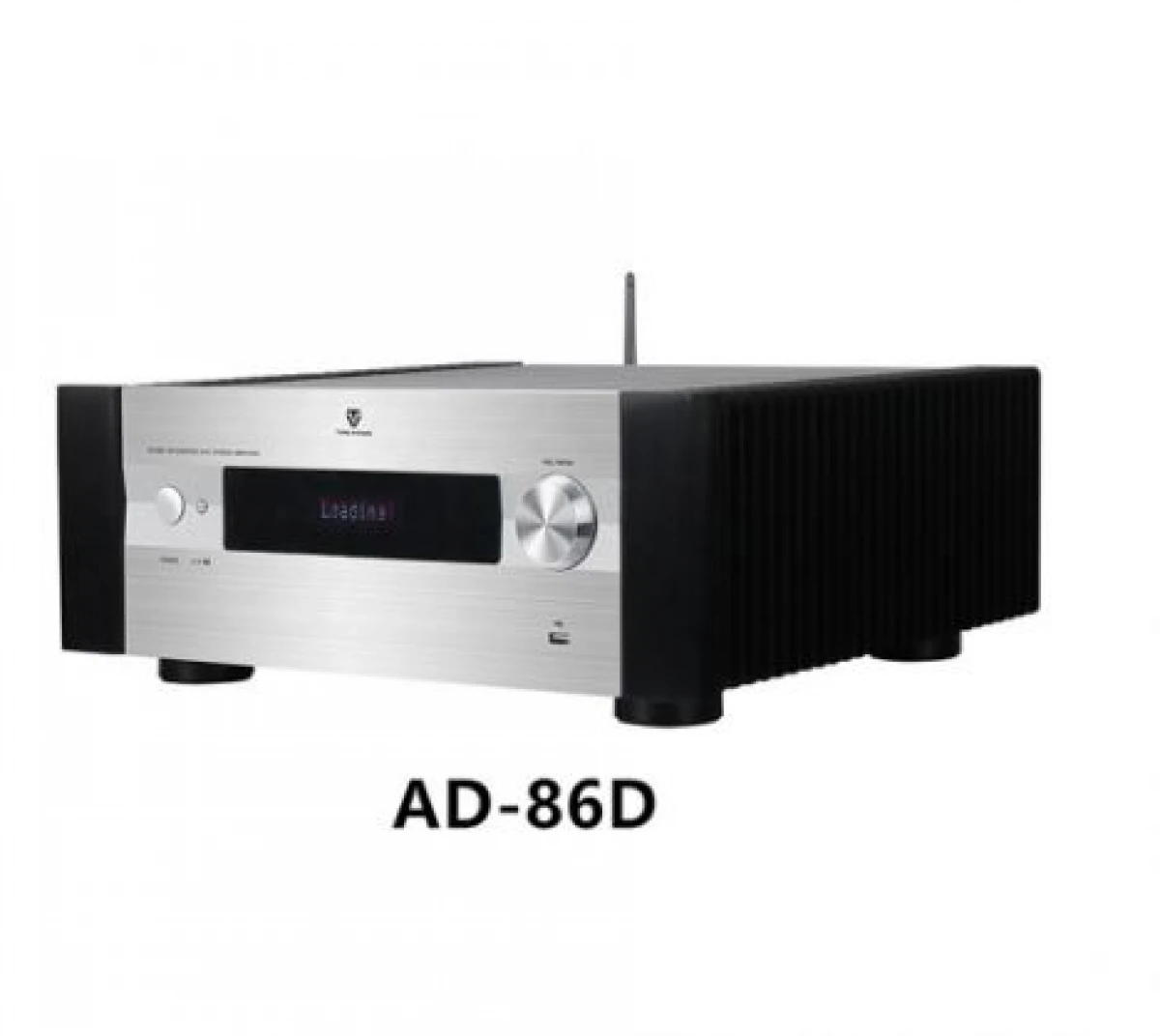

    Tone Winner AD-86D

    The ToneWinner AD-86D amplifier is based on the professional version with the addition of a high-quality audio decoder and Bluetooth audio module. The top-end audiophile chip from the American company Analog Devices AD1955 is used as a DAC, which has higher quality ratings than the AD-1853 and a sampling rate of 192 kHz with a 24-bit bit rate.

  • AD-66D

    Integrated amplifiers

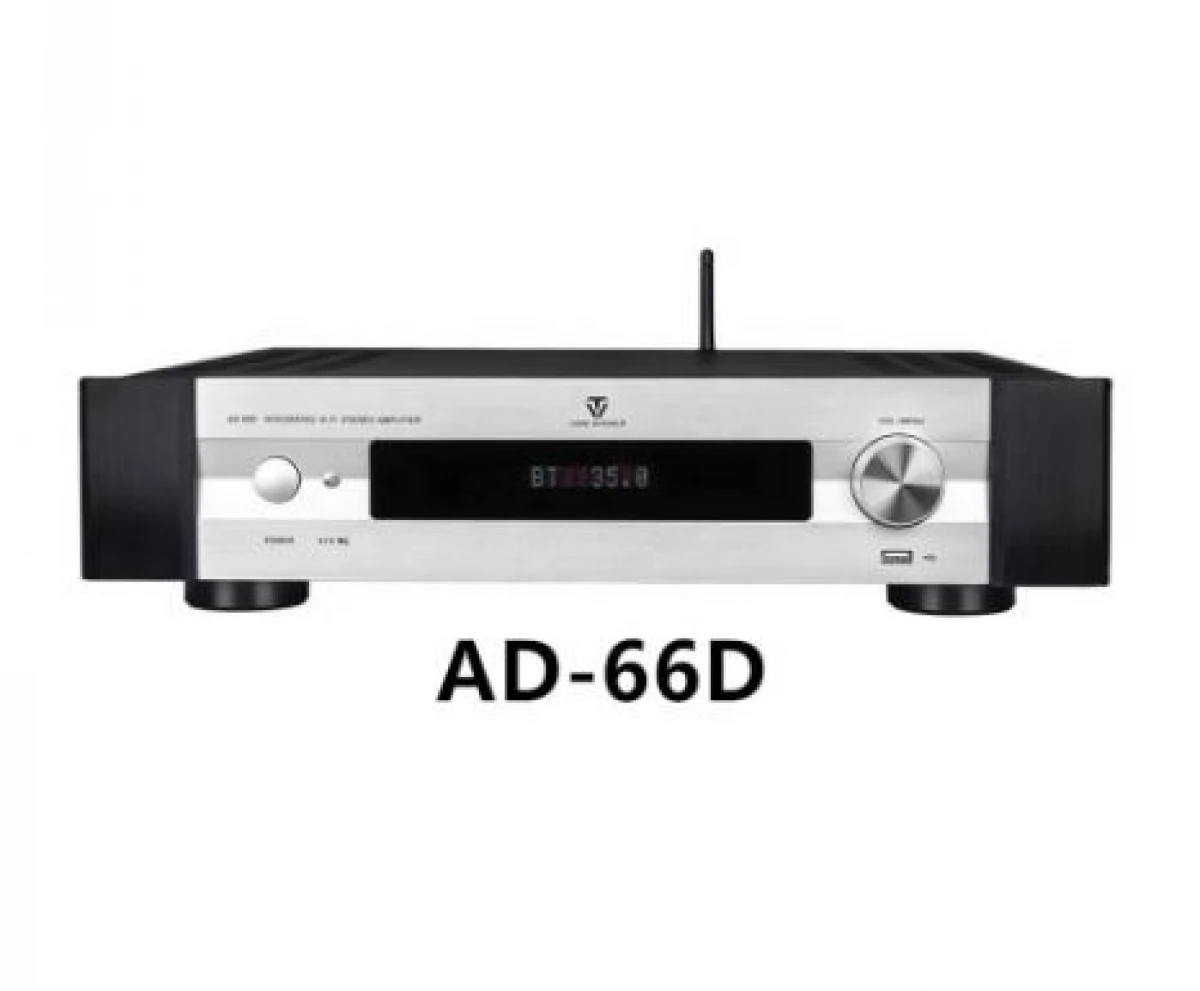

    Tone Winner AD-66D
