Cartidges — Rega Nd9
Description, images, technical data and specifications

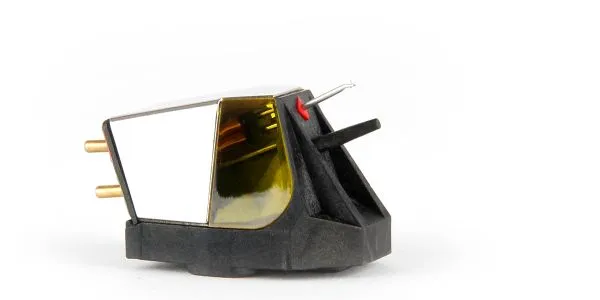

Rega Nd9
Image source — © Rega
The cartridge is equipped with a boron cantilever with a Fine Line needle, inherited from the Aphelion 2 reference MC head. The boron cantilever is characterized by exceptional rigidity and low weight, which ensures ultra-fast response and excellent accuracy in tracking the groove of the plate. The Rega Nd9 head is offered as a factory option for the Rega Planar 8 vinyl record player.
Specifications
Model name
Nd9
Type
MM
Stylus
Fine Line nude diamond profile
Body
N/A
Cantilever
Boron
Coils
Miniaturised parallel coils
Output voltage (mV@5cm/sec)
5-6
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Internal impedance (Ohm)
N/A
Channel separation (dB / 1,000 Hz)
N/A
Compliance (×10-6cm/dyne at 100Hz)
N/A
Recommended load (Ohm)
N/A
Recommended tonearms
N/A
Weight (g)
1.75
