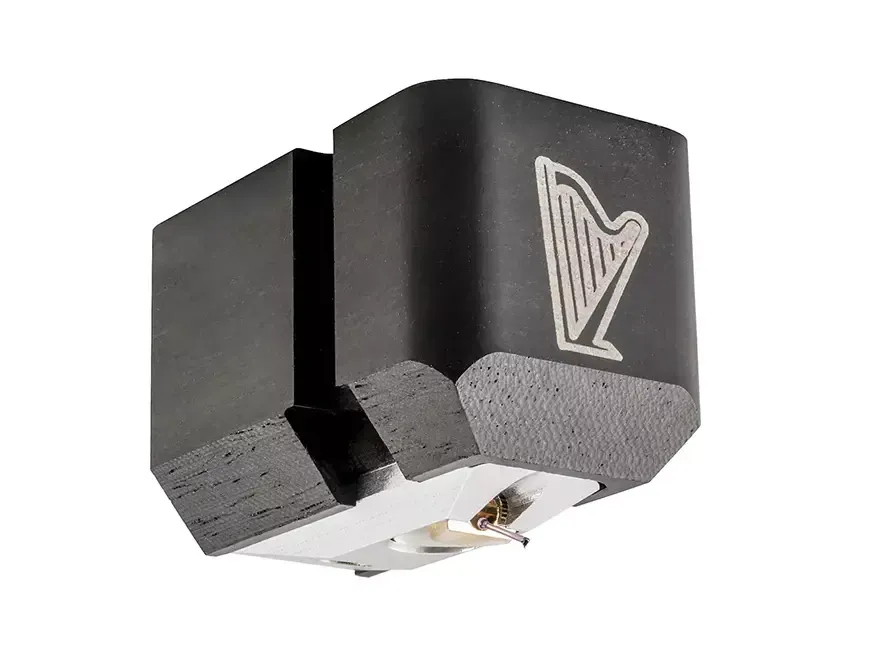

OTTA Mandolin
Image source — © OTTA

The body of the new OTTA Mandolin MC cartridge is milled on red sandalwood CNC machines. The wooden elements cover the aluminum base engine with minimal tolerances. The head is equipped with a patented magnetic system with an increased magnetic gap and samarium-cobalt magnets. It provides a uniform magnetic field and guarantees rich, full-bodied sound at medium and low frequencies.

Specifications

  • Model name

    Mandolin

  • Type

    MC

  • Stylus

    N/A

  • Body

    Red Sandalwood

  • Cantilever

    N/A

  • Coils

    Pure Iron Cross Coil

  • Output voltage (mV@5cm/sec)

    0.35

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    25 000

  • Internal impedance (Ohm)

    5

  • Channel separation (dB / 1,000 Hz)

    >30

  • Compliance (×10-6cm/dyne at 100Hz)

    N/A

  • Recommended load (Ohm)

    10 - 470

  • Recommended tonearms

    Medium

  • Weight (g)

    8.4

  • Official link

    N/A

OTTA Mandolin
