Hifiverse

Cartidges — Audio Note IQ III

Description, images, technical data and specifications

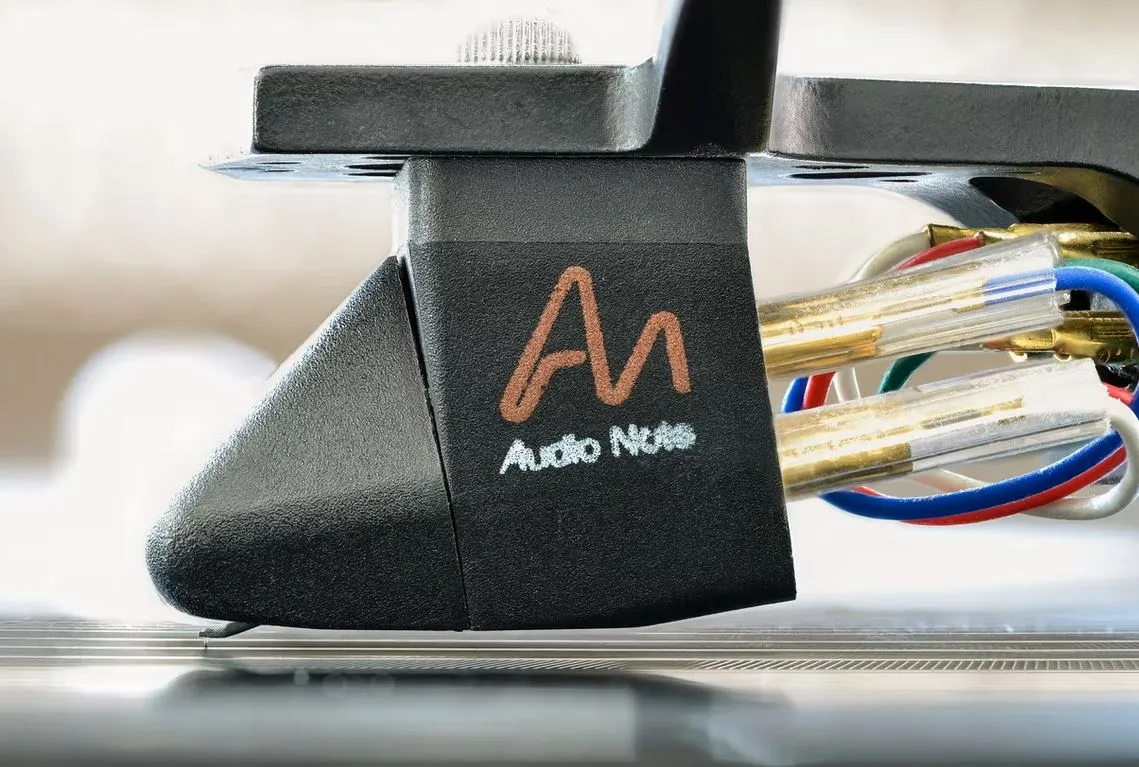

Audio Note IQ III
Image source — © Audio Note

The IQ3, unlike the younger models in the series, uses a titanium needle holder. Combined with diamond-ground Gyger Type I profile, IQ3 pickups provide an incredible level of performance for moving magnet designs.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    IQ III

  • Type

    MM

  • Stylus

    Type 1

  • Body

    Pocon

  • Cantilever

    Titanium

  • Coils

    Copper wire

  • Output voltage (mV@5cm/sec)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Internal impedance (Ohm)

    660

  • Channel separation (dB / 1,000 Hz)

    25

  • Compliance (×10-6cm/dyne at 100Hz)

    N/A

  • Recommended load (Ohm)

    N/A

  • Recommended tonearms

    N/A

  • Weight (g)

    6.3

  • Official link

    https://www.audionote.co.uk/iq3
