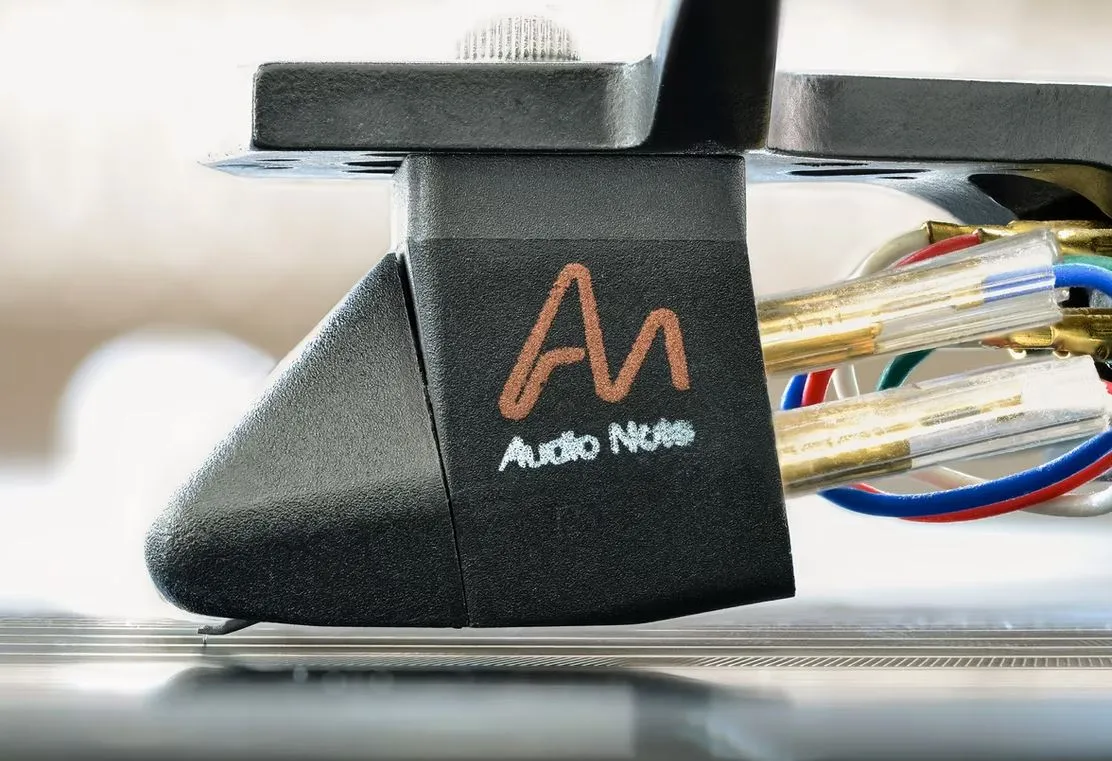

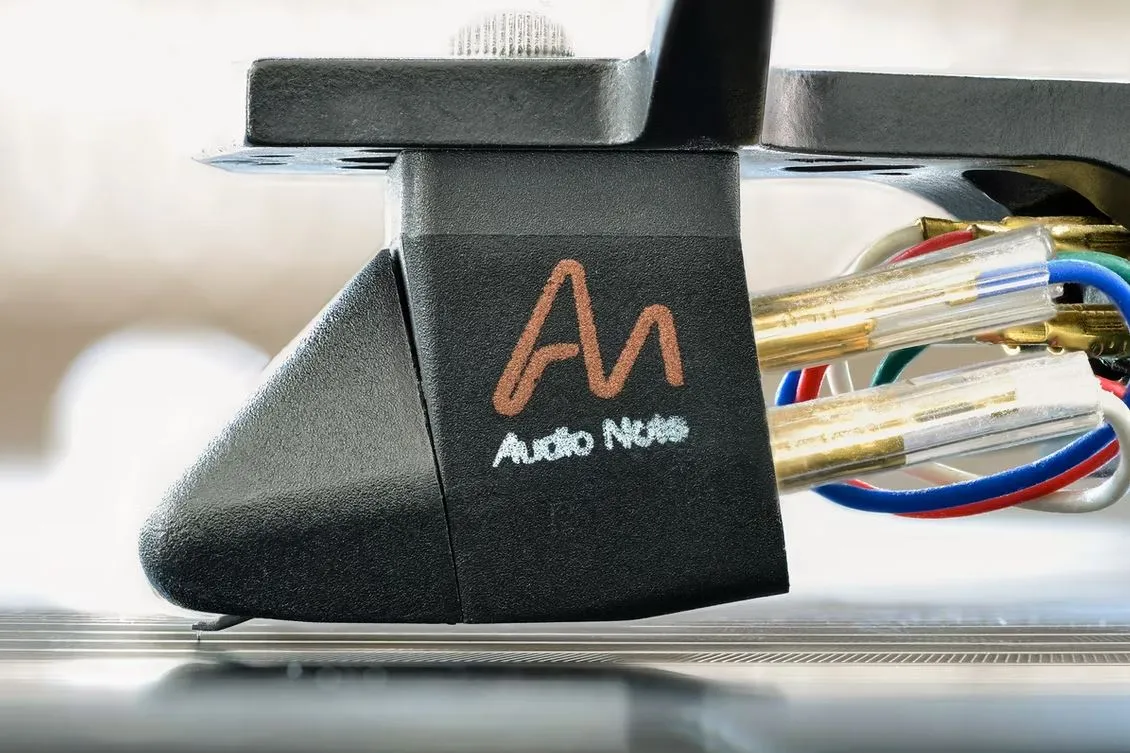

Audio Note IQ II
Image source — © Audio Note
The coils in all IQ pickup models are made of high purity copper wire (99.999%) and incredibly small diameter. People often ask us why we don't release the "silver" version of IQ pickups. The reason is very simple: the production of silver wires of such a small caliber is impossible.
Specifications
Model name
IQ II
Type
MM
Stylus
Audio Note Type II
Body
Pocon
Cantilever
Aluminium tube
Coils
Copper wire
Output voltage (mV@5cm/sec)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Internal impedance (Ohm)
660
Channel separation (dB / 1,000 Hz)
25
Compliance (×10-6cm/dyne at 100Hz)
N/A
Recommended load (Ohm)
N/A
Recommended tonearms
N/A
Weight (g)
6.3
