Hifiverse

Preamplifiers — Audia Flight STRUMENTO n° 1

Description, images, technical data and specifications

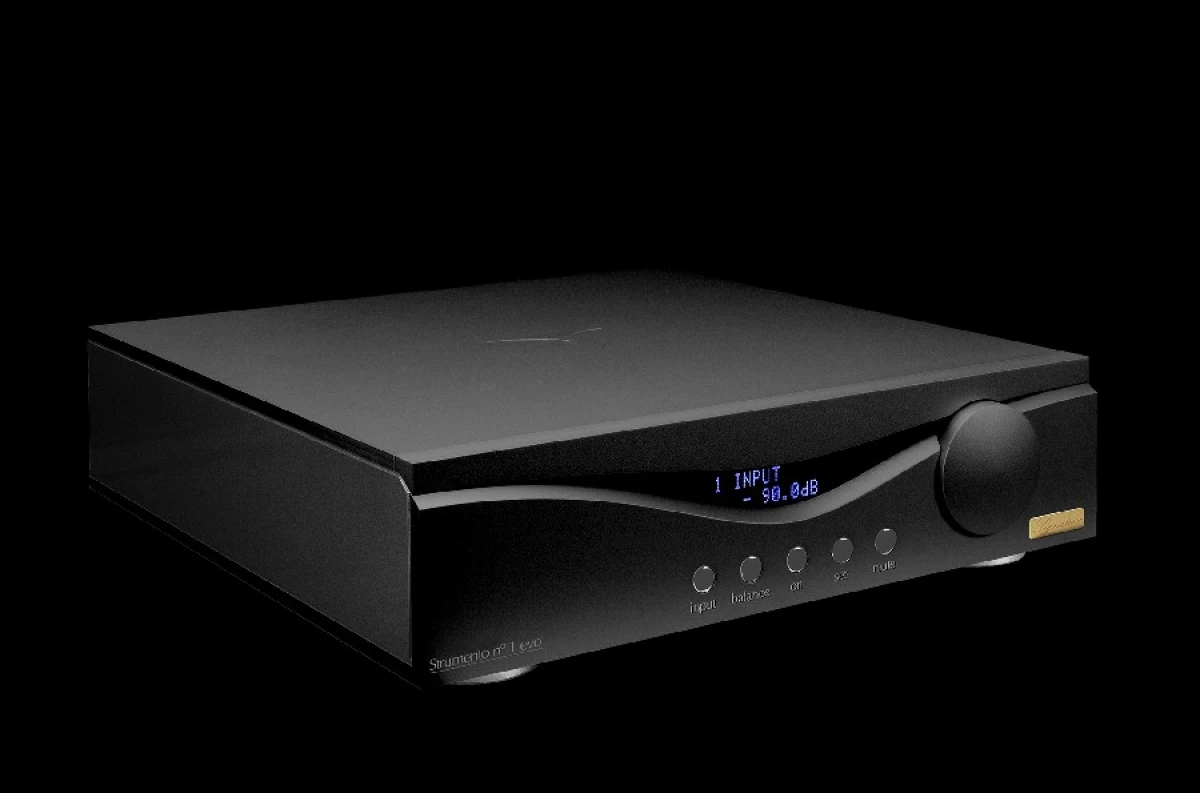

Audia Flight STRUMENTO n° 1
Image source — © Audia Flight

The Audia Flight Strumento N°1 MK2 stereo preamp is the perfect device to transmit the perfect signal with precision, dynamics and incredible speed (bandwidth over 1 MHz) to any power amplifier. During the creation, the engineers used the most accurate tool, human hearing, to help set up the circuits in the original Strumento N°1 (small but critical changes include the selection of resistor and capacitor ratings).

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    STRUMENTO n° 1

  • Analog inputs (balanced)

    3

  • Analog inputs (single-ended)

    2

  • Analog outputs (balanced)

    2

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    90

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    15 000

  • Input impedance (single-ended) (Ω)

    15 000

  • Output impedance (balanced) (Ω)

    5

  • Output impedance (single-ended) (Ω)

    5

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    1

  • Frequency response high +/- 3dB (Hz)

    1 000 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    105

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0,05

  • Dimensions (mm)

    450 x 120 x 450

  • Weight (kg)

    38.5

  • Official link

    https://www.audia.it/products/strumento-1/preamplifiers-8/strumento_n_1-1.html
