Preamplifiers — Audia Flight FLS1
Description, images, technical data and specifications

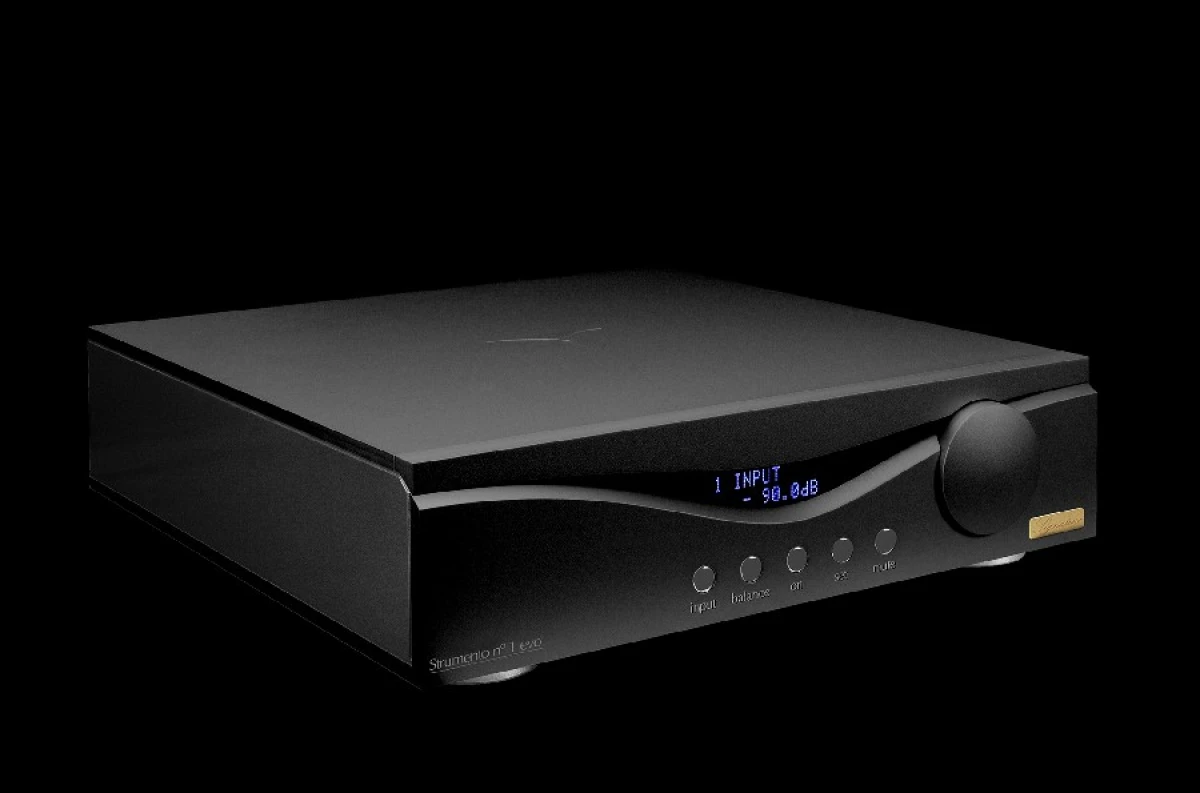

Audia Flight FLS1
Image source — © Audia Flight
The device is built according to the "double mono" scheme, the level adjustment is performed on separate boards for each of the channels. The power supply is based on as many as three fully shielded toroidal transformers. There is also a CPU circuit that provides for the possibility of disabling inactive inputs, adjusting sensitivity and gain (within 6 dB).
Specifications
Model name
FLS1
Analog inputs (balanced)
2
Analog inputs (single-ended)
3
Analog outputs (balanced)
1
Analog outputs (single-ended)
1
Gain (dBu)
90
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
<1
Output impedance (single-ended) (Ω)
<1
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
0.3
Frequency response high +/- 3dB (Hz)
500 000
Signal to Noise Ratio (SNR, unweighted) (dB)
110
Total Harmonic Distortion + Noise (THD+N) (%)
< 0,05
Dimensions (mm)
450x120x380
Weight (kg)
15
Official link
