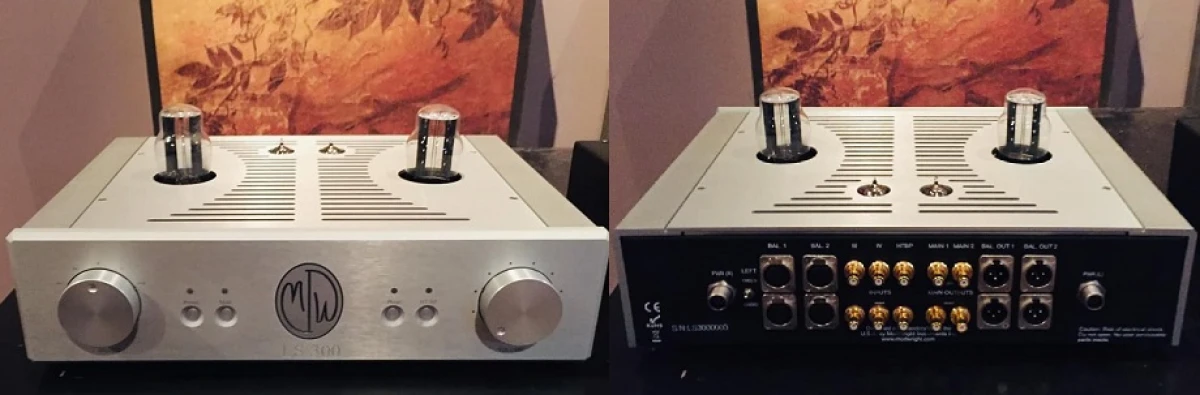

ModWright Instruments LS 100
Image source — © ModWright Instruments

If we talk about the functionality of the ModWright Instruments LS 100, then it is quite expected from a device of this class – nothing superfluous and no settings. All the functionality is configured exclusively for the various switching capabilities of the preamplifier. Both RCA and XLR connectors are available to the owner of the device, but despite the presence of the latter, the LS 100 preamp is not symmetrical, but only allows you to connect symmetrical sources to it (if they do not have RCA output connectors).

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    LS 100

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    4

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    11 + 46 (MM) + 63 (MC)

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    38 000

  • Input impedance (single-ended) (Ω)

    38 000

  • Output impedance (balanced) (Ω)

    300

  • Output impedance (single-ended) (Ω)

    300

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    N/A

  • Total Harmonic Distortion + Noise (THD+N) (%)

    N/A

  • Dimensions (mm)

    450.8 × 444.5 × 165.1

  • Weight (kg)

    11.34

  • Official link

    https://www.modwright.com/products/ls-100-tube-preamp/
