Power amplifiers stereo — Rotel RB-1552 MkII

Name: RB-1552 MkII
Brand: Rotel
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Rotel RB-1552 MkII
Image source — © Rotel

The Rotel RB-1552 MkII amplifier operates in class A/B and outputs 120 watts into each of the two channels. Its design is built with high power and reliability, but at the same time, the main focus is on the ability to extract the finest nuances from even the most complex musical compositions. The fanatical attention of Rotel engineers to the smallest details means that the total amount of their efforts becomes more than its components – this is the company's Balanced Design Concept.

Specifications

Model name
RB-1552 MkII
Input sensitivity (mV)
2.5 (XLR) + 1.5 (RCA)
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
12 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
130
Output power (4Ω) (W)
185
Gain (dBu)
22.5 (XLR) + 26.5 (RCA)
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
400
Damping factor
450
Dimensions (mm)
431 × 144 × 339
Weight (kg)
12.4
Official link
https://rotel.com/product/rb-1552-mkii

Rotel RB-1582 MkII

Rotel RMB-1587MKII

More components

Power amplifiers stereo
Rotel C8
The Rotel C8 installation amplifier combines high sound quality with efficiency. It operates in the AB class and outputs 70 watts of premium audio to each of the 8 channels on 4-ohm speakers, or 140 watts in bridge mode using Rotel's proprietary amplification technology.
Power amplifiers stereo
Rotel C8+
The Rotel C8+ installation amplifier combines high sound quality with efficiency, as it builds on our 60 years of experience in creating advanced designs with high value. It operates in the AB class and outputs 150 watts of premium audio to each of the 8 channels, while simultaneously operating on 4-ohm speakers using Rotel's proprietary amplification technology.
Power amplifiers stereo
Rotel RMB-1506
Like other Rotel multichannel amplifiers, the RMB-1506 is equipped with all the most demanded functions for custom installations. Rotel 15 Series components can be rack-mounted and remotely controlled via RS-232, IR, or a 12V trigger signal (depending on the model) for fully stealthy operation in the cabinet. Audiophile Class D design with high efficiency attenuation adjustment on the front panel. 12V trigger signal, input signal detection.
Power amplifiers stereo
Rotel RMB-1504
The Rotel RMB-1504 four-channel audio amplifier operates in class AB and provides stable power of 70 watts per channel of 8 ohms and 115 watts at a load of 4 ohms, without any compromises. This amplifier will provide power and detailed sound processing for the speakers included in the home theater system or multiroom system.
Power amplifiers stereo

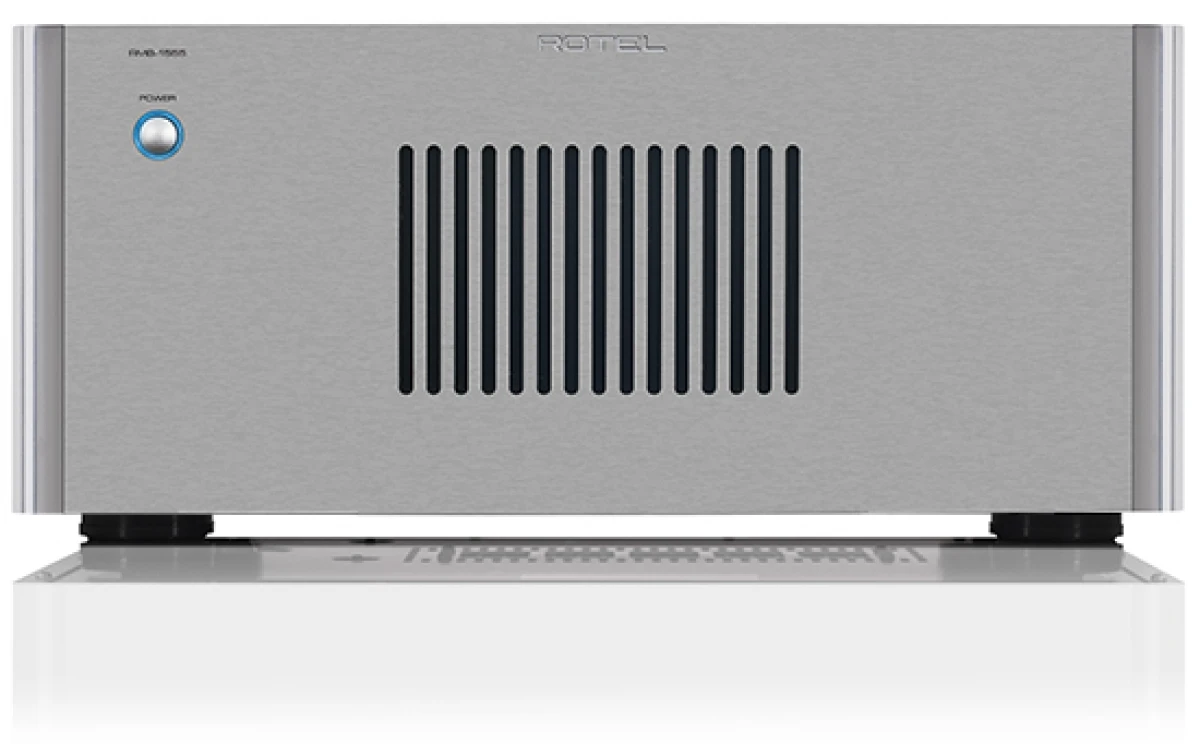

Rotel RMB-1555
