Power amplifiers stereo — Luxman M-900u

Name: M-900u
Brand: Luxman
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Luxman M-900u
Image source — © Luxman

The flagship has a massive 48-kilogram body with a front aluminum panel, which has two arrow level indicators with original white LED backlight. On the facade there is a power/standby key with an indication of operating modes, an input selection button with two LEDs, a backlight off button and an LED diode indicating the activation of BTL bridge mode.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
M-900u
Input sensitivity (mV)
1240
Input impedance (balanced) (Ω)
34 000
Input impedance (single-ended) (Ω)
51 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
1200 (1 Ω) + 2400 (2 Ω)
Output power (4Ω) (W)
N/A
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
130 000
Signal to Noise Ratio (dB)
117
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.008
Max power consumption (W)
540
Damping factor
710
Dimensions (mm)
440 x 224 x 485
Weight (kg)
48
Official link
https://www.luxman.com/product/detail.php?id=19

Luxman M-10X

Luxman M-700u

More components

Power amplifiers stereo

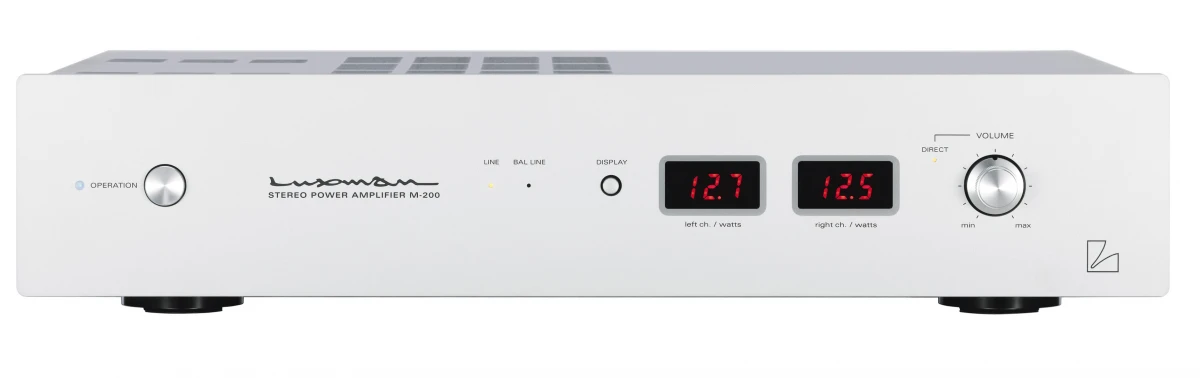

Luxman M-200
The M200 model was created specifically for use in a stereo system that includes an external DAC, and uses a computer or media player as the source. The amplifier has a push-pull circuit using discrete elements. The following inputs are present on the back of the case: balanced XLR, standard RCA. The M-200 power amplifier is a good option for systems with shelf speakers located in small rooms.
Power amplifiers stereo

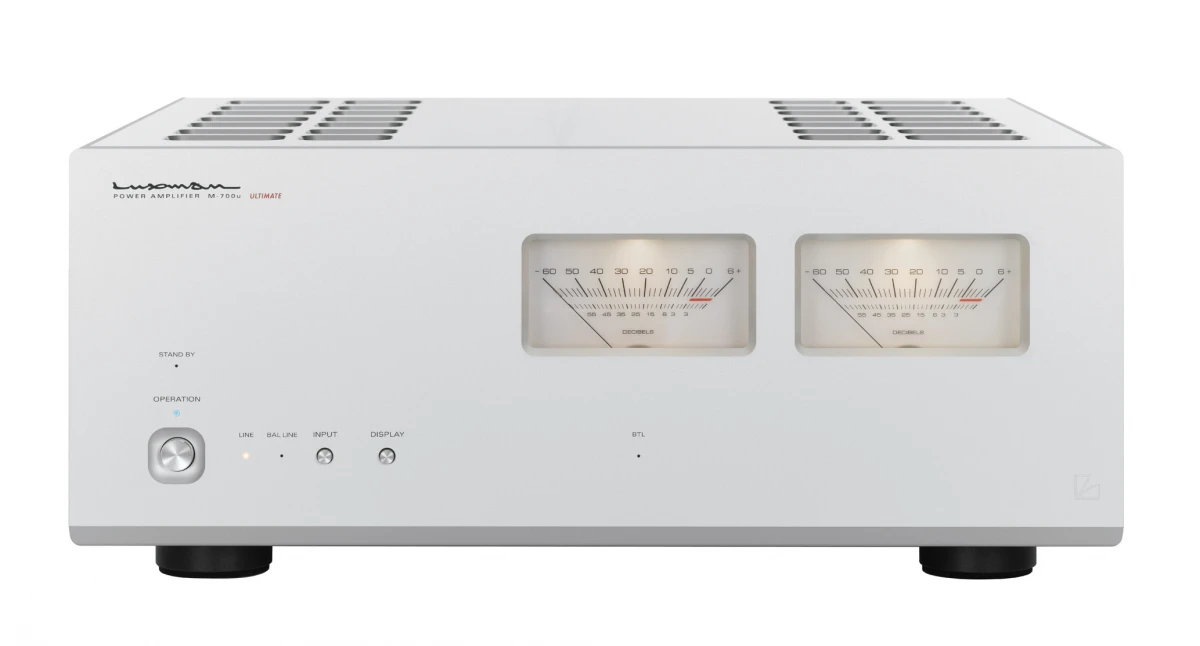

Luxman M-700u
The Luxman M-700u dual-channel power amplifier is made in the classic design of the company, with a laconic front panel, the main decoration of which is the arrow indicators of the signal strength.
Power amplifiers stereo

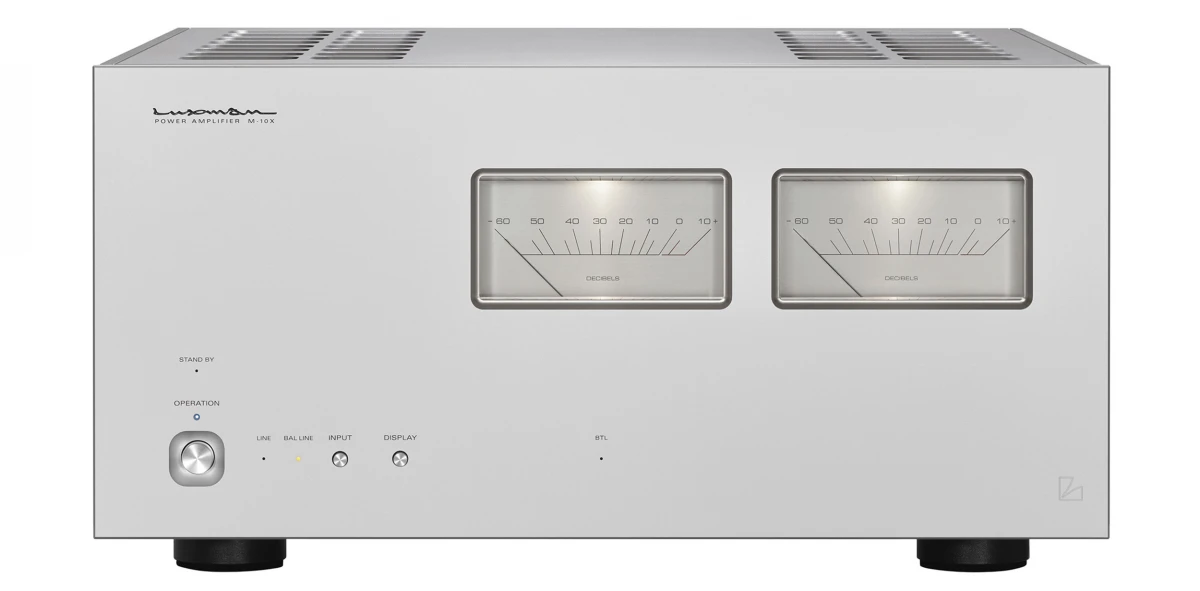

Luxman M-10X
The amplifier weighs 48.4 kg and is capable of delivering 2 × 150 watts with a speaker resistance of 8 ohms and 2 × 1,200 watts with a resistance of 1 ohm. It is reported about the "stadium" single-channel 2.4 kW at 2 ohms in BTL mode. The high damping coefficient helps to cope with even the most difficult speakers.
Power amplifiers stereo

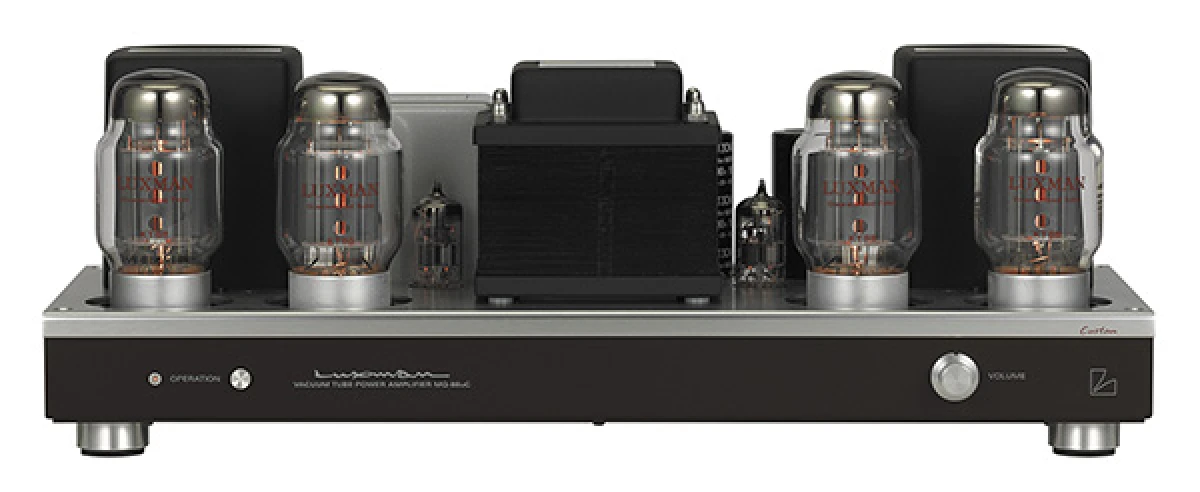

Luxman MQ-88uC
This tube preamp from the textbook is attractive not only for its vintage look, but also thanks to Luxman's traditional technologies of the highest quality, including transformers for MC cartridges. Top-notch sound: open, fast and strikingly authentic, especially in the midrange.
Power amplifiers stereo

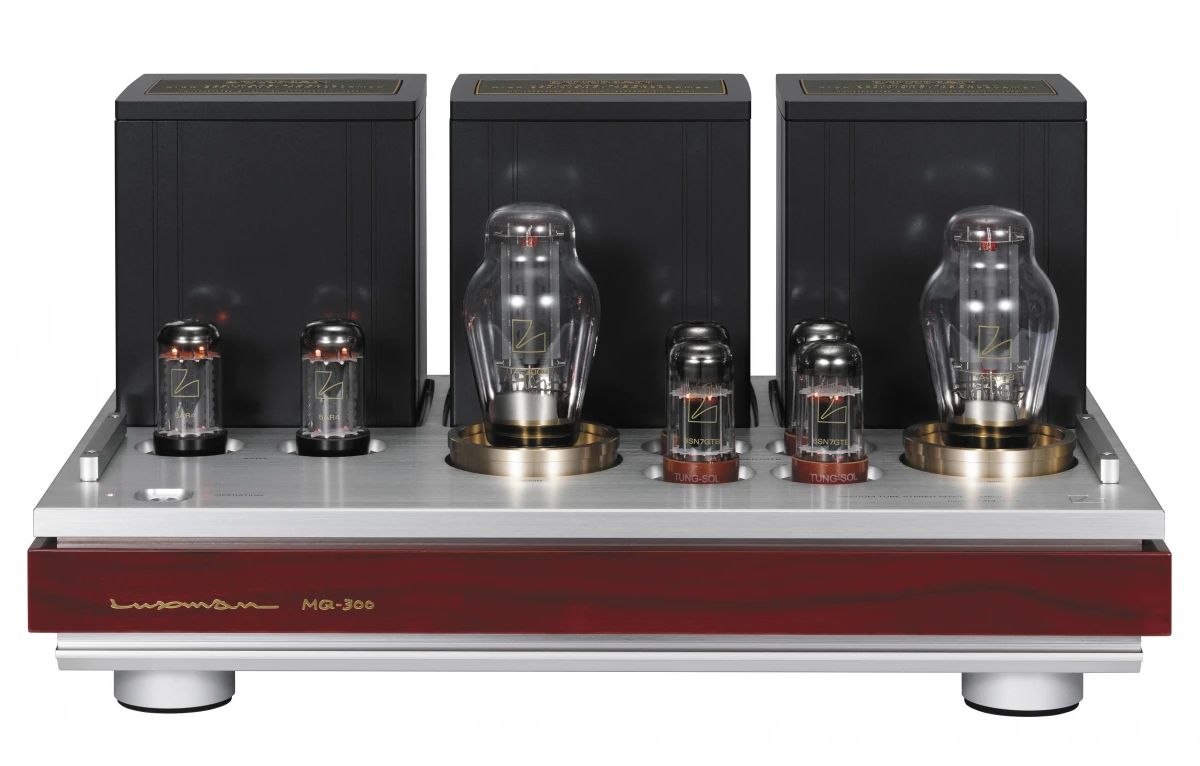

Luxman MQ-300
