Power amplifiers stereo — Bryston 14B Cubed

Description, images, technical data and specifications

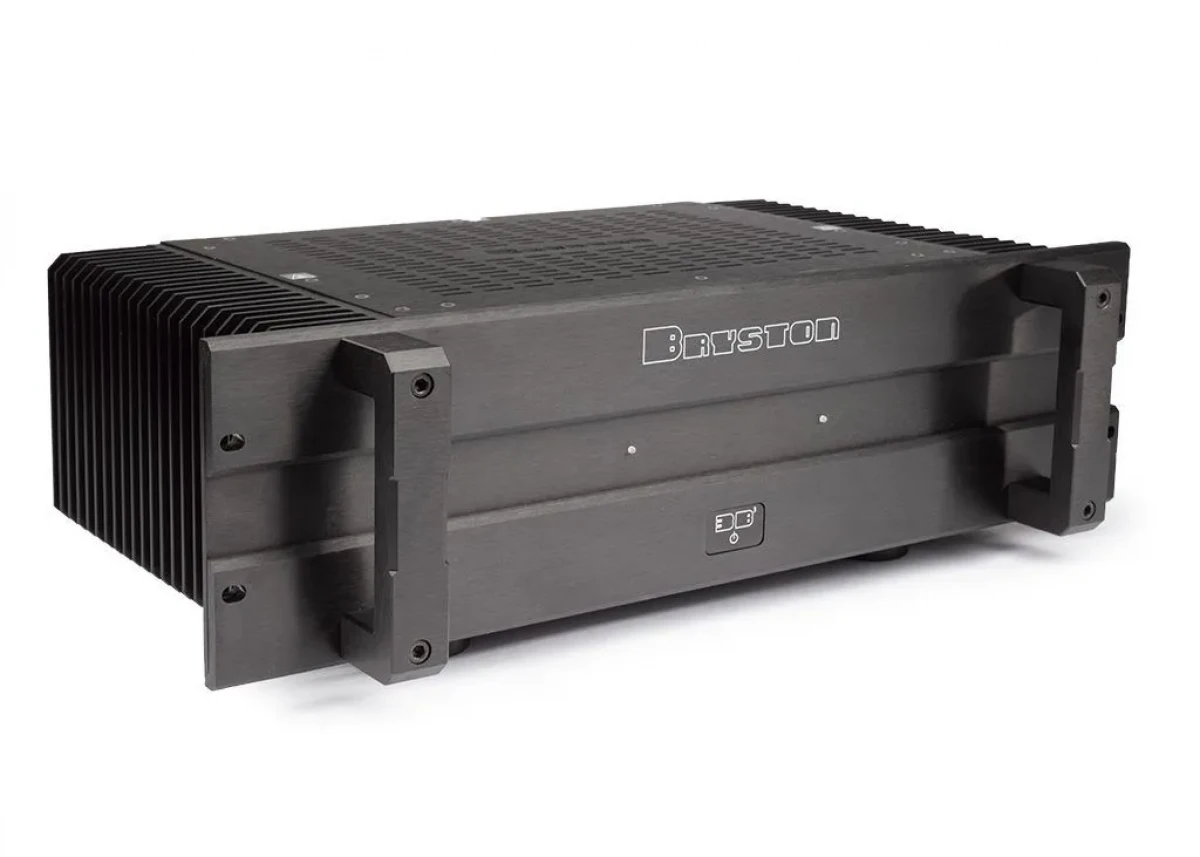

Bryston 14B Cubed
Image source — © Bryston

The new generation of amplifiers has noticeably improved protection against various interference, redesigned power supply, now StandBy consumption is less than 500 MW, and the design has been modernized (a decorative overlay has appeared in the center of the front panel, and additional chamfers have been made on the handles). The remaining electrical characteristics and switching capabilities remained at the highest level of Bryston. Like all Bryston devices, the 14 B3 amplifier can be available in both black and silver colors, as well as in a 17- or 19-inch front panel design.

Specifications

  • Model name

    14B Cubed

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    5000

  • Input impedance (single-ended) (Ω)

    7500

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    600

  • Output power (4Ω) (W)

    900

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    1

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    120 (XLR), 118 (RCA)

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.005

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    432 х 423 х 206

  • Weight (kg)

    41

  • Official link

    https://bryston.com/amplifiers/14b3/

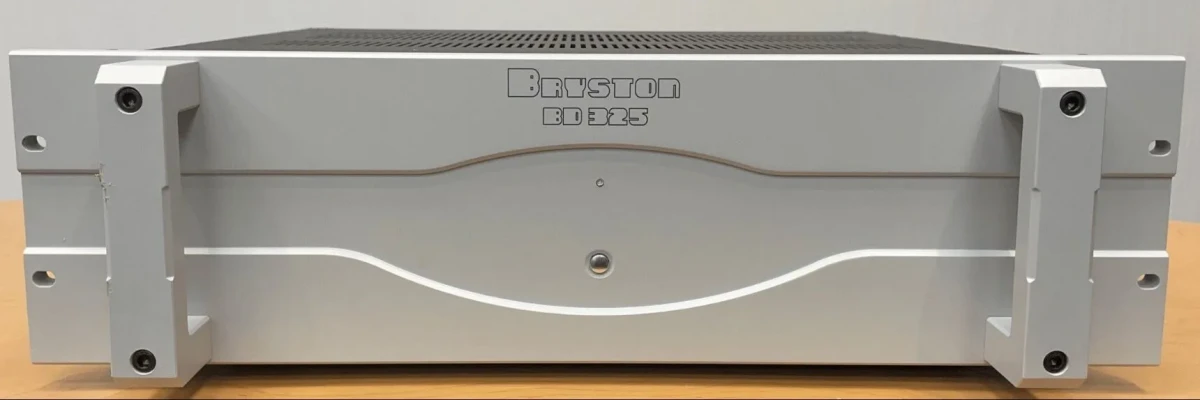

Bryston BD-325

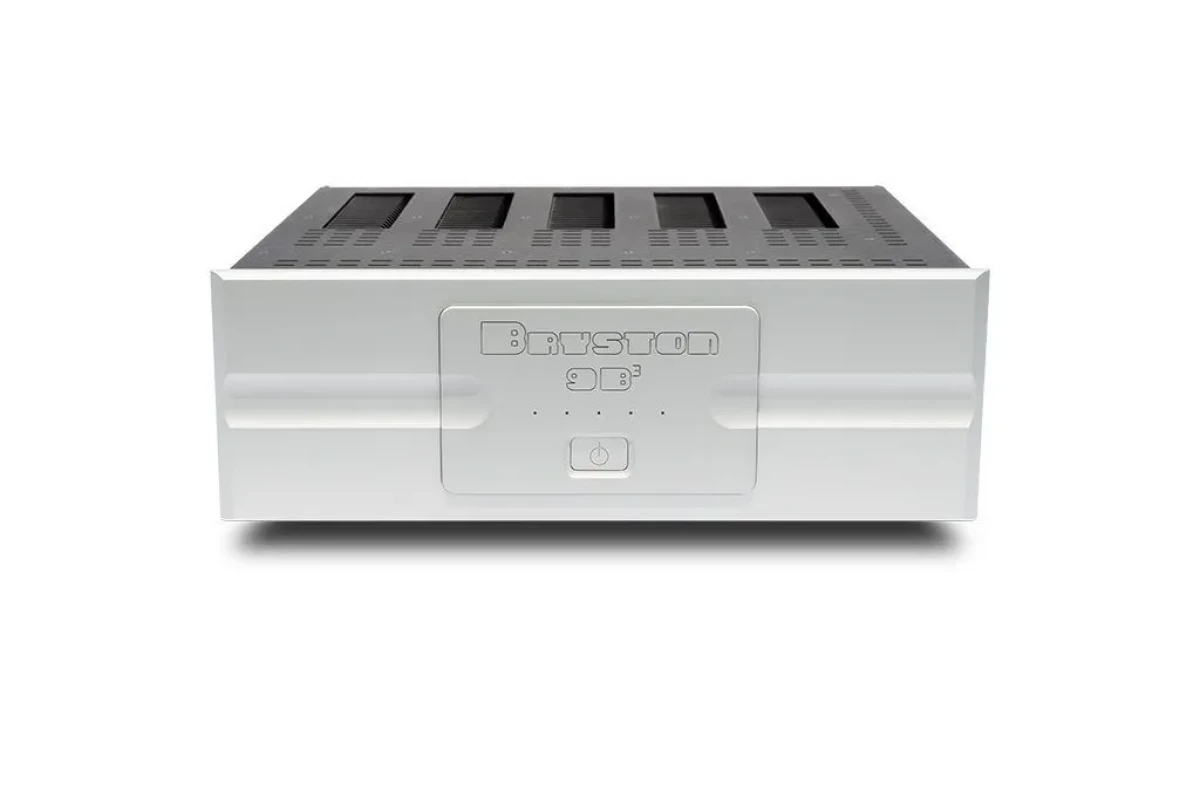

Bryston 9B Cubed
