Power amplifiers mono — Audionet HEISENBERG

Description, images, technical data and specifications

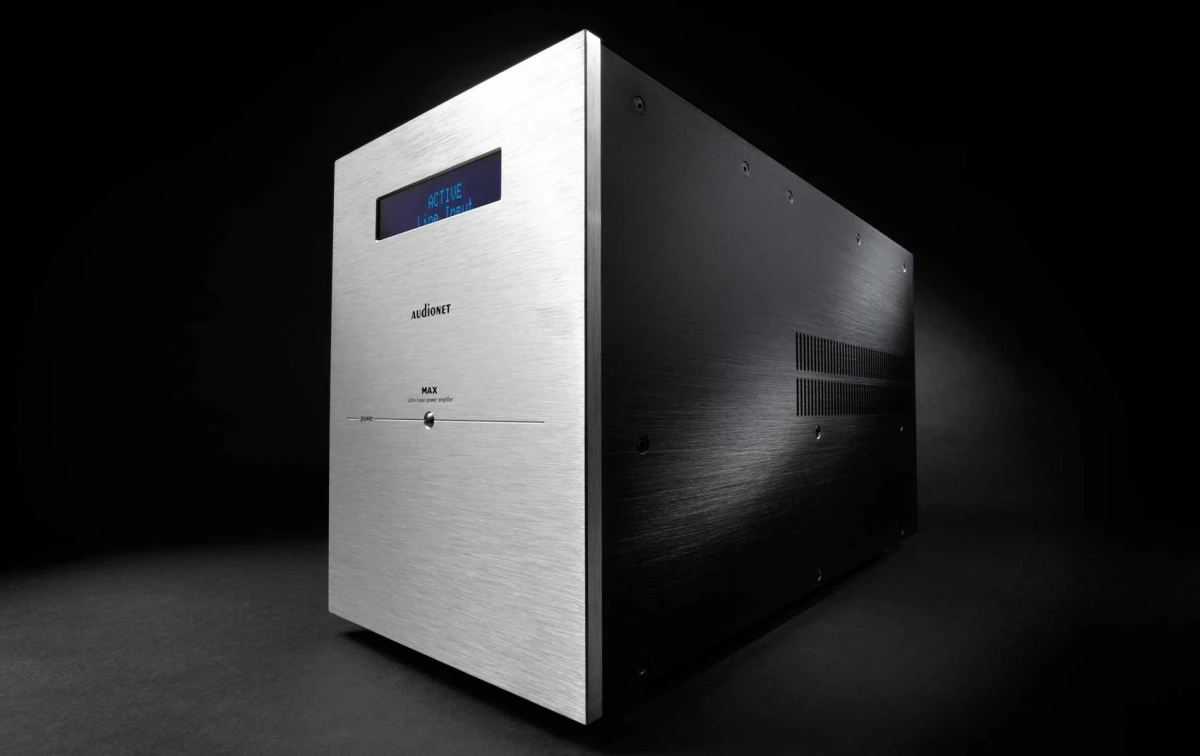

Audionet HEISENBERG
Image source — © Audionet

The patented Floating Pane Design provides excellent audiophile qualities. The Heisenberg power amplifier is even higher than our winner of numerous awards, ART and VIP (the best sound "2015" at RMAF, AXPONA, T.H.E.SHOW and HIGHEND).

Specifications

  • Model name

    HEISENBERG

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    7000

  • Input impedance (single-ended) (Ω)

    50 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    530

  • Output power (4Ω) (W)

    1050

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0

  • Frequency response high +/- 3dB (Hz)

    700 000

  • Signal to Noise Ratio (dB)

    > 125

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    2400

  • Damping factor

    > 1800 @ 10 kHz

  • Dimensions (mm)

    270 × 500 × 490

  • Weight (kg)

    66

  • Official link

    https://en.audionet.de/machines/heisenberg/
