Power amplifiers mono — Audionet AMP
Description, images, technical data and specifications

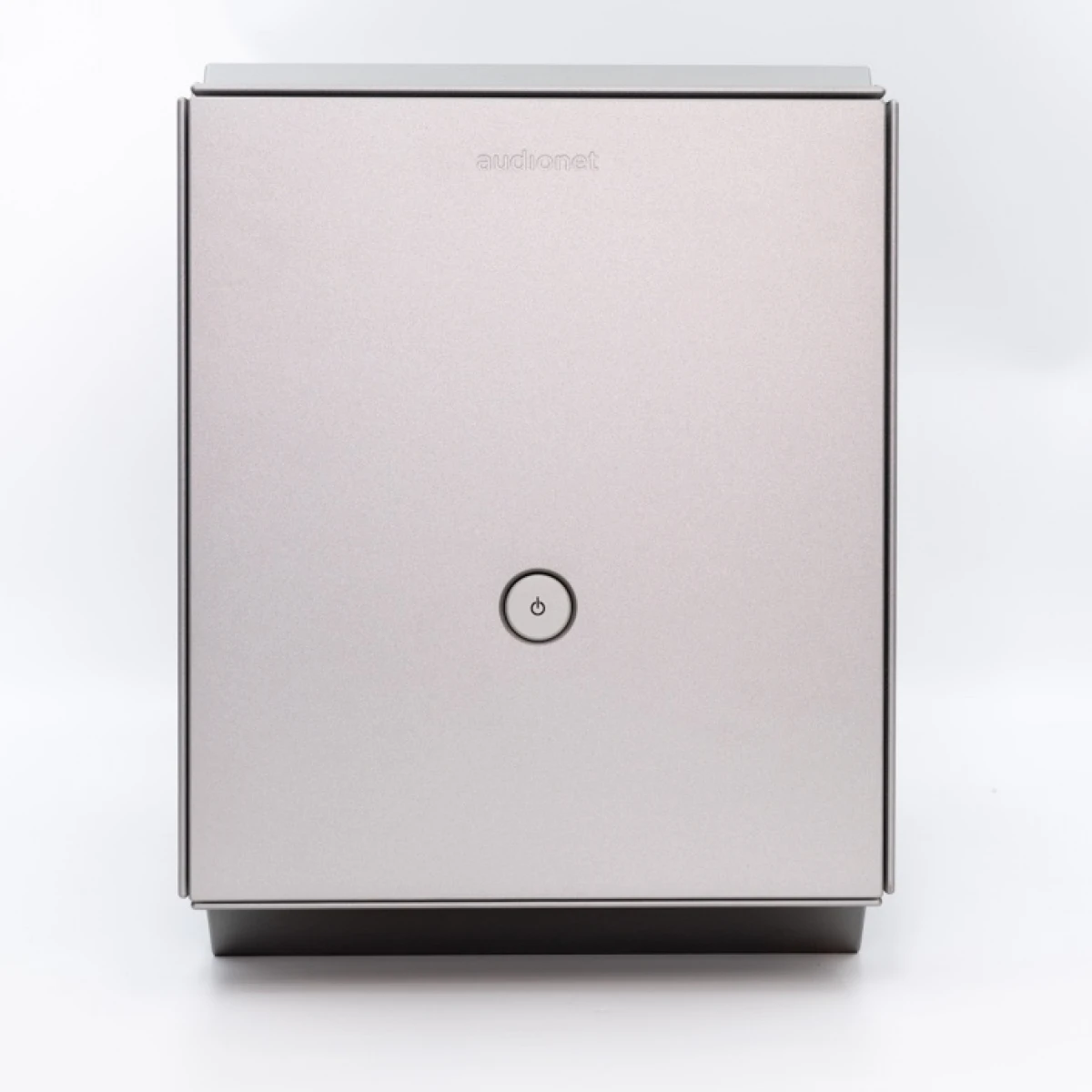

Audionet AMP
Image source — © Audionet
The Audionet amplifier is a two-channel power amplifier made in a massive metal case and weighing 22 kg, which indicates the solidity of its design. On the front panel of the device, made of polished aluminum, there is a single power button, as well as an LED to indicate its operating mode. On the back panel there are RCA connectors for the left and right channels, as well as screw terminals for connecting speakers. All connectors are of high quality and have gold-plated contact surfaces.
Specifications
Model name
AMP
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
3000
Input impedance (single-ended) (Ω)
37 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
350
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
0
Frequency response high +/- 3dB (Hz)
300 000
Signal to Noise Ratio (dB)
> 122
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
1000
Damping factor
> 1800 @ 10 kHz
Dimensions (mm)
215 × 190 × 500
Weight (kg)
22
Official link
