Audionet WATT
Image source — © Audionet

The total capacity is more than 200,000 UF. Dual mono design for the phono corrector module for MM and MC heads, user-defined settings. Internal wiring with pure silver cables with gold plating. Furutech rhodium terminals for acoustic outputs. A rhodium fuse. Bypass mode for integration into home theater systems.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    WATT

  • Type

    N/A

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    7000

  • Input impedance (single-ended) (Ω)

    50 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    167

  • Output power (4Ω) (W)

    284

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0.3

  • Frequency response high +/- 3dB (Hz)

    650 000

  • Signal to Noise Ratio (dB)

    >106

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    1000

  • Dimensions (mm)

    430 × 130 × 450

  • Weight (kg)

    25

  • Official link

    https://en.audionet.de/machines/watt/

Audionet HUMBOLDT

Audionet SAM 20 SE

More components

  • SAM 20 SE

    Integrated amplifiers

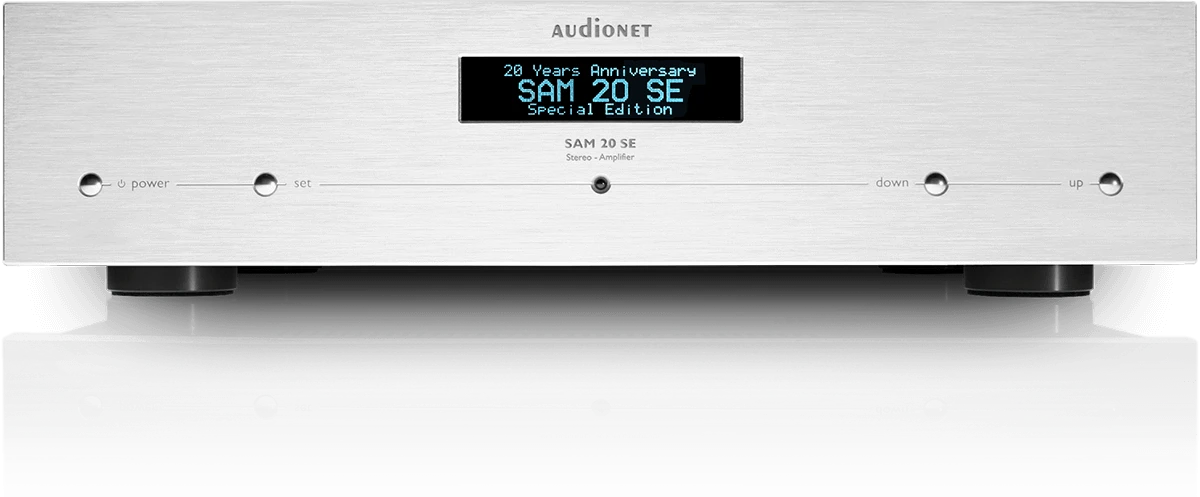

    Audionet SAM 20 SE
