Integrated amplifiers — Canor Audio Virtus A3

Name: Virtus A3
Brand: Canor Audio
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Canor Audio Virtus A3
Image source — © Canor Audio

The Canor Virtus A3 hybrid integrated amplifier provides an output power of 100 watts per channel when operating on a load with a nominal resistance of 8 ohms and 150 watts for a load of 4 ohms. The power amplifier uses differential feedback, which reads the audio output at both the positive and negative speaker terminals to ensure maximum linearity.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
Virtus A3
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
2
Analog inputs (single-ended)
2 + 1 (Phono)
Input sensitivity (mV)
550
Input impedance (balanced) (Ω)
50 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
100
Output power (4Ω) (W)
150
Gain (dBu)
34.5
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
35 000
Signal to Noise Ratio (dB)
> 90
Total Harmonic Distortion + Noise (%)
< 0.008 % / 1 kHz, 1 W
Damping factor
N/A
Dimensions (mm)
435 x 130 x 460
Weight (kg)
18
Official link
https://canor-audio.com/virtus-a3

More components

Integrated amplifiers

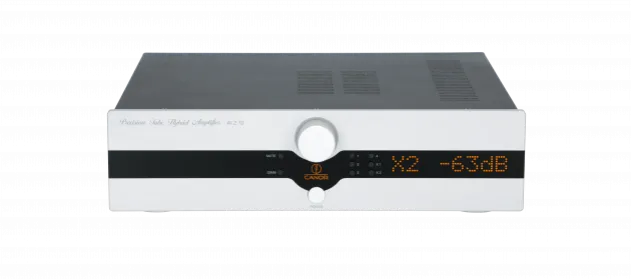

Canor Audio AI 2.10
Hybrid integrated amplifier 2 x 150 W with a tube pre-stage and a discrete volume control based on resistive arrays and relay switching. The output stage is transistor, operating in Class D with analog power supply.
Integrated amplifiers
Canor Audio AI 1.10
KT88 tube integrated amplifier in pure class A with operational switching of output stage modes (triode – ultralinear). The offset of the output stage is automatic. There is a possibility of bridging to implement the monoblock mode without an additional pre-amplifier. The volume is controlled using resistive attenuators with relay switching (separate for each channel). In the monoblock mode, the volume controls are synchronized according to the Master-Slave principle.
Integrated amplifiers

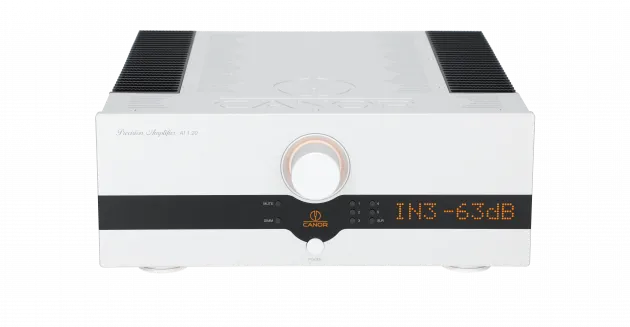

Canor Audio AI 1.20
A transistor integrated amplifier in pure class A with an output power of 50 Watts with the possibility of bridging to implement the monoblock mode of 100 watts each without an additional pre-amplifier. The volume is controlled using resistive attenuators with relay switching (separate for each channel). In the monoblock mode, the volume controls are synchronized according to the Master-Slave principle.
Integrated amplifiers

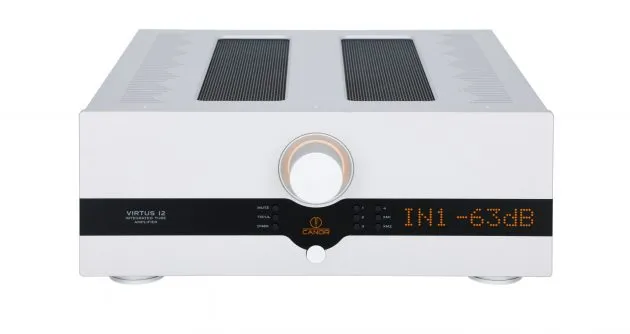

Canor Audio VIRTUS I2
