Integrated amplifiers — Soulnote A-2

Description, images, technical data and specifications

Soulnote A-2
Image source — © Soulnote

Soulnote A-2 is an integrated amplifier equipped with a variety of modes, for example, a new BTL/bi-amp setting. Perfectly balanced discrete channels without NFB. The original perfectly balanced Soul note channels, do not use NFB (negative feedback), are fully optimized and enabled so that sound quality has the highest priority.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    A-2

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    3

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    700

  • Input impedance (balanced) (Ω)

    16 000

  • Input impedance (single-ended) (Ω)

    8 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    100

  • Output power (4Ω) (W)

    200

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    3

  • Frequency response high +/- 3dB (Hz)

    240 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (%)

    0.03

  • Damping factor

    N/A

  • Dimensions (mm)

    430 × 162 × 423

  • Weight (kg)

    20

  • Official link

    https://www.soulnote.co.jp/us_detail_a2.html

Soulnote A-3

Soulnote A-1

More components

  • A-1

    Integrated amplifiers

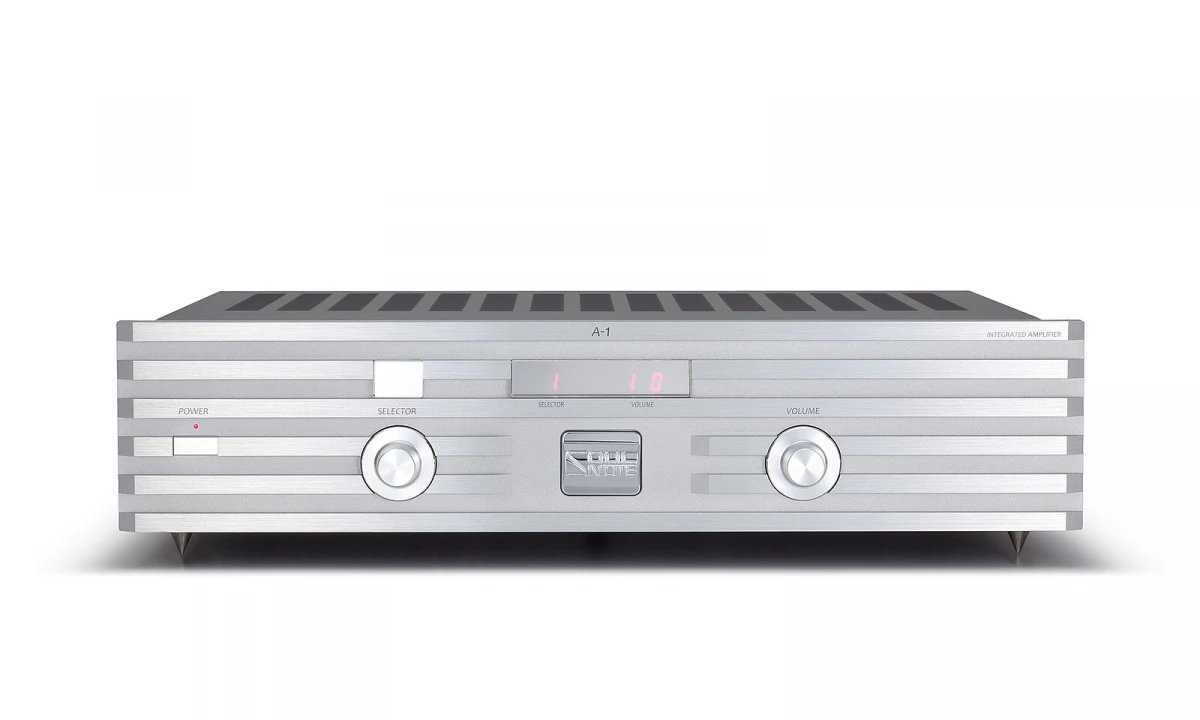

    Soulnote A-1

    The device is built on a solid chassis with a powerful milled front panel. The power supply unit has a toroidal transformer and a set of small-rated filter tanks, which ensures fast operation of the amplifier. The power of the Soulnote A-1 is 80 Watts per channel at 8 ohms and 120 Watts when operating at a load of 4 ohms.

  • A-3

    Integrated amplifiers

    Soulnote A-3

    Integrated amplifier, series: Series 3, output power: 2 x 120 W (4 ohms) Single push-pull, frequency range: 2 Hz - 200 kHz, signal-to-noise ratio: 110 dB, harmonics: 0.27%, circuit: balanced, without OOS, audio inputs: 3 x RCA, 3 x XLR (Volume bypass), dimensions: 454 x 184 x 407 mm, weight: 31 kg,
