Integrated amplifiers — Soulnote A-1

Description, images, technical data and specifications

Soulnote A-1
Image source — © Soulnote

The device is built on a solid chassis with a powerful milled front panel. The power supply unit has a toroidal transformer and a set of small-rated filter tanks, which ensures fast operation of the amplifier. The power of the Soulnote A-1 is 80 Watts per channel at 8 ohms and 120 Watts when operating at a load of 4 ohms.

Specifications

  • Model name

    A-1

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    700

  • Input impedance (balanced) (Ω)

    16 000

  • Input impedance (single-ended) (Ω)

    8 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    80

  • Output power (4Ω) (W)

    130

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    3

  • Frequency response high +/- 3dB (Hz)

    300 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (%)

    0.08

  • Damping factor

    N/A

  • Dimensions (mm)

    456 × 109 × 418

  • Weight (kg)

    11

  • Official link

    https://www.soulnote.co.jp/us_detail_a1.html

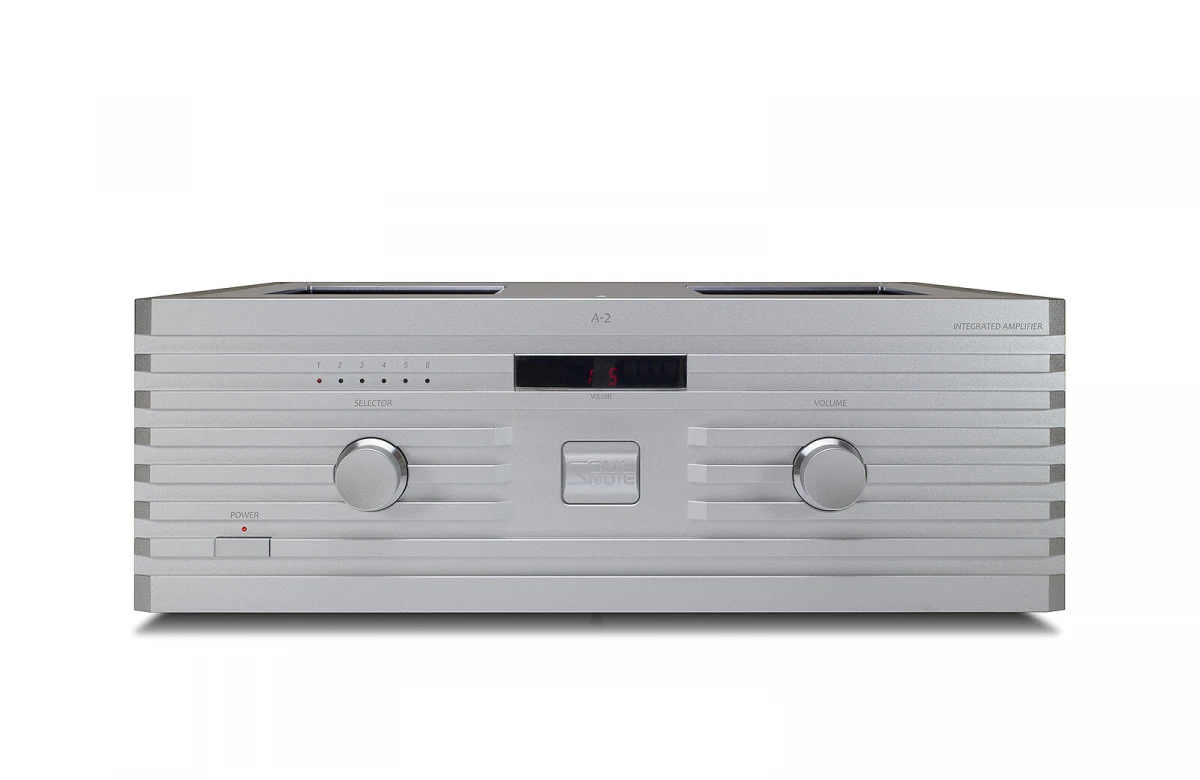

Soulnote A-2
