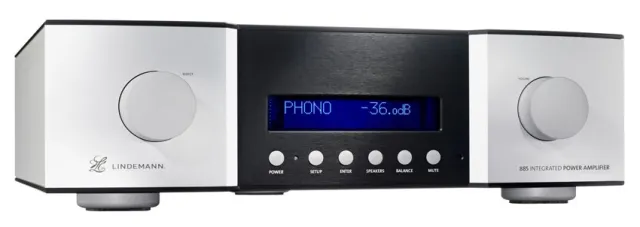

Lindemann 885 Integrated Amplifier
€ 14230
Seller: Nota
Product description
The Lindemann 885 is a display model.
The Lindemann 885 features a very interesting single-ended push-pull design. Previously, this design was used only in vacuum tube amplifiers, but Lindemann was the first to use it in a fully symmetrical transistor amplifier with current feedback. This amplifier design utilizes an H-bridge and uses eight high-power transistors in each channel. Two single-ended amplifiers are combined to form a balanced push-pull amplifier stage. This configuration effectively prevents high-frequency losses caused by eddy currents. The result is exceptionally precise and transparent sound, even at low volumes.
The Lindemann 885 features a very interesting single-ended push-pull design. Previously, this design was used only in vacuum tube amplifiers, but Lindemann was the first to use it in a fully symmetrical transistor amplifier with current feedback. This amplifier design utilizes an H-bridge and uses eight high-power transistors in each channel. Two single-ended amplifiers are combined to form a balanced push-pull amplifier stage. This configuration effectively prevents high-frequency losses caused by eddy currents. The result is exceptionally precise and transparent sound, even at low volumes.
Components
Specifications
Model name
885
Type
Integrated Amplifier with DAC
Analog inputs (balanced)
2
Analog inputs (single-ended)
3
Input sensitivity (mV)
1
Input impedance (balanced) (Ω)
20 000
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
135
Output power (4Ω) (W)
250
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
200 000
Signal to Noise Ratio (dB)
110
Total Harmonic Distortion + Noise (%)
< 0.0005
Damping factor
N/A
Dimensions (mm)
440 x 135 x 360
Weight (kg)
20
Official link
