Power amplifiers mono — Ubiqaudiolab Ubicube 700

Description, images, technical data and specifications

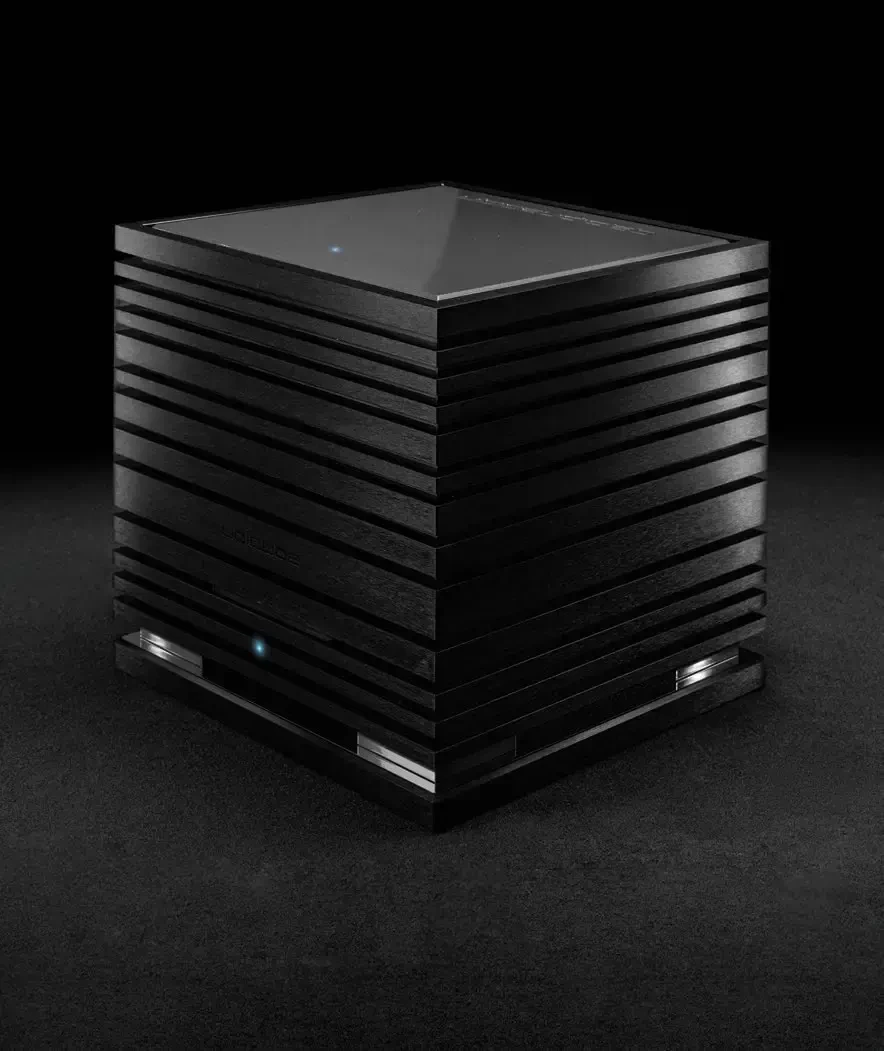

Ubiqaudiolab Ubicube 700
Image source - (c) Ubiqaudiolab

The Ubiqaudiolab Ubicube 700 amplifier delivers 700 W of power into an 8-ohm nominal load. Its circuit design features a Class A input stage paired with a Class AB output stage that operates with an elevated quiescent current.

Specifications

  • Model name

    Ubicube 700

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    167 000

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    700

  • Output power (4Ω) (W)

    1200

  • Gain (dBu)

    27.75

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    500 000

  • Signal to Noise Ratio (dB)

    >110

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.01

  • Max power consumption (W)

    N/A

  • Damping factor

    >500

  • Dimensions (mm)

    432 × 432 × 420

  • Weight (kg)

    101

  • Official link

    https://ubiqaudiolab.com/amplifier-700
