Power amplifiers mono — Ubiqaudiolab Ubicube 200

Description, images, technical data and specifications

Ubiqaudiolab Ubicube 200

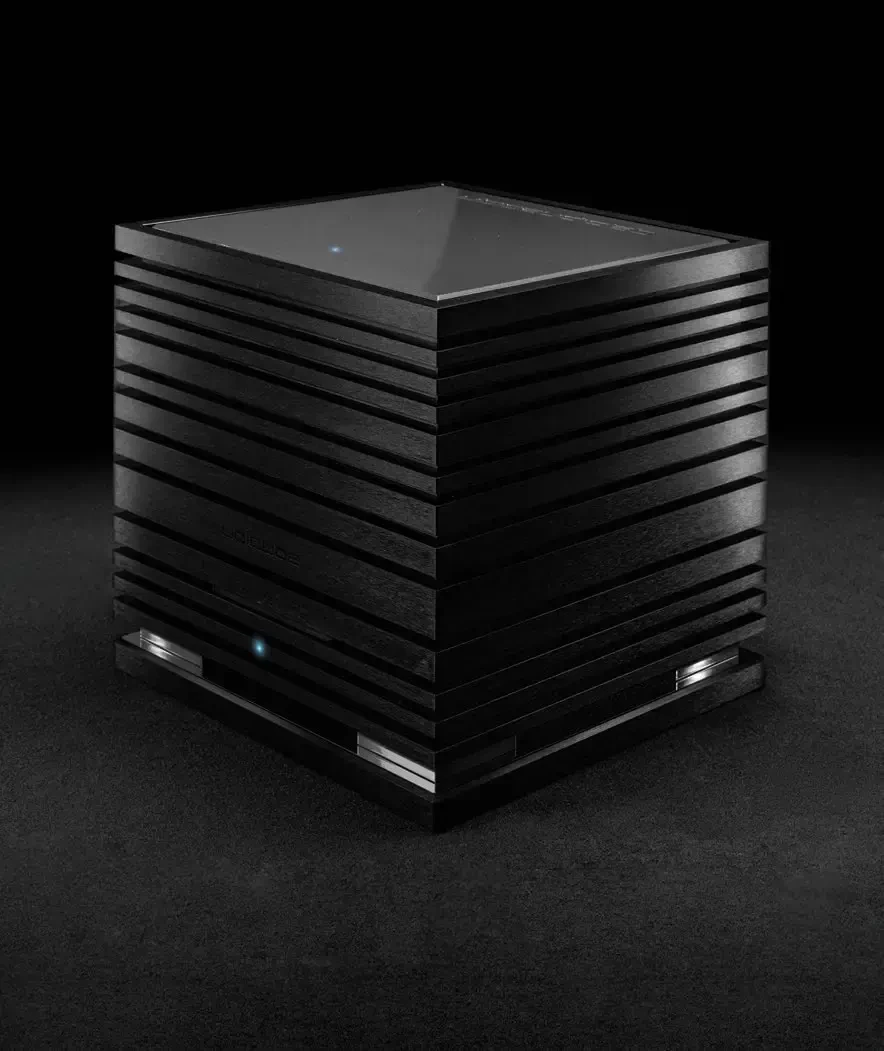

Image source - (c) Ubiqaudiolab

The Ubiqaudiolab Ubicube 400 is a Class A monophonic power amplifier featuring a dual-mono topology. It delivers 400 W into an 8-ohm load and is equipped with audiophile-grade power modules and an oversized power supply, ensuring detailed sound reproduction.

Specifications

  • Model name

    Ubicube 200

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    167 000

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    200

  • Output power (4Ω) (W)

    350

  • Gain (dBu)

    27.75

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    500 000

  • Signal to Noise Ratio (dB)

    >110

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.01

  • Max power consumption (W)

    N/A

  • Damping factor

    >500

  • Dimensions (mm)

    277 × 277 × 265

  • Weight (kg)

    28

  • Official link

    https://ubiqaudiolab.com/amplifier-400-200
