Power amplifiers mono — Luxman B-100C

Description, images, technical data and specifications

Luxman B-100C
Image source — © Luxman

The B-100C combines Class A and Class AB amplification technologies, making it possible to achieve high power output without excessive heat generation or power consumption.

Specifications

  • Model name

    B-100C

  • Input sensitivity (mV)

    1120

  • Input impedance (balanced) (Ω)

    55 000

  • Input impedance (single-ended) (Ω)

    51 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    125

  • Output power (4Ω) (W)

    250

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    1

  • Frequency response high +/- 3dB (Hz)

    180 000

  • Signal to Noise Ratio (dB)

    119

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.04% or less (20 Hz to 20 kHz / 8 Ω)

  • Max power consumption (W)

    320

  • Damping factor

    1,000 (1 kHz) / 2,300 (50 Hz)

  • Dimensions (mm)

    440 x 243 x 651

  • Weight (kg)

    61.5

  • Official link

    https://luxman.com/product/detail.php?id=60

Related content

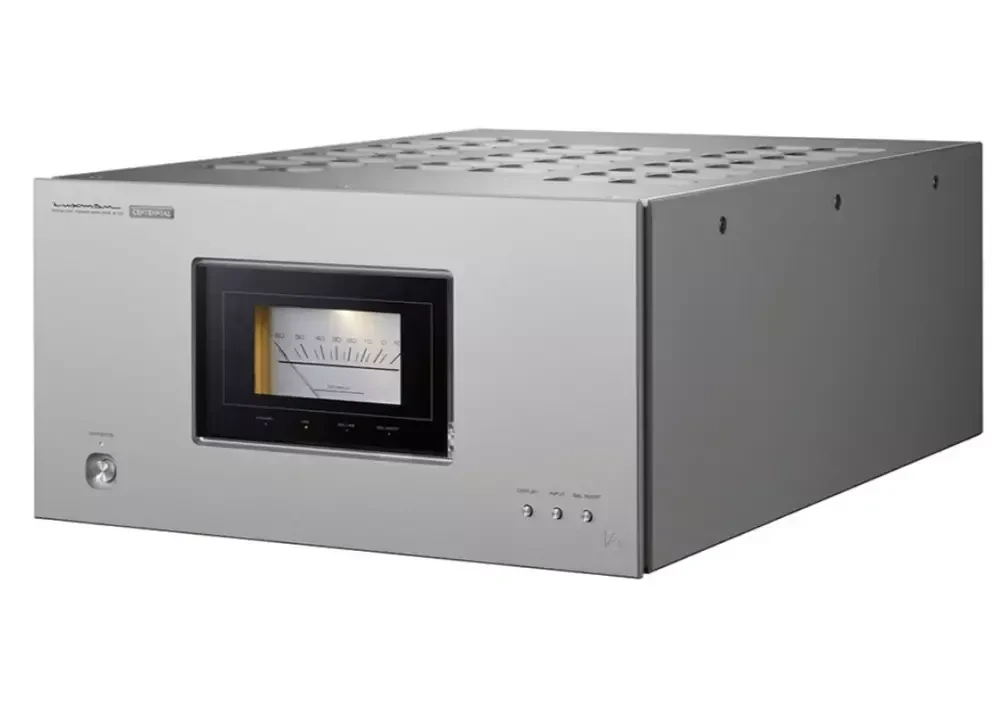

Luxman B-100 CENTENNIAL
